DSP56F803BU80E by:

16-BIT, 80MHz, OTHER DSP, PQFP100

Part Details for DSP56F803BU80E by NXP Semiconductors

Overview of DSP56F803BU80E by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for DSP56F803BU80E

Part # Distributor Description Stock Price Buy
DISTI # 51R8699
Newark Dsc, 16Bit, 56F803, 80Mhz, 100Lqfp, Product Range:56800E Series, Core Frequency:80Mhz, Flash Memory Size:64Kb, No. Of I/O's:16I/O's, Embedded Interface Type:Can, Sci, Spi, Core Supply Voltage:3.3V, Dsc Case Style:Lqfp, No. Of Rohs Compliant: Yes |Nxp DSP56F803BU80E Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 495
  • 1 $37.4200
  • 5 $33.7200
  • 10 $30.0100
  • 25 $28.5500
  • 50 $27.0900
  • 100 $25.6300
$25.6300 / $37.4200 Buy Now
DISTI # 98AC1227
Newark 16-Bit Dsc, 56800 Core, 64Kb Flash, 80Mhz, Qfp 100 Rohs Compliant: Yes |Nxp DSP56F803BU80E Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $22.9600
  • 100 $22.4800
  • 190 $21.8300
  • 450 $21.5100
  • 900 $21.0300
  • 4,500 $20.5500
  • 9,000 $19.9100
$19.9100 / $22.9600 Buy Now
DISTI # DSP56F803BU80E
Avnet Americas MCU 16-bit DSP56F8xx CISC 64KB Flash 3.3V 100-Pin LQFP Tray - Trays (Alt: DSP56F803BU80E) RoHS: Compliant Min Qty: 450 Package Multiple: 450 Lead time: 13 Weeks, 0 Days Container: Tray 0
RFQ
DISTI # DSP56F803BU80E
Avnet Americas MCU 16-bit DSP56F8xx CISC 64KB Flash 3.3V 100-Pin LQFP Tray - Trays (Alt: DSP56F803BU80E) RoHS: Compliant Min Qty: 450 Package Multiple: 450 Lead time: 13 Weeks, 0 Days Container: Tray 0
RFQ
DISTI # DSP56F803BU80E
Avnet Americas MCU 16-bit DSP56F8xx CISC 64KB Flash 3.3V 100-Pin LQFP Tray - Trays (Alt: DSP56F803BU80E) RoHS: Compliant Min Qty: 90 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 90 $22.9538
  • 100 $22.4722
  • 190 $21.8302
  • 450 $21.5091
  • 900 $21.0276
  • 4,500 $20.5461
  • 9,000 $19.9040
$19.9040 / $22.9538 Buy Now
DISTI # 51R8699
Avnet Americas MCU 16-bit DSP56F8xx CISC 64KB Flash 3.3V 100-Pin LQFP Tray - Bulk (Alt: 51R8699) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 32 Weeks, 4 Days Container: Bulk 0
  • 1 $36.6600
$36.6600 Buy Now
DISTI # DSP56F803BU80E
Avnet Silica MCU 16-bit DSP56F8xx CISC 64KB Flash 3.3V 100-Pin LQFP Tray (Alt: DSP56F803BU80E) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 15 Weeks, 0 Days Silica - 1710
Buy Now
DISTI # C1S537101885158
Chip1Stop 16-bit DSC, 56800 core, 64KB Flash, 80MHz, QFP 100 RoHS: Compliant pbFree: Yes Container: Tray 595
  • 1 $22.6000
  • 5 $20.3000
  • 10 $20.2000
  • 50 $19.2000
$19.2000 / $22.6000 Buy Now
DISTI # DSP56F803BU80E
EBV Elektronik MCU 16-bit DSP56F8xx CISC 64KB Flash 3.3V 100-Pin LQFP Tray (Alt: DSP56F803BU80E) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 15 Weeks, 0 Days EBV - 270
Buy Now
GlobX GmbH Full labels, from Distributor, Factory Sealed Date Code: 21+ 2800
RFQ
New Advantage Corporation 16-bit DSC, 56800 core, 64KB Flash, 80MHz, QFP 100 RoHS: Compliant Min Qty: 1 Package Multiple: 90 360
  • 90 $28.6700
  • 360 $26.7600
$26.7600 / $28.6700 Buy Now

Part Details for DSP56F803BU80E

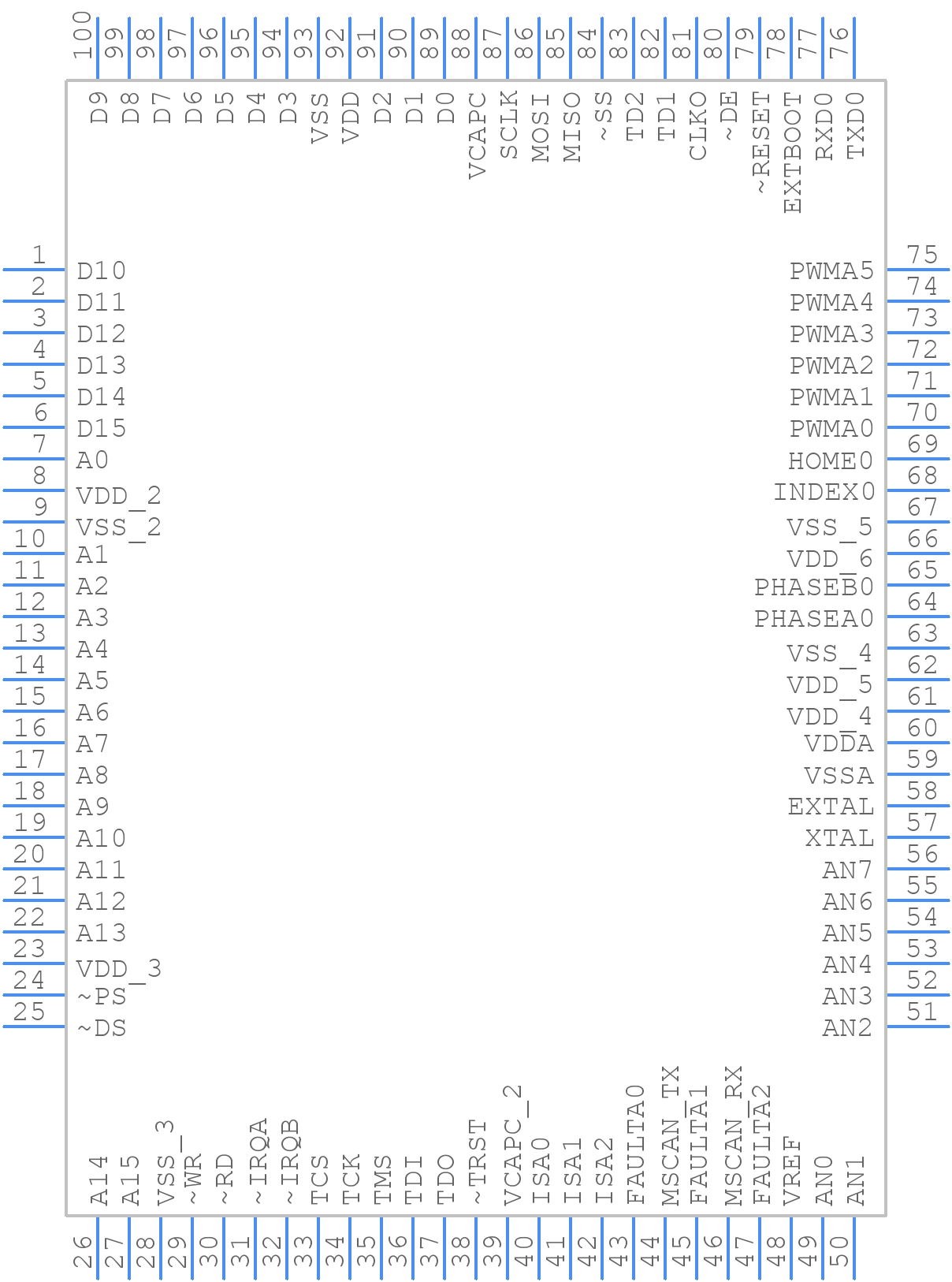

DSP56F803BU80E CAD Models

DSP56F803BU80E Part Data Attributes

DSP56F803BU80E NXP Semiconductors
Buy Now Datasheet
Compare Parts:
DSP56F803BU80E NXP Semiconductors 16-BIT, 80MHz, OTHER DSP, PQFP100
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer NXP SEMICONDUCTORS
Package Description ROHS COMPLIANT, PLASTIC, LQFP-100
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer NXP
Address Bus Width 16
Barrel Shifter YES
Bit Size 16
Boundary Scan YES
Clock Frequency-Max 80 MHz
External Data Bus Width 16
Format FIXED POINT
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 14 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of Terminals 100
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (words) 2048
Seated Height-Max 1.6 mm
Supply Current-Max 152 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 14 mm
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, CONTROLLER
