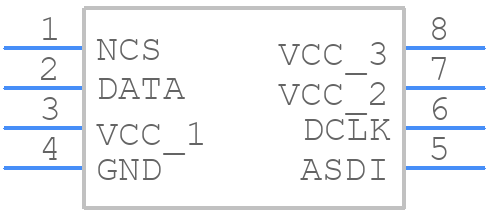

Part Symbol
-

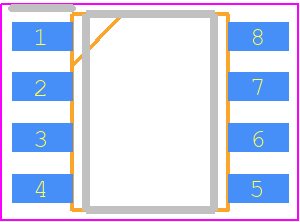

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EPCS16SI8N by Intel Corporation
Results Overview of EPCS16SI8N by Intel Corporation
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Computing and Data Storage
Energy and Power Systems
Robotics and Drones
EPCS16SI8N Information
EPCS16SI8N by Intel Corporation is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Part Details for EPCS16SI8N
EPCS16SI8N CAD Models
EPCS16SI8N Part Data Attributes
|
|
EPCS16SI8N
Intel Corporation
Buy Now
Datasheet
|
Compare Parts:
EPCS16SI8N
Intel Corporation
Configuration Memory, 16MX1, Serial, CMOS, PDSO8, LEAD FREE, PLASTIC, SOIC-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INTEL CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | Intel | |
| Clock Frequency-Max (fCLK) | 40 MHz | |
| Endurance | 100000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Memory Density | 16777216 bit | |
| Memory IC Type | CONFIGURATION MEMORY | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 2097152 words | |
| Number of Words Code | 2000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 2MX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Standby Current-Max | 0.00005 A | |
| Supply Current-Max | 0.015 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 20 |
Alternate Parts for EPCS16SI8N
This table gives cross-reference parts and alternative options found for EPCS16SI8N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of EPCS16SI8N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISO7840DWR | Texas Instruments | $3.7552 | Highest isolation rating, quad-channel, 4/0, reinforced digital isolator 16-SOIC -55 to 125 | EPCS16SI8N vs ISO7840DWR |
EPCS16SI8N Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the EPCS16SI8N is -40°C to 85°C.
-
To ensure data integrity, use the WP# (Write Protect) pin to prevent writes during power-down or power-up cycles. Additionally, use the HLD (Hold) pin to prevent writes during power-down or power-up cycles.
-
The EPCS16SI8N supports a maximum clock frequency of 66 MHz.
-
During power-down or power-up cycles, ensure that the HOLD# and WP# pins are driven high to prevent unwanted writes or data corruption.
-
The RDY/BUSY# pin indicates the status of the device. When low, it indicates that the device is busy or in a programming cycle. When high, it indicates that the device is ready for the next operation.
