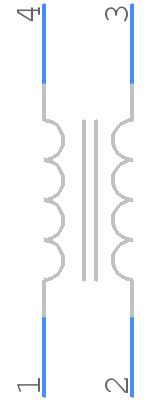

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for EXC14CE900U by Panasonic Electronic Components
Results Overview of EXC14CE900U by Panasonic Electronic Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
EXC14CE900U Information
EXC14CE900U by Panasonic Electronic Components is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Part Details for EXC14CE900U
EXC14CE900U CAD Models
EXC14CE900U Part Data Attributes
|
|
EXC14CE900U
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
EXC14CE900U
Panasonic Electronic Components
Data Line Filter, 2 Function(s), 5V, 0.13A, HALOGEN AND ANTIMONY FREE, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0302, 4 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| DC Resistance-Max | 2.5 Ω | |
| Filter Type | DATA LINE FILTER | |
| Height | 0.45 mm | |
| Length | 0.85 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Functions | 2 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Impedance | 90 OHM Ω | |
| Packing Method | TAPE AND REEL | |
| Rated Current | 0.13 A | |
| Rated Voltage | 5 V | |
| Width | 0.65 mm |
