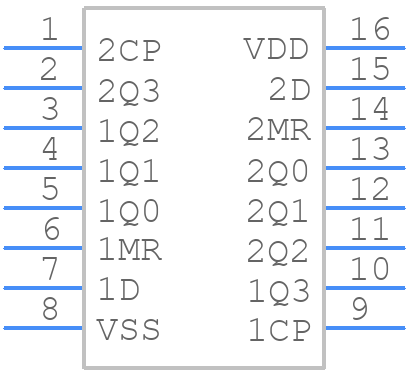

Part Symbol
-

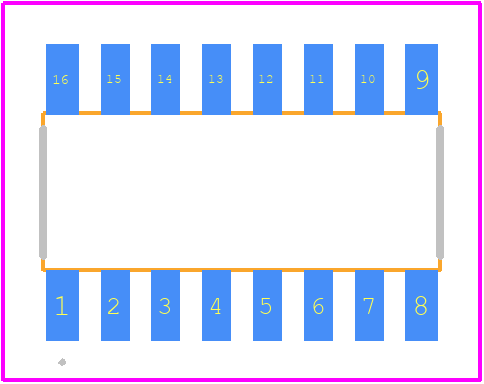

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HEF4015BT,653 by Nexperia
Overview of HEF4015BT,653 by Nexperia
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (10 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Price & Stock for HEF4015BT,653
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AK0044
|
Newark | Ic, Gate Rohs Compliant: Yes |Nexperia HEF4015BT,653 Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1770 / $0.2300 | Buy Now |
|
DISTI #
1727-2147-1-ND
|
DigiKey | IC STATIC SHIFT REG 4BIT 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1839 In Stock |
|
$0.1432 / $0.6100 | Buy Now |
|
DISTI #
HEF4015BT,653
|
Avnet Americas | Shift Register Dual 4-Bit Serial to Parallel 16-Pin SO T/R - Tape and Reel (Alt: HEF4015BT,653) RoHS: Not Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.1278 / $0.1526 | Buy Now |
|
DISTI #
771-HEF4015BTD-T
|
Mouser Electronics | Counter Shift Registers HEF4015BT/SOT109/SO16 RoHS: Compliant | 10153 |
|
$0.1430 / $0.4200 | Buy Now |
|
DISTI #
E02:0323_00160691
|
Arrow Electronics | Shift Register Dual 4-Bit Serial to Parallel 16-Pin SO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks Date Code: 2242 | Europe - 572500 |
|
$0.1438 | Buy Now |
|
DISTI #
P40:2555_23989949
|
Arrow Electronics | Shift Register Dual 4-Bit Serial to Parallel 16-Pin SO T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2226 | Europe - 147000 |
|
$0.1942 / $0.3675 | Buy Now |
|
DISTI #
V72:2272_06528246
|
Arrow Electronics | Shift Register Dual 4-Bit Serial to Parallel 16-Pin SO T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2241 Container: Cut Strips | Americas - 20 |
|
$0.1526 / $0.2513 | Buy Now |
|
|
Rochester Electronics | HEF4015BT - Serial In Parallel Out RoHS: Compliant Status: Active Min Qty: 1 | 93 |
|
$0.1266 / $0.1489 | Buy Now |
|
DISTI #
HEF4015BT,653
|
Avnet Americas | Shift Register Dual 4-Bit Serial to Parallel 16-Pin SO T/R - Tape and Reel (Alt: HEF4015BT,653) RoHS: Not Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.1278 / $0.1526 | Buy Now |
|
DISTI #
HEF4015BT.653
|
TME | IC: digital, 4bit,static shift register, Ch: 2, CMOS, SMD, SO16 Min Qty: 1 | 1136 |
|
$0.1970 / $0.5310 | Buy Now |
Part Details for HEF4015BT,653
HEF4015BT,653 CAD Models
HEF4015BT,653 Part Data Attributes:
|
|
HEF4015BT,653
Nexperia
Buy Now
Datasheet
|
Compare Parts:
HEF4015BT,653
Nexperia
HEF4015B - Dual 4-bit static shift register@en-us SOP 16-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOP | |
| Package Description | PLASTIC, SO-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | SOT109-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Date Of Intro | 1995-01-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | INDIVIDUAL CLOCK & CLEAR FOR EACH SHIFT REGISTER | |
| Count Direction | RIGHT | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | SERIAL IN PARALLEL OUT | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 13 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 260 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 15 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 3.9 mm | |
| fmax-Min | 7 MHz |
Alternate Parts for HEF4015BT,653
This table gives cross-reference parts and alternative options found for HEF4015BT,653. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HEF4015BT,653, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| CD4015BNSRE4 | 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, SOP-16 | Texas Instruments | HEF4015BT,653 vs CD4015BNSRE4 |
| MC14015BD | Serial In Parallel Out, 4000/14000/40000 Series, 4-Bit, Right Direction, True Output, CMOS, PDSO16, PLASTIC, SOIC-16 | Rochester Electronics LLC | HEF4015BT,653 vs MC14015BD |
| CD4015BMTG4 | 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | Texas Instruments | HEF4015BT,653 vs CD4015BMTG4 |
| HEF4015BTD | IC 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, PLASTIC, SO-16, Shift Register | NXP Semiconductors | HEF4015BT,653 vs HEF4015BTD |
| MC14015BD | 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, PLASTIC, SOIC-16 | onsemi | HEF4015BT,653 vs MC14015BD |
| CD4015BCM | Serial In Parallel Out, 4000/14000/40000 Series, 4-Bit, Right Direction, True Output, CMOS, PDSO16, 0.150 INCH, MS-012, SOIC-16 | Fairchild Semiconductor Corporation | HEF4015BT,653 vs CD4015BCM |
| 933372680652 | IC 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, PLASTIC, SOT-109-1, SO-16, Shift Register | NXP Semiconductors | HEF4015BT,653 vs 933372680652 |
| CD4015BMG4 | 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | Texas Instruments | HEF4015BT,653 vs CD4015BMG4 |
| CD4015BNSRG4 | 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, SOP-16 | Texas Instruments | HEF4015BT,653 vs CD4015BNSRG4 |
| CD4015BMTE4 | 4000/14000/40000 SERIES, 4-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | Texas Instruments | HEF4015BT,653 vs CD4015BMTE4 |
