Part Details for L293DD013TR by STMicroelectronics
Results Overview of L293DD013TR by STMicroelectronics
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
L293DD013TR Information
L293DD013TR by STMicroelectronics is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for L293DD013TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18AC7424
|
Newark | Motor Driver, Dc, Stepper, 0.6A, Soic-20, Ic Type:Motor Driver, Motor Type:Brushed Dc, Stepper, No. Of Outputs:4Outputs, Output Current:600Ma, Output Voltage:-, Ic Case/Package:Soic, No. Of Pins:20Pins, Supply Voltage Min:4.5V Rohs Compliant: Yes |Stmicroelectronics L293DD013TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1050 |
|
$5.0300 / $8.6500 | Buy Now |
|
DISTI #
497-2937-1-ND
|
DigiKey | IC MTR DRV BIPOLR 4.5-36V 20SOIC Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8161 In Stock |
|
$4.9099 / $8.4000 | Buy Now |
|
DISTI #
18AC7424
|
Avnet Americas | Motor Driver/Controller, Push Pull, TTL Logic, 4 Outputs, 4.5 V to 36 V Supply, 600 mA Out, SOIC-20 - Product that comes on tape, but is not reeled (Alt: 18AC7424) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 1050 Partner Stock |
|
$5.1400 / $8.4000 | Buy Now |
|
DISTI #
L293DD013TR
|
Avnet Americas | Motor Driver/Controller, Push Pull, TTL Logic, 4 Outputs, 4.5 V to 36 V Supply, 600 mA Out, SOIC-20 - Tape and Reel (Alt: L293DD013TR) COO: Malaysia RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$4.2246 | Buy Now |
|
DISTI #
511-L293DD-TR
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers Push-Pull 4-Channel RoHS: Compliant | 3587 |
|
$4.9300 / $8.4000 | Buy Now |
|
|
STMicroelectronics | Dual Full Bridges with Diodes and Thermal Protection COO: Singapore RoHS: Compliant Min Qty: 1 | 3587 |
|
$5.0400 / $8.2300 | Buy Now |
|
|
Future Electronics | L293DD Series High Voltage Push - Pull Four Channel Driver with Diodes - SOIC-20 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$4.0700 | Buy Now |
|
DISTI #
87768368
|
Verical | Dual Half Bridge Motor Driver 24V 20-Pin SO T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2432 | Americas - 4000 |
|
$4.0356 / $4.8541 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 534 |
|
$2.9389 / $7.1680 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 31 |
|
$3.5840 / $7.1680 | Buy Now |
US Tariff Estimator: L293DD013TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for L293DD013TR
L293DD013TR CAD Models
-

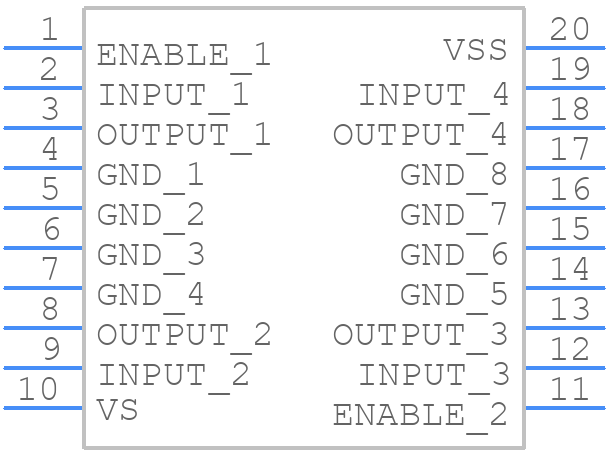

Part Symbol
-

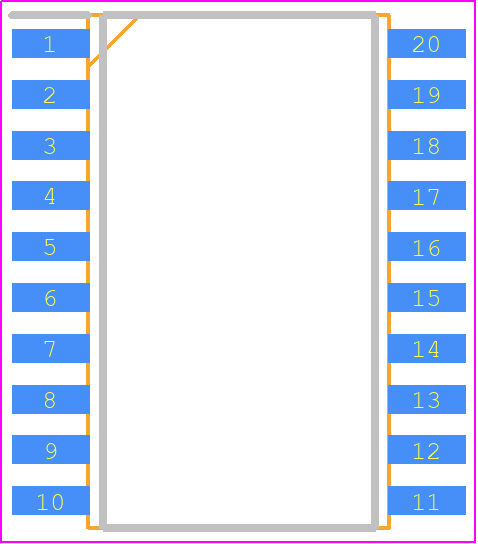

Footprint
-

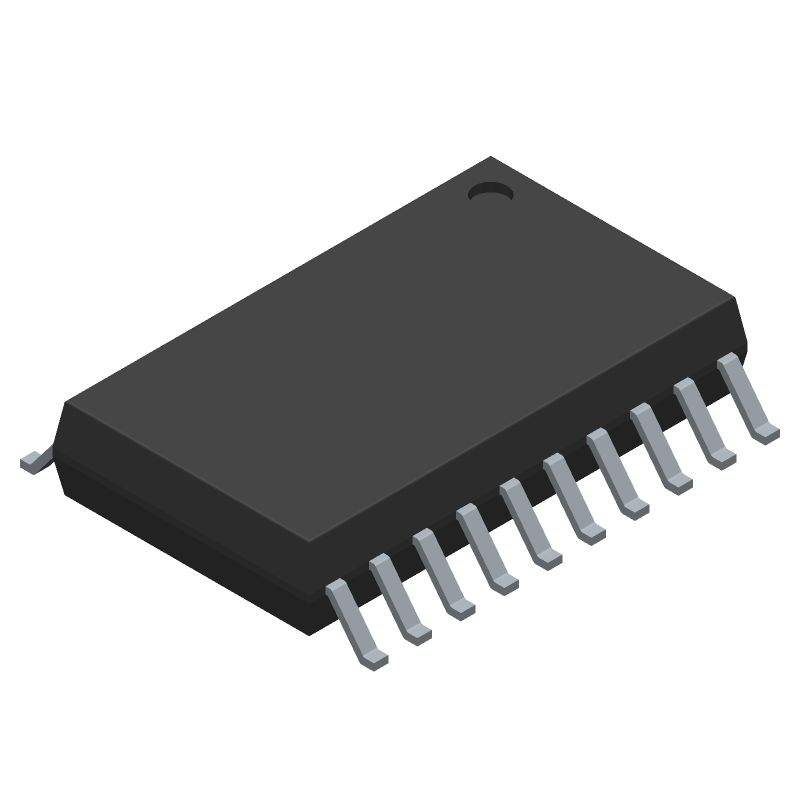

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
L293DD013TR Part Data Attributes
|
|
L293DD013TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L293DD013TR
STMicroelectronics
Buffer/Inverter Based Peripheral Driver, 1.2A, PDSO20
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, | |
| Pin Count | 20 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Built-in Protections | Thermal | |
| Input Characteristics | Standard | |
| Interface IC Type | Buffer Or Inverter Based Peripheral Driver | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 12.8 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 2 | |
| Number of Terminals | 20 | |
| Output Characteristics | 3-State | |
| Output Current Flow Direction | Source And Sink | |
| Output Peak Current Limit-Nom | 1.2 A | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 250 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 Mm | |
| Supply Voltage-Max | 36 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 36 V | |
| Supply Voltage1-Min | 4.5 V | |
| Supply Voltage1-Nom | 24 V | |
| Surface Mount | Yes | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 Mm |
Alternate Parts for L293DD013TR
This table gives cross-reference parts and alternative options found for L293DD013TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of L293DD013TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| L293DNE | Texas Instruments | $3.5074 | Half Bridge Based Peripheral Driver, 4 Driver, 1.2A, BIPolar, PDIP16 | L293DD013TR vs L293DNE |
| L293DSP883C | Texas Instruments | Check for Price | Half Bridge Based Peripheral Driver, 1.2A, BIPolar, CDIP16 | L293DD013TR vs L293DSP883C |
| L293NEE4 | Texas Instruments | Check for Price | Half Bridge Based Peripheral Driver, 4 Driver, 2A, BIPolar, PDIP16 | L293DD013TR vs L293NEE4 |
| L293DSP883B | Texas Instruments | Check for Price | Half Bridge Based Peripheral Driver, 1.2A, BIPolar, CDIP16 | L293DD013TR vs L293DSP883B |
| L293NG4 | Texas Instruments | Check for Price | Half Bridge Based Peripheral Driver, 2A, BIPolar, PDIP16 | L293DD013TR vs L293NG4 |
| L293NE-10 | Texas Instruments | Check for Price | Buffer/Inverter Based Peripheral Driver, 2A, BIPolar, PDIP16 | L293DD013TR vs L293NE-10 |
| L293DWPG4 | Texas Instruments | Check for Price | Half Bridge Based Peripheral Driver, 1.2A, BIPolar, PDSO28 | L293DD013TR vs L293DWPG4 |
| L293N | Texas Instruments | Check for Price | Half Bridge Based Peripheral Driver, 2A, BIPolar, PDIP16 | L293DD013TR vs L293N |
| L293SP | Texas Instruments | Check for Price | Full Bridge Based Peripheral Driver, 2A, BIPolar, CDIP16 | L293DD013TR vs L293SP |
| L293DDWP | Texas Instruments | Check for Price | Half Bridge Based Peripheral Driver, 1.2A, BIPolar, PDSO28 | L293DD013TR vs L293DDWP |
L293DD013TR Frequently Asked Questions (FAQ)
-
The maximum voltage that can be applied to the input pins is 7V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
To protect the device from back-EMF, it is recommended to use a flyback diode (also known as a freewheeling diode) in parallel with the inductive load. This diode allows the current to continue flowing when the switch is turned off, preventing the voltage from spiking and damaging the device.
-
The maximum current that the L293DD013TR can handle is 1A per channel, with a peak current of 2A. However, it's recommended to derate the current based on the ambient temperature and the thermal resistance of the device.
-
To ensure proper thermal management, it's recommended to provide a heat sink or a thermal pad to dissipate the heat generated by the device. The thermal resistance of the device should be minimized by using a thermal interface material and ensuring good contact between the device and the heat sink.
-
The enable pins (EN1 and EN2) are used to enable or disable the respective half-bridge drivers. When the enable pin is low, the corresponding half-bridge driver is disabled, and the output pins are in a high-impedance state.
