Part Details for L4975A by STMicroelectronics
Results Overview of L4975A by STMicroelectronics
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
L4975A Information
L4975A by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for L4975A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26M0511
|
Newark | Dc/Dc Conv, Buck, 500Khz, 150Deg C, Output Type:Adjustable, No. Of Outputs:1Outputs, Topology:Buck (Step Down), Input Voltage Min:15V, Input Voltage Max:50V, Max Output Current:5A, Ic Case/Package:Multiwatt15, No. Of Pins:15Pins Rohs Compliant: Yes |Stmicroelectronics L4975A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
STMicroelectronics | 5 A switching regulator COO: Morocco RoHS: Compliant Min Qty: 1 | 0 |
|
$11.4400 / $16.5600 | Buy Now |
|
|
ComSIT USA | 5A SWITCHING REGULATOR Switching Regulator, Voltage-mode, 7.5A, 500kHz Switching Freq-Max, BCDMOS, PZFM15 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 149 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 4257 |
|
RFQ |
US Tariff Estimator: L4975A by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for L4975A
L4975A CAD Models
-

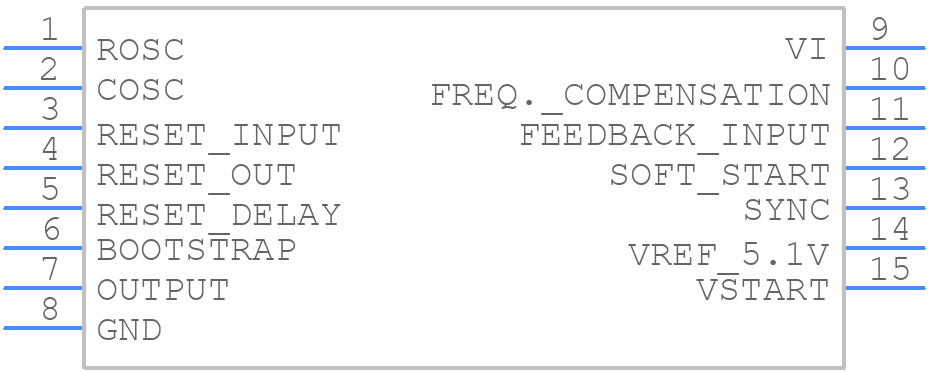

Part Symbol
-

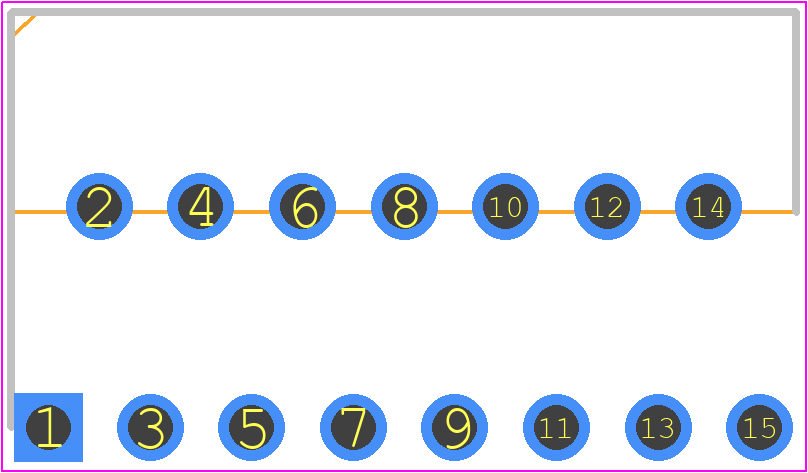

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
L4975A Part Data Attributes
|
|
L4975A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L4975A
STMicroelectronics
Switching Regulator, Voltage-mode, 7.5A, 500kHz Switching Freq-Max, BCDMOS, PZFM15
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | ZFM | |
| Package Description | Zip, Zip15,.2,.17tb | |
| Pin Count | 15 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Voltage-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 50 V | |
| Input Voltage-Min | 15 V | |
| Input Voltage-Nom | 35 V | |
| JESD-30 Code | R-PZFM-T15 | |
| JESD-609 Code | e3 | |
| Length | 19.6 Mm | |
| Number of Functions | 1 | |
| Number of Terminals | 15 | |
| Output Current-Max | 7.5 A | |
| Output Voltage-Nom | 5.1 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | ZIP | |
| Package Equivalence Code | ZIP15,.2,.17TB | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 20.65 Mm | |
| Surface Mount | No | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 500 Khz | |
| Technology | Bcdmos | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Zig-Zag | |
| Width | 5 Mm |
Alternate Parts for L4975A
This table gives cross-reference parts and alternative options found for L4975A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of L4975A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PRM48BF480T400A00 | Vicor Corporation | Check for Price | Switching Regulator, Voltage-mode, 8.33A, 1000kHz Switching Freq-Max | L4975A vs PRM48BF480T400A00 |
L4975A Frequently Asked Questions (FAQ)
-
The L4975A can handle input voltages up to 40V, but it's recommended to keep it below 35V for reliable operation.
-
Choose an output capacitor with a low ESR (Equivalent Series Resistance) and a capacitance value between 10uF to 100uF. A 22uF capacitor is a good starting point.
-
The L4975A can operate with input voltages as low as 7V, but the output voltage regulation may not be guaranteed below 8V.
-
The L4975A is rated for operation up to 150°C, but it's recommended to derate the output current and input voltage to ensure reliable operation above 125°C.
-
The output voltage of the L4975A is determined by the resistor divider network between the output and the ADJ pin. Use the formula: Vout = 2.5V x (1 + R1/R2) to calculate the output voltage.
