L6202 Information
L6202 by STMicroelectronics is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for L6202
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26M0513
|
Newark | Full Bridge Driver Dmos, 6202, Dip, Motor Type:Full Bridge, No. Of Outputs:2Outputs, Output Current:1.5A, Output Voltage:60V, Driver Case Style:Dip, No. Of Pins:18Pins, Supply Voltage Min:12V, Supply Voltage Max:48V, Operating Rohs Compliant: Yes |Stmicroelectronics L6202 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
70013555
|
RS | DRIVER, 36 V (TYP.), SO20, PCB MOUNT, 2 MA, 0.8 V (MAX.), 7 V (MAX.), 1.3 W Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$12.8300 / $15.0900 | RFQ |
|
|
STMicroelectronics | DMOS Full Bridge Driver COO: Malaysia RoHS: Compliant Min Qty: 1 | 0 |
|
$5.7100 / $8.7600 | Buy Now |
|
|
Bristol Electronics | 53 |
|
RFQ | ||
|
|
Bristol Electronics | 40 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 1 | 2 |
|
$6.7200 | Buy Now |
|
|
Quest Components | Part Number Only | 4 |
|
$11.7810 / $12.6225 | Buy Now |
|
|
Quest Components | Part Number Only | 1 |
|
$6.0000 / $9.0000 | Buy Now |
|
|
Greenchips | Date Code: N/A | 44 |
|
RFQ |
US Tariff Estimator: L6202 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for L6202
L6202 CAD Models
-

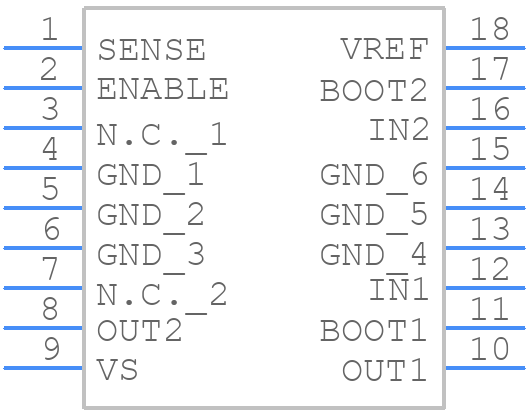

Part Symbol
-

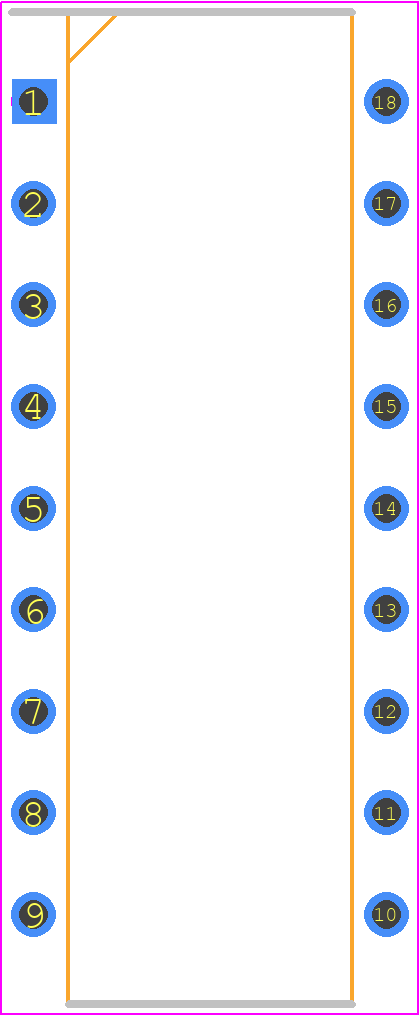

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
L6202 Part Data Attributes
|
|
L6202
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L6202
STMicroelectronics
Full Bridge Based Peripheral Driver, 5A, BCDMOS, PDIP18
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | DIP | |
| Package Description | Dip, Dip18,.3 | |
| Pin Count | 18 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Built-in Protections | Thermal | |
| Input Characteristics | Standard | |
| Interface IC Type | Full Bridge Based Peripheral Driver | |
| JESD-30 Code | R-PDIP-T18 | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 18 | |
| Output Characteristics | Totem-Pole | |
| Output Current Flow Direction | Source And Sink | |
| Output Peak Current Limit-Nom | 5 A | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP18,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.1 Mm | |
| Supply Voltage-Max | 48 V | |
| Supply Voltage-Min | 12 V | |
| Supply Voltage-Nom | 36 V | |
| Surface Mount | No | |
| Technology | Bcdmos | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Width | 7.62 Mm |
Alternate Parts for L6202
This table gives cross-reference parts and alternative options found for L6202. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of L6202, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| L6203 | STMicroelectronics | $4.0888 | Full Bridge Based Peripheral Driver, BCDMOS | L6202 vs L6203 |
| L6201013TR | STMicroelectronics | $4.8042 | Full Bridge Based Peripheral Driver, 0.002A, BCDMOS, PDSO20 | L6202 vs L6201013TR |
| L6201 | STMicroelectronics | $6.1609 | Full Bridge Based Peripheral Driver, 5A, BCDMOS, PDSO20 | L6202 vs L6201 |
L6202 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the L6202 is 200 kHz, but it can be operated at higher frequencies with reduced performance.
-
The sense resistor value depends on the desired current sensing accuracy and the maximum current of your application. A smaller sense resistor value provides better accuracy but increases power loss. A good starting point is to choose a sense resistor value that provides a voltage drop of around 0.5-1V at the maximum current.
-
The bootstrap capacitor (CB) is used to generate the high-side gate drive voltage for the power MOSFET. It is charged through the bootstrap diode (DB) when the low-side MOSFET is on, and discharges when the high-side MOSFET is on, providing the necessary voltage to drive the high-side MOSFET.
-
The L6202 has built-in overcurrent protection, but it's still important to add external protection mechanisms such as fuses or PTC resistors to prevent damage from excessive currents. Additionally, ensure good thermal design and heat sinking to prevent overheating.
-
Yes, the L6202 can be used in a synchronous rectification configuration, where the low-side MOSFET is used as a synchronous rectifier. This can improve efficiency and reduce power loss.
