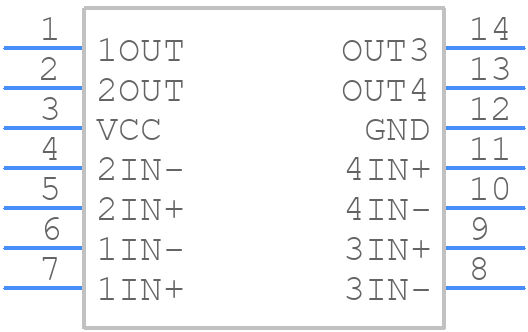

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM339APW by Texas Instruments
Overview of LM339APW by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (9 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for LM339APW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH3324
|
Newark | Comparator, Differential, Quad, Tssop-14, Comparator Type:Differential, No. Of Comparators:4 Comparators, Response Time:1.3Μs, Supply Voltage Range:2V To 36V, ± 1V To ± 18V, Comparator Case Style:Tssop, No. Of Pins:14Pins, Ic Output Rohs Compliant: Yes |TEXAS INSTRUMENTS LM339APW Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$1.0000 / $1.4100 | Buy Now |
|
DISTI #
296-26099-5-ND
|
DigiKey | IC COMPARATOR 4 DIFF 14TSSOP Min Qty: 1 Lead time: 20 Weeks Container: Tube | Limited Supply - Call |
|
$0.4272 / $1.0600 | Buy Now |
|
DISTI #
595-LM339APW
|
Mouser Electronics | Analog Comparators Quad Differential Comparator RoHS: Compliant | 5741 |
|
$0.4180 / $1.0600 | Buy Now |
|
DISTI #
V99:2348_07274683
|
Arrow Electronics | Comparator Quad R-R O/P ±15V/30V 14-Pin TSSOP Tube Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2228 | Americas - 16 |
|
$0.4045 / $0.6522 | Buy Now |
|
DISTI #
63329055
|
Verical | Comparator Quad R-R O/P ±15V/30V 14-Pin TSSOP Tube Min Qty: 15 Package Multiple: 1 Date Code: 2228 | Americas - 16 |
|
$0.4045 / $0.6058 | Buy Now |
|
|
Bristol Electronics | 102 |
|
RFQ | ||
|
|
Rochester Electronics | LM339A Precision quad differential comparator, commercial grade RoHS: Compliant Status: Active Min Qty: 1 | 180 |
|
$0.3942 / $0.4638 | Buy Now |
|
|
Ameya Holding Limited | LM339APW 4通道 比较器, CMOS, MOS, TTL输出, 1.3μs, 多种电源电压适用, 14引脚 TSSOP封装 | 95117 |
|
RFQ | |
|
DISTI #
3005527
|
element14 Asia-Pacific | RoHS: Compliant Min Qty: 1 Container: Each | 0 |
|
$1.0492 / $1.0862 | Buy Now |
|
DISTI #
3005527
|
Farnell | RoHS: Compliant Min Qty: 1 Container: Each | 0 |
|
$1.0354 / $1.7319 | Buy Now |
Part Details for LM339APW
LM339APW CAD Models
LM339APW Part Data Attributes:
|
|
LM339APW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM339APW
Texas Instruments
Precision quad differential comparator, commercial grade 14-TSSOP 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | COMPARATOR | |
| Average Bias Current-Max (IIB) | 0.4 µA | |
| Bias Current-Max (IIB) @25C | 0.05 µA | |
| Input Offset Voltage-Max | 3000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Type | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Response Time-Nom | 1300 ns | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 2 mA | |
| Supply Voltage Limit-Max | 36 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
