LM358QT by: STMicroelectronics

Low-power dual op-amps with low input bias current

Part Details for LM358QT by STMicroelectronics

Overview of LM358QT by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for LM358QT

Part # Distributor Description Stock Price Buy
DISTI # 497-12007-1-ND
DigiKey IC OPAMP GP 2 CIRCUIT 8DFN Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 103830
In Stock
  • 1 $0.4800
  • 10 $0.4130
  • 25 $0.3852
  • 100 $0.3083
  • 250 $0.2862
  • 500 $0.2422
  • 1,000 $0.1872
  • 3,000 $0.1706
  • 6,000 $0.1596
  • 15,000 $0.1486
  • 30,000 $0.1409
$0.1409 / $0.4800 Buy Now
DISTI # LM358QT
Avnet Americas OP Amp Dual GP ±15V/30V 8-Pin DFN EP T/R - Tape and Reel (Alt: LM358QT) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 6,000 $0.1360
$0.1360 Buy Now
DISTI # 511-LM358QT
Mouser Electronics Operational Amplifiers - Op Amps Low Power DUAL OP 100 dB 1.1MHz 20nA RoHS: Compliant 37848
  • 1 $0.4200
  • 10 $0.3370
  • 100 $0.2600
  • 500 $0.2210
  • 1,000 $0.1760
  • 3,000 $0.1540
  • 6,000 $0.1510
  • 9,000 $0.1430
  • 24,000 $0.1380
$0.1380 / $0.4200 Buy Now
STMicroelectronics Low-power dual op-amps with low input bias current RoHS: Compliant Min Qty: 1 37848
  • 1 $0.4100
  • 10 $0.3300
  • 100 $0.2600
  • 500 $0.2200
$0.2200 / $0.4100 Buy Now
Future Electronics LM358 Series 30 V 1.1 MHz Low Power Dual Operational Amplifier - DFN-8 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Container: Reel 42000
Reel
  • 3,000 $0.1460
  • 9,000 $0.1420
  • 12,000 $0.1410
  • 30,000 $0.1380
  • 45,000 $0.1340
$0.1340 / $0.1460 Buy Now
Future Electronics LM358 Series 30 V 1.1 MHz Low Power Dual Operational Amplifier - DFN-8 RoHS: Compliant pbFree: Yes Min Qty: 12000 Package Multiple: 3000 Container: Reel 0
Reel
  • 3,000 $0.1440
  • 6,000 $0.1410
  • 9,000 $0.1390
  • 12,000 $0.1380
  • 15,000 $0.1340
$0.1340 / $0.1440 Buy Now
Future Electronics LM358 Series 30 V 1.1 MHz Low Power Dual Operational Amplifier - DFN-8 RoHS: Compliant pbFree: Yes Min Qty: 12000 Package Multiple: 3000 Container: Reel 0
Reel
  • 3,000 $0.1440
  • 6,000 $0.1410
  • 9,000 $0.1390
  • 12,000 $0.1380
  • 15,000 $0.1340
$0.1340 / $0.1440 Buy Now
Future Electronics LM358 Series 30 V 1.1 MHz Low Power Dual Operational Amplifier - DFN-8 RoHS: Compliant pbFree: Yes Min Qty: 12000 Package Multiple: 3000 Container: Reel 0
Reel
  • 3,000 $0.1460
  • 9,000 $0.1420
  • 12,000 $0.1410
  • 30,000 $0.1380
  • 45,000 $0.1340
$0.1340 / $0.1460 Buy Now
Quest Components   152
  • 1 $0.5060
  • 11 $0.4048
  • 50 $0.3036
$0.3036 / $0.5060 Buy Now
DISTI # LM358QT
Avnet Americas OP Amp Dual GP ±15V/30V 8-Pin DFN EP T/R - Tape and Reel (Alt: LM358QT) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 6,000 $0.1360
$0.1360 Buy Now
DISTI # LM358QT
Avnet Americas OP Amp Dual GP ±15V/30V 8-Pin DFN EP T/R - Tape and Reel (Alt: LM358QT) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 6,000 $0.1360
$0.1360 Buy Now
ComSIT USA LOW POWER DUAL OPERATIONAL AMPLIFIER Operational Amplifier, 2 Func, 9000uV Offset-Max, BIPolar, PDSO8 RoHS: Compliant Europe - 300000
RFQ
DISTI # LM358QT
Avnet Silica OP Amp Dual GP �15V/30V 8-Pin DFN EP T/R (Alt: LM358QT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 1 Weeks, 4 Days Silica - 99000
Buy Now
CHIPMALL.COM LIMITED IC OPAMP GP 2 CIRCUIT 8DFN 540
  • 10 $0.1796
  • 100 $0.1444
  • 250 $0.1294
  • 500 $0.1105
  • 3,000 $0.1022
$0.1022 / $0.1796 Buy Now
DISTI # LM358QT
EBV Elektronik OP Amp Dual GP �15V/30V 8-Pin DFN EP T/R (Alt: LM358QT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 1 Weeks, 4 Days EBV - 18000
Buy Now

Part Details for LM358QT

LM358QT CAD Models

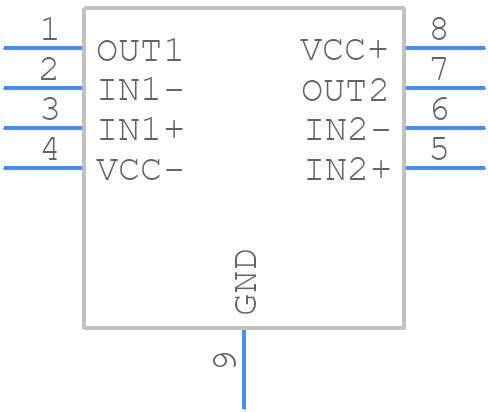

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM358QT Part Data Attributes

Parametric Data
LM358QT STMicroelectronics
Buy Now Datasheet
Compare Parts:
LM358QT STMicroelectronics Low-power dual op-amps with low input bias current
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code DFN
Package Description DFN-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 10 Weeks
Samacsys Manufacturer STMicroelectronics
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.2 µA
Bias Current-Max (IIB) @25C 0.15 µA
Common-mode Reject Ratio-Nom 60 dB
Frequency Compensation YES
Input Offset Voltage-Max 9000 µV
JESD-30 Code S-PDSO-N8
JESD-609 Code e3
Length 2 mm
Low-Offset NO
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 70 °C
Operating Temperature-Min
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC8,.08,20
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 0.6 mm
Slew Rate-Min 0.3 V/us
Slew Rate-Nom 0.6 V/us
Supply Current-Max 2 mA
Supply Voltage Limit-Max 32 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 1100
Voltage Gain-Min 25000
Width 2 mm

Alternate Parts for LM358QT

This table gives cross-reference parts and alternative options found for LM358QT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM358QT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
CX12B-A1B1C3100-28.0D18-3 Parallel - 3Rd Overtone Quartz Crystal, 28MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4 Cardinal Components LM358QT vs CX12B-A1B1C3100-28.0D18-3
CX12B-A1B3C3100-28.0D18-3 Parallel - 3Rd Overtone Quartz Crystal, 28MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4 Cardinal Components LM358QT vs CX12B-A1B3C3100-28.0D18-3
CX12BZ-A2B2C3100-28.0D18-3 Parallel - 3Rd Overtone Quartz Crystal, 28MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4 Cardinal Components LM358QT vs CX12BZ-A2B2C3100-28.0D18-3
LM358H DUAL OP-AMP, 9000uV OFFSET-MAX, 1.1MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN STMicroelectronics LM358QT vs LM358H
CX12B-A1B4C3100-28.0D18-3 Parallel - 3Rd Overtone Quartz Crystal, 28MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4 Cardinal Components LM358QT vs CX12B-A1B4C3100-28.0D18-3
CX12BZ-A0B3C3100-28.0D18-3 Parallel - 3Rd Overtone Quartz Crystal, 28MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4 Cardinal Components LM358QT vs CX12BZ-A0B3C3100-28.0D18-3
LM358DP IC DUAL OP-AMP, 9000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO8, 3 MM, PLASTIC, SOT-505-1, TSSOP-8, Operational Amplifier NXP Semiconductors LM358QT vs LM358DP
CX12BZ-A3B3C3100-28.0D18-3 Parallel - 3Rd Overtone Quartz Crystal, 28MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4 Cardinal Components LM358QT vs CX12BZ-A3B3C3100-28.0D18-3
CX12B-A3B2C3100-28.0D18-3 Parallel - 3Rd Overtone Quartz Crystal, 28MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4 Cardinal Components LM358QT vs CX12B-A3B2C3100-28.0D18-3
CX12B-A2B3C3100-28.0D18-3 Parallel - 3Rd Overtone Quartz Crystal, 28MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4 Cardinal Components LM358QT vs CX12B-A2B3C3100-28.0D18-3
