Part Details for LSF0102YZTR by Texas Instruments
Results Overview of LSF0102YZTR by Texas Instruments
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Financial Technology (Fintech)
LSF0102YZTR Information
LSF0102YZTR by Texas Instruments is a Level Translator.
Level Translators are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LSF0102YZTR | Texas Instruments | Dual Bidirectional Multi-Voltage Level Translator 8-DSBGA -40 to 125 |
Price & Stock for LSF0102YZTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87625274
|
Verical | Voltage Level Translator 2-CH Bidirectional 8-Pin DSBGA T/R RoHS: Compliant Min Qty: 34 Package Multiple: 1 Date Code: 2245 | Americas - 1731 |
|
$0.1848 / $0.1938 | Buy Now |
|
DISTI #
93821819
|
Verical | Voltage Level Translator 2-CH Bidirectional 8-Pin DSBGA T/R RoHS: Compliant Min Qty: 6 Package Multiple: 1 Date Code: 2245 | Americas - 355 |
|
$0.3947 / $0.7974 | Buy Now |
|
DISTI #
595-LSF0102YZTR
|
Mouser Electronics | Translation - Voltage Levels Dual Bidirect Multi VTG Level Translator RoHS: Compliant | 6989 |
|
$0.4690 / $1.0200 | Buy Now |
|
DISTI #
V72:2272_07295304
|
Arrow Electronics | Voltage Level Translator 2-CH Bidirectional 8-Pin DSBGA T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2245 Container: Cut Strips | Americas - 1731 |
|
$0.1848 / $0.2006 | Buy Now |
|
DISTI #
P02:6590_09892925
|
Arrow Electronics | Voltage Level Translator 2-CH Bidirectional 8-Pin DSBGA T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2245 Container: Cut Strips | Asia - 355 |
|
$0.3947 / $0.7974 | Buy Now |
|
|
Bristol Electronics | Voltage Level Translator 2-CH Bidirectional 8-Pin DSBGA T/R | 5060 |
|
RFQ | |
|
|
Quest Components | 2802 |
|
$0.4013 / $1.1465 | Buy Now | |
|
|
Quest Components | 772 |
|
$0.2484 / $0.9555 | Buy Now | |
|
DISTI #
V72:2272_07295304
|
Arrow Electronics | Voltage Level Translator 2-CH Bidirectional 8-Pin DSBGA T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2245 Container: Cut Strips | Americas - 1731 |
|
$0.1848 / $0.2006 | Buy Now |
|
DISTI #
P02:6590_09892925
|
Arrow Electronics | Voltage Level Translator 2-CH Bidirectional 8-Pin DSBGA T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2245 Container: Cut Strips | Asia - 355 |
|
$0.3947 / $0.7974 | Buy Now |
US Tariff Estimator: LSF0102YZTR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

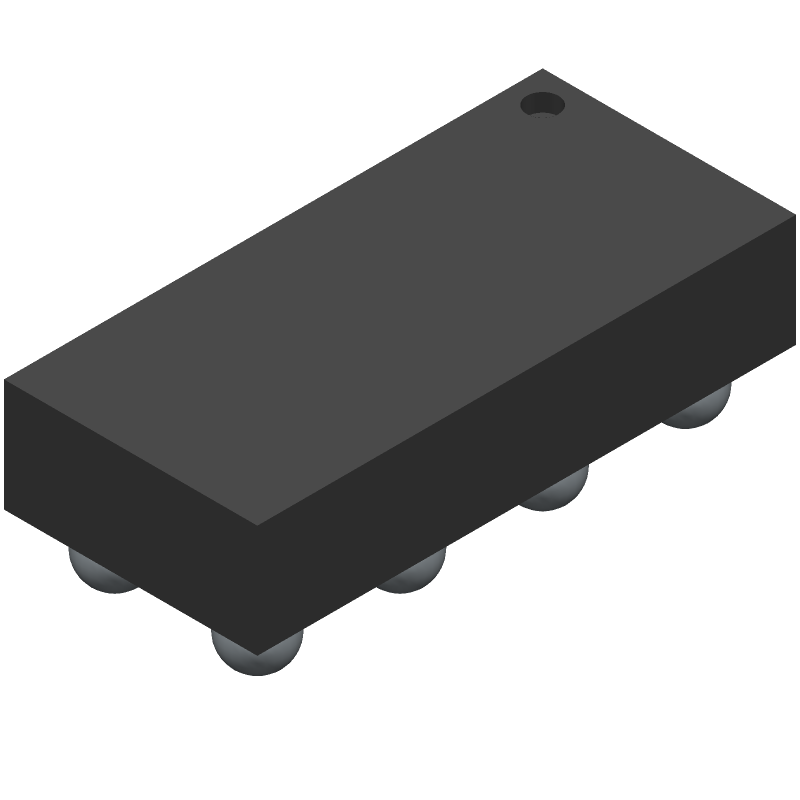

LSF0102YZTR CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LSF0102YZTR Part Data Attributes
|
|
LSF0102YZTR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LSF0102YZTR
Texas Instruments
VOLTAGE LEVEL TRANSLATOR, 1 Func, True Output, BGA8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dsbga-8 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Delay-Max | 1.2 Ns | |
| Input Characteristics | Standard | |
| Interface IC Type | Voltage Level Translator | |
| JESD-30 Code | R-XBGA-B8 | |
| JESD-609 Code | e1 | |
| Length | 1.888 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Low Current-Max | ||
| Output Polarity | True | |
| Package Body Material | Unspecified | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA8,2X4,20 | |
| Package Shape | Rectangular | |
| Package Style | Grid Array, Very Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.625 Mm | |
| Supply Current-Max | 5 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 0.95 V | |
| Supply Voltage-Nom | 1 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | Ball | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 0.888 Mm |
