LTC6079CDHC#PBF Information
LTC6079CDHC#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LTC6079CDHC#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7294
|
Newark | Op-Amp, 750Khz, 0 To 70Deg C, Dfn-16, No. Of Channels:4Channels, Gain Bandwidth Product:750Khz, Supply Voltage Range:2.7V To 5.5V, Ic Case/Package:Dfn, No. Of Pins:16Pins, Amplifier Type:Cmos, Input Offset Voltage:35Μv Rohs Compliant: Yes |Analog Devices LTC6079CDHC#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 292 |
|
$3.9200 / $8.9900 | Buy Now |
|
DISTI #
LTC6079CDHC#PBF-ND
|
DigiKey | IC CMOS 4 CIRCUIT 16DFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
515 In Stock |
|
$4.2123 / $7.1600 | Buy Now |
|
DISTI #
584-LTC6079CDHC#PBF
|
Mouser Electronics | Precision Amplifiers uP Prec, 4x CMOS R2R In/Out Amps RoHS: Compliant | 2171 |
|
$3.8100 / $8.7300 | Buy Now |
|
DISTI #
V36:1790_06491028
|
Arrow Electronics | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 146 Package Multiple: 73 Lead time: 10 Weeks Date Code: 2314 | Americas - 61 |
|
$1.7790 / $3.6530 | Buy Now |
|
|
Analog Devices Inc | uP Prec, 4x CMOS R2R In/Out Am Package Multiple: 73 | 1417 |
|
$3.0500 / $8.7300 | Buy Now |
|
DISTI #
69919911
|
Verical | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin DFN EP Tube RoHS: Compliant Min Qty: 61 Package Multiple: 61 Date Code: 2314 | Americas - 61 |
|
$1.7790 | Buy Now |
|
DISTI #
V36:1790_06491028
|
Arrow Electronics | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 146 Package Multiple: 73 Lead time: 10 Weeks Date Code: 2314 | Americas - 61 |
|
$1.7790 / $3.6530 | Buy Now |
|
DISTI #
69919911
|
Verical | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 61 Package Multiple: 61 Date Code: 2314 | Americas - 61 |
|
$1.7790 | Buy Now |
|
DISTI #
V36:1790_06491028
|
Arrow Electronics | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 146 Package Multiple: 73 Lead time: 10 Weeks Date Code: 2314 | Americas - 61 |
|
$1.7790 / $3.6530 | Buy Now |
|
DISTI #
LTC6079CDHC#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 146 | 0 |
|
$3.9400 / $4.3200 | Buy Now |
US Tariff Estimator: LTC6079CDHC#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC6079CDHC#PBF
LTC6079CDHC#PBF CAD Models
-

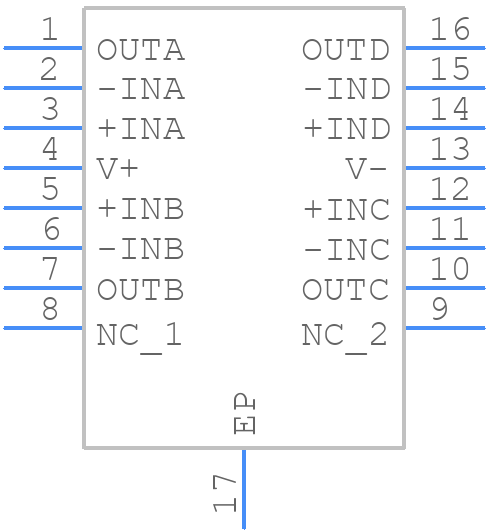

Part Symbol
-
Footprint
-

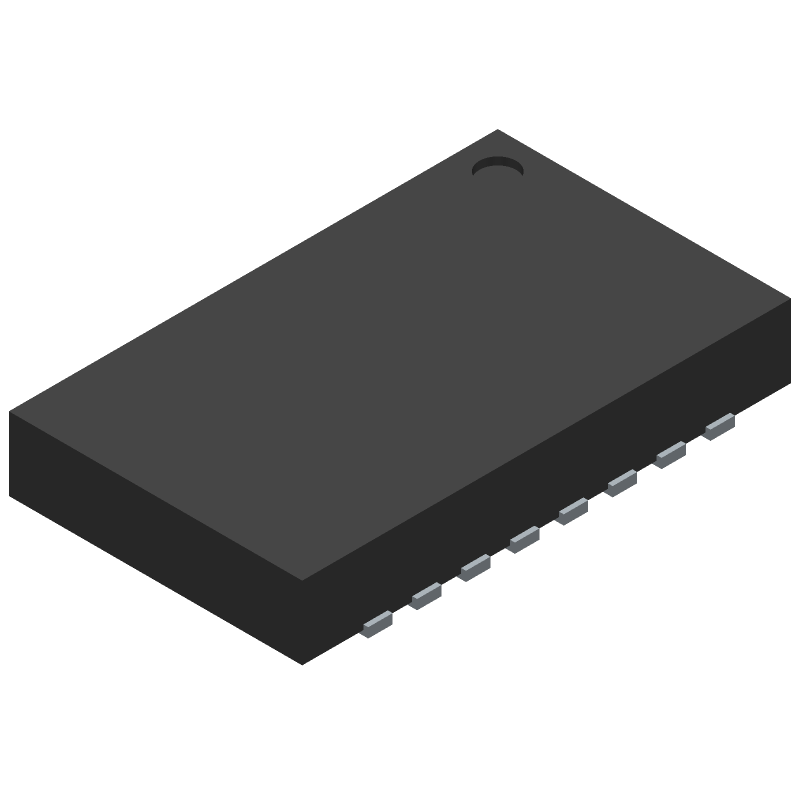

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC6079CDHC#PBF Part Data Attributes
|
|
LTC6079CDHC#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC6079CDHC#PBF
Analog Devices Inc
Operational Amplifier, 4 Func, 150uV Offset-Max, CMOS, PDSO16
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | 5 X 3 Mm, Lead Free, Plastic, Mo-229wjed-1, Dfn-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1706 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.00005 µA | |
| Bias Current-Max (IIB) @25C | 0.000001 µA | |
| Common-mode Reject Ratio-Min | 83 Db | |
| Common-mode Reject Ratio-Nom | 100 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 150 µV | |
| JESD-30 Code | R-PDSO-N16 | |
| JESD-609 Code | e3 | |
| Length | 5 Mm | |
| Low-Bias | Yes | |
| Low-Offset | Yes | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC16,.12,20 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | Yes | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 Mm | |
| Slew Rate-Nom | 0.05 V/Us | |
| Supply Current-Max | 0.32 Ma | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 750 | |
| Voltage Gain-Min | 316227.76 | |
| Wideband | No | |
| Width | 3 Mm |
