LTC6101CCS5#TRMPBF Information
LTC6101CCS5#TRMPBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LTC6101CCS5#TRMPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK3805
|
Newark | Current Sense Amp, 200Khz, Tsot-23, Current Sense Amplifier Type:High Side, Gain Bandwidth Product:200Khz, Ic Case/Package:Tsot-23, No. Of Pins:5Pins, Operating Temperature Min:0°C, Operating Temperature Max:70°C, Cmrr:- Rohs Compliant: Yes |Analog Devices LTC6101CCS5#TRMPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 310 |
|
$2.0500 / $5.0400 | Buy Now |
|
DISTI #
505-LTC6101CCS5#TRMPBFCT-ND
|
DigiKey | IC CURR SENSE 1 CIRCUIT TSOT23-5 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4376 In Stock |
|
$1.8505 / $3.5100 | Buy Now |
|
DISTI #
584-C6101CCS5TRMPBF
|
Mouser Electronics | Current Sense Amplifiers Hi V, Hi-Side C Sense Amp in SOT-23 RoHS: Compliant | 3261 |
|
$1.7200 / $4.8900 | Buy Now |
|
|
Analog Devices Inc | Hi V, Hi-Side C Sense Amp in S Package Multiple: 500 | 1376 |
|
$1.7250 / $4.8900 | Buy Now |
|
DISTI #
35216567
|
Verical | SP Amp Current Sense Amp Single 60V 5-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 500 |
|
$1.7069 | Buy Now |
|
DISTI #
LTC6101CCS5TRMPBF
|
TME | IC: instrumentation amplifier, 200kHz, Ch: 1, TSOT23, 1.2mV Min Qty: 1 | 0 |
|
$1.9500 / $2.7300 | RFQ |
|
DISTI #
LTC6101CCS5TRMP
|
Richardson RFPD | AMPLIFIER - SPECIAL PURPOSE RoHS: Compliant Min Qty: 500 | 0 |
|
$1.7900 / $1.9000 | Buy Now |
US Tariff Estimator: LTC6101CCS5#TRMPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC6101CCS5#TRMPBF
LTC6101CCS5#TRMPBF CAD Models
-

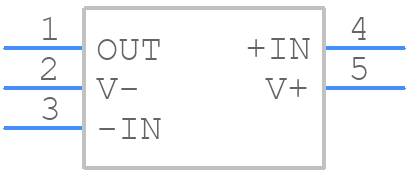

Part Symbol
-
