LTM4625IY#PBF Information
LTM4625IY#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTM4625IY#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7554
|
Newark | Dc-Dc Converter, 0.6V-5.5V, 5A, Power Supply Applications:Ite, Industrial & Medical, Dc/Dc Converter Type:Bga-25, Micro Module, Output Power Max:-, Output Voltage Min:600Mv, Output Voltage Max:5.5V, Output Current Max:5A Rohs Compliant: Yes |Analog Devices LTM4625IY#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 336 |
|
$10.7600 / $19.3800 | Buy Now |
|
DISTI #
584-LTM4625IY#PBF
|
Mouser Electronics | Switching Voltage Regulators 20VIN, 5A Buck DC/DC Module Reg RoHS: Compliant | 8100 |
|
$10.4500 / $19.6800 | Buy Now |
|
|
Analog Devices Inc | 20VIN, 5A Buck DC/DC µModule Package Multiple: 260 | 859 |
|
$8.3600 / $18.8200 | Buy Now |
|
DISTI #
92011769
|
Verical | 20VIN, 5A Step-Down DC/DC μModule (Power Module) Regulator RoHS: Exempt Min Qty: 1 Package Multiple: 1 Date Code: 2540 | Americas - 1471 |
|
$9.9240 / $18.5900 | Buy Now |
|
DISTI #
LTM4625IY#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 260 | 0 |
|
$10.7900 / $11.8400 | Buy Now |
US Tariff Estimator: LTM4625IY#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTM4625IY#PBF
LTM4625IY#PBF CAD Models
-

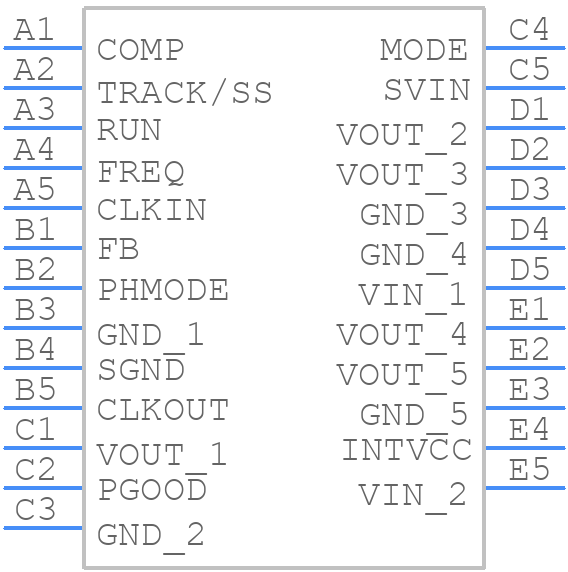

Part Symbol
-

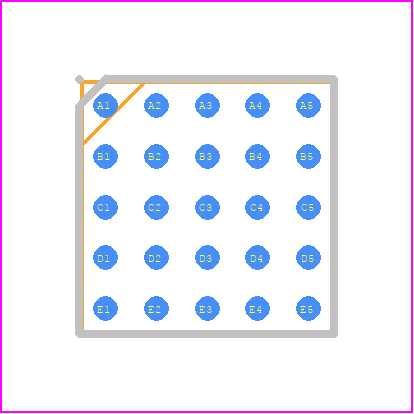

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTM4625IY#PBF Part Data Attributes
|
|
LTM4625IY#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTM4625IY#PBF
Analog Devices Inc
Switching Regulator, Current-mode, 5A, 1000kHz Switching Freq-Max, Hybrid, PBGA25
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Bga, | |
| Pin Count | 25 | |
| Manufacturer Package Code | 05-08-1905 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Additional Feature | Output Volatge Range From 0.6 Volt To 5.5 Volt | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 4 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-PBGA-B25 | |
| JESD-609 Code | e1 | |
| Length | 6.25 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 25 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5 A | |
| Output Voltage-Max | 5.5 V | |
| Output Voltage-Min | 0.6 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | BGA | |
| Package Shape | Square | |
| Package Style | Grid Array | |
| Peak Reflow Temperature (Cel) | 250 | |
| Seated Height-Max | 5.21 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 1000 Khz | |
| Technology | Hybrid | |
| Temperature Grade | Automotive | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | Ball | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.25 Mm |
Alternate Parts for LTM4625IY#PBF
This table gives cross-reference parts and alternative options found for LTM4625IY#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTM4625IY#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTM4625EY#PBF | Analog Devices Inc | $10.9794 | Switching Regulator, Current-mode, 5A, 1000kHz Switching Freq-Max, Hybrid, PBGA25 | LTM4625IY#PBF vs LTM4625EY#PBF |
| LTM4648IY#PBF | Analog Devices Inc | $28.9426 | Switching Regulator, Current-mode, 650kHz Switching Freq-Max, Hybrid, PBGA68 | LTM4625IY#PBF vs LTM4648IY#PBF |
| LMZ31704RVQT | Texas Instruments | $4.3649 | Switching Regulator, Current Mode, 4A, 1200kHz Switching Freq-Max, Hybrid | LTM4625IY#PBF vs LMZ31704RVQT |
| LTM4625IY | Analog Devices Inc | $5.7985 | Switching Regulator, Current-mode, 5A, 1000kHz Switching Freq-Max, Hybrid, PBGA25 | LTM4625IY#PBF vs LTM4625IY |
| MIC45404YMP-TR | Microchip Technology Inc | $5.8838 | 19V 5A Ultralow Profile DC-DC Power Module | LTM4625IY#PBF vs MIC45404YMP-TR |
| LMZ31710RVQT | Texas Instruments | $8.3956 | Switching Regulator, Current Mode, 10A, 1200kHz Switching Freq-Max, Hybrid | LTM4625IY#PBF vs LMZ31710RVQT |
| LMZ31707RVQR | Texas Instruments | Check for Price | Switching Regulator, Current Mode, 7A, 1200kHz Switching Freq-Max, Hybrid | LTM4625IY#PBF vs LMZ31707RVQR |
| LMZ31704RVQR | Texas Instruments | Check for Price | Switching Regulator, Current Mode, 4A, 1200kHz Switching Freq-Max, Hybrid | LTM4625IY#PBF vs LMZ31704RVQR |
LTM4625IY#PBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LTM4625IY#PBF is -40°C to 125°C.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 0.1Ω to 10Ω, and to place the output capacitor close to the output pin of the device.
-
The recommended input capacitor value for the LTM4625IY#PBF is 10uF to 22uF, with an ESR of 0.1Ω to 10Ω, and a voltage rating of at least 2x the maximum input voltage.
-
To reduce the noise and ripple in the output voltage, it is recommended to use a low-ESR output capacitor, add a noise-reducing capacitor (e.g. 10nF to 100nF) in parallel with the output capacitor, and to minimize the loop area of the output traces.
-
The maximum current rating for the LTM4625IY#PBF is 2.5A, but it can be limited by the thermal performance of the device and the PCB design.
