MAX207IDBR Information
MAX207IDBR by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| MAX207IDBR | Texas Instruments | 5-V Multichannel RS-232 Line Driver/Receiver With +/-15-kV ESD Protection 24-SSOP -40 to 85 |
Price & Stock for MAX207IDBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-18488-6-ND
|
DigiKey | IC TXRX 24-SSOP Min Qty: 1 Container: Digi-Reel |
0 Digi-Reel® |
|
$1.9217 / $3.3200 | Buy Now |
|
DISTI #
296-18488-2-ND
|
DigiKey | IC TXRX 24-SSOP Min Qty: 2000 Container: Tape & Reel |
0 Tape & Reel |
|
$1.7481 / $1.7847 | Buy Now |
|
DISTI #
296-18488-1-ND
|
DigiKey | IC TXRX 24-SSOP Min Qty: 1 Container: Cut Tape |
0 Cut Tape |
|
$1.9217 / $3.3200 | Buy Now |
|
DISTI #
86000356
|
Verical | Quint Transmitter Triple Receiver RS-232 24-Pin SSOP T/R RoHS: Compliant Min Qty: 190 Package Multiple: 1 Date Code: 1401 | Americas - 6000 |
|
$1.6625 / $1.9750 | Buy Now |
|
DISTI #
85991843
|
Verical | Quint Transmitter Triple Receiver RS-232 24-Pin SSOP T/R RoHS: Compliant Min Qty: 190 Package Multiple: 1 Date Code: 1001 | Americas - 1970 |
|
$1.6625 / $1.9750 | Buy Now |
|
DISTI #
595-MAX207IDBR
|
Mouser Electronics | RS-232 Interface IC 5V MultiCh Line Driv er/Receiver A 595-M A 595-MAX207IDB RoHS: Compliant | 912 |
|
$1.7100 / $3.3700 | Buy Now |
|
|
Rochester Electronics | IC INTERFACE Transceiver RS232 120kbps 4.5V - 5.5V 24-SOP T/R RoHS: Compliant Status: Active Min Qty: 1 | 7970 |
|
$1.3300 / $1.6600 | Buy Now |
US Tariff Estimator: MAX207IDBR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
MAX207IDBR CAD Models
-

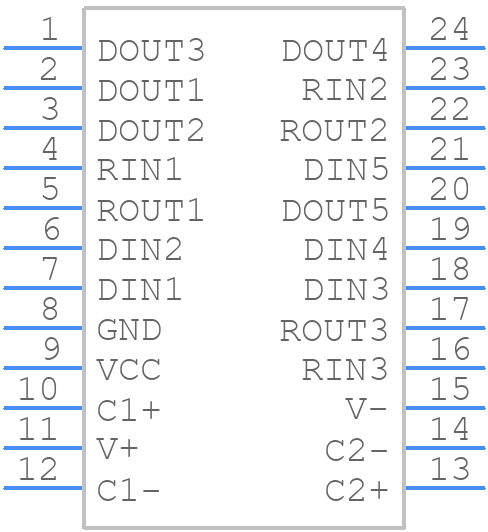

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX207IDBR Part Data Attributes
|
|
MAX207IDBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
MAX207IDBR
Texas Instruments
Line Transceiver, 3 Func, 5 Driver, 3 Rcvr, CMOS, PDSO24
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SSOP | |
| Package Description | Ssop-24 | |
| Pin Count | 24 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Differential Output | No | |
| Driver Number of Bits | 5 | |
| High Level Input Current-Max | 0.0002 A | |
| Input Characteristics | Schmitt Trigger | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | Eia-232-F; Tia-232-F; V.28 | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 8.2 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 3 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0016 A | |
| Output Polarity | Inverted | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP24,.3 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 10000 Ns | |
| Receiver Number of Bits | 3 | |
| Seated Height-Max | 2 Mm | |
| Supply Current-Max | 20 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 5.5 V | |
| Supply Voltage1-Min | 4.5 V | |
| Supply Voltage1-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 10000 Ns | |
| Width | 5.3 Mm |
