MAX3053ESA+T by:

±80V Fault-Protected, 2Mbps, Low Supply Current CAN Transceiver, 8-SOIC_N-150_MIL, 8 Pins, -40 to 85C

Part Details for MAX3053ESA+T by Analog Devices Inc

Results Overview of MAX3053ESA+T by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Automotive Robotics and Drones

MAX3053ESA+T Information

MAX3053ESA+T by Analog Devices Inc is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.

A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.

Price & Stock for MAX3053ESA+T

Part # Distributor Description Stock Price Buy
DISTI # 2517389
Farnell CAN TRANSCEIVER, 2MBPS, 5V, NSOIC-8 RoHS: Compliant Min Qty: 1 Lead time: 16 Weeks, 1 Days Container: Cut Tape 6
  • 1 $6.9599
  • 10 $4.3592
  • 25 $4.0248
  • 100 $3.6905
  • 250 $3.3685
  • 500 $3.1703
$3.1703 / $6.9599 Buy Now
DISTI # 2517389RL
Farnell CAN TRANSCEIVER, 2MBPS, 5V, NSOIC-8 RoHS: Compliant Min Qty: 10 Lead time: 16 Weeks, 1 Days Container: Reel 6
  • 10 $4.3592
  • 25 $4.0248
  • 100 $3.6905
  • 250 $3.3685
  • 500 $3.1703
$3.1703 / $4.3592 Buy Now
Analog Devices Inc ±80V Fault-Protected, 2Mbps, L Min Qty: 1 Package Multiple: 1 800
  • 1 $7.3800
  • 10 $5.0310
  • 25 $4.4248
  • 100 $3.7455
  • 250 $3.4160
  • 500 $3.2152
  • 1,000 $3.0486
  • 2,500 $2.8875
$2.8875 / $7.3800 Buy Now
Bristol Electronics   Min Qty: 2 433
  • 2 $4.4800
  • 7 $2.9120
  • 19 $2.2400
  • 57 $2.0908
  • 121 $1.9412
  • 246 $1.8368
$1.8368 / $4.4800 Buy Now

Part Details for MAX3053ESA+T

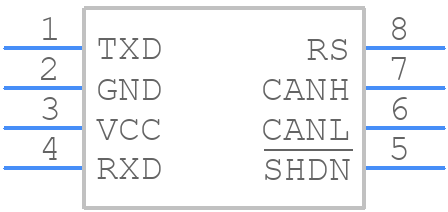

MAX3053ESA+T CAD Models

MAX3053ESA+T Part Data Attributes

MAX3053ESA+T Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX3053ESA+T Analog Devices Inc ±80V Fault-Protected, 2Mbps, Low Supply Current CAN Transceiver, 8-SOIC_N-150_MIL, 8 Pins, -40 to 85C
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 8-SOIC_N-150_MIL
Package Description SOIC-8
Pin Count 8
Manufacturer Package Code 8-SOIC_N-150_MIL
Reach Compliance Code compliant
Date Of Intro 2002-05-22
Samacsys Manufacturer Analog Devices
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom 5 V
Surface Mount YES
Technology BICMOS
Telecom IC Type INTERFACE CIRCUIT
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm
