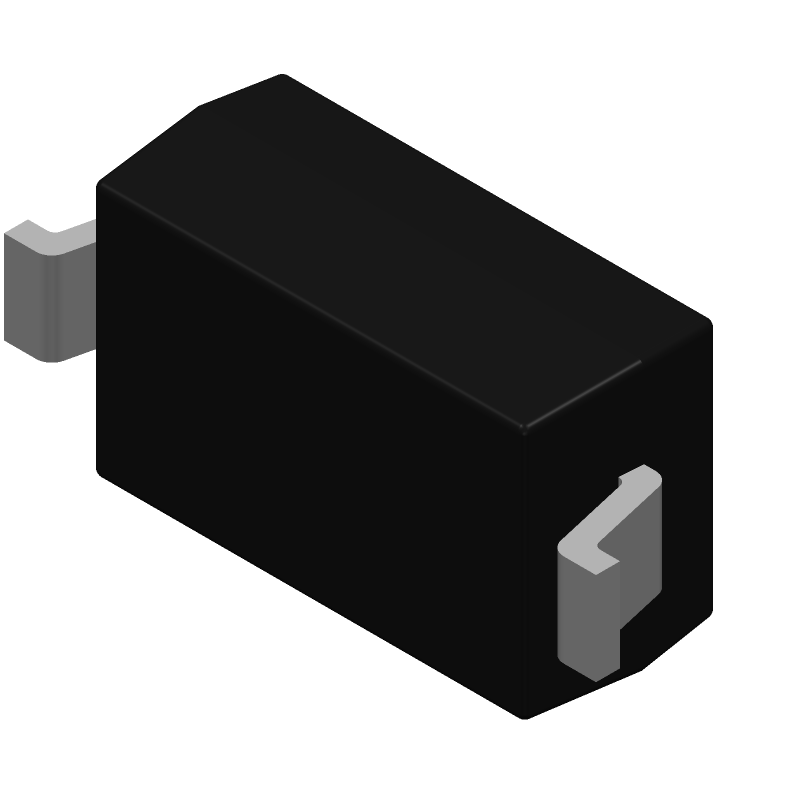

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MBR0540-TP by Micro Commercial Components
Results Overview of MBR0540-TP by Micro Commercial Components
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
MBR0540-TP Information
MBR0540-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBR0540-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21AM9689
|
Newark | Schottky Diode, 40V, 0.5A, Sod-123 Rohs Compliant: Yes |Micro Commercial Components MBR0540-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 7395 |
|
$0.0700 / $0.2090 | Buy Now |
|
|
Bristol Electronics | 3815 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 3 | 1747 |
|
$0.6757 / $2.0475 | Buy Now |
|
|
Future Electronics | MBR0540 Series 40 V 0.5 A Surface Mount Schottky Rectifier- SOD-123 Min Qty: 3000 Package Multiple: 3000 |
9000 null |
|
$0.0167 / $0.0182 | Buy Now |
|
|
Future Electronics | MBR0540 Series 40 V 0.5 A Surface Mount Schottky Rectifier- SOD-123 Min Qty: 3000 Package Multiple: 3000 |
1293000 null |
|
$0.0082 / $0.0093 | Buy Now |
|
DISTI #
MBR0540-TP
|
TME | Diode: Schottky switching, SOD123, SMD, 40V, 500mA, reel,tape Min Qty: 25 | 16575 |
|
$0.0239 / $0.0359 | Buy Now |
|
DISTI #
SMC-MBR0540-TP
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 3625 |
|
RFQ | |
|
DISTI #
SMC-MBR0540-TP
|
Sensible Micro Corporation | Diode: Schottky Switching, Smd, 40V, 500Ma, Sod123, Reel,Tape RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1125 Container: Tape & Reel | 2877 |
|
$0.0180 / $0.0195 | RFQ |
|
|
LCSC | 40V 550mV500mA 500mA SOD-123 Schottky Diodes ROHS | 980 |
|
$0.0161 / $0.0316 | Buy Now |
|
|
New Advantage Corporation | MBR0540 Series 40 V 0.5 A Surface Mount Schottky Rectifier- SOD-123 RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 1041000 |
|
$0.0280 / $0.0303 | Buy Now |
Part Details for MBR0540-TP
MBR0540-TP CAD Models
MBR0540-TP Part Data Attributes
|
|
MBR0540-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MBR0540-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Element, 0.5A, 40V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.55 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 5.5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.41 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Current-Max | 100 µA | |
| Reverse Test Voltage | 40 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for MBR0540-TP
This table gives cross-reference parts and alternative options found for MBR0540-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBR0540-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBR0540T3G | onsemi | $0.0542 | 500 mA, 40 V, Schottky Power Rectifier, Surface Mount, SOD-123 2 LEAD, 10000-REEL | MBR0540-TP vs MBR0540T3G |
| MBR0540L-TP | Micro Commercial Components | $0.0825 | Rectifier Diode, Schottky, 1 Element, 0.5A, 40V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2 | MBR0540-TP vs MBR0540L-TP |
| B0540W-7-F | Diodes Incorporated | $0.0984 | Rectifier Diode, Schottky, 1 Element, 0.5A, 40V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 | MBR0540-TP vs B0540W-7-F |
| B0540W-7-F | SPC Multicomp | Check for Price | Rectifier Diode, | MBR0540-TP vs B0540W-7-F |
| MBR0540 | Taitron Components Inc | Check for Price | Rectifier Diode, | MBR0540-TP vs MBR0540 |
| MBR0540-G | Sensitron Semiconductors | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 40V V(RRM), Silicon, ROHS COMPLIANT, SOD-123, 2 PIN | MBR0540-TP vs MBR0540-G |
| CMHSH5-4BKPBFREE | Central Semiconductor Corp | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 40V V(RRM), | MBR0540-TP vs CMHSH5-4BKPBFREE |
| MBR0540 | Shanghai Lunsure Electronic Technology Co Ltd | Check for Price | Rectifier Diode | MBR0540-TP vs MBR0540 |
| CMHSH5-4 | Central Semiconductor Corp | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 40V V(RRM), Silicon, PLASTIC PACKAGE-2 | MBR0540-TP vs CMHSH5-4 |
MBR0540-TP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MBR0540-TP is -55°C to 150°C.
-
To ensure correct soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the leads. Avoid applying excessive heat or force, which can damage the component.
-
Store the MBR0540-TP in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, with a relative humidity of 60% or less.
-
Yes, the MBR0540-TP is suitable for high-frequency switching applications due to its low forward voltage drop and fast switching times. However, ensure that the component is properly cooled and the maximum junction temperature is not exceeded.
-
