Resistors / Fixed Resistors / MC01W080513K32
Datasheets
MC01W080513K32 by: SPC Multicomp

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3320ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP

Part Details for MC01W080513K32 by SPC Multicomp

Results Overview of MC01W080513K32 by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MC01W080513K32 Information

MC01W080513K32 by SPC Multicomp is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MC01W080513K32

Part # Distributor Description Stock Price Buy
DISTI # 94W6189
Newark Res, Thick Film, 3K32, 1%, 0.1W, 0805, Resistance:3.32Kohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0805 [2012 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Product Range:- Rohs Compliant: Yes |Multicomp Pro MC01W080513K32 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 4722
  • 1 $0.0010
  • 10 $0.0010
  • 100 $0.0010
  • 1,000 $0.0010
$0.0010 Buy Now

Part Details for MC01W080513K32

MC01W080513K32 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

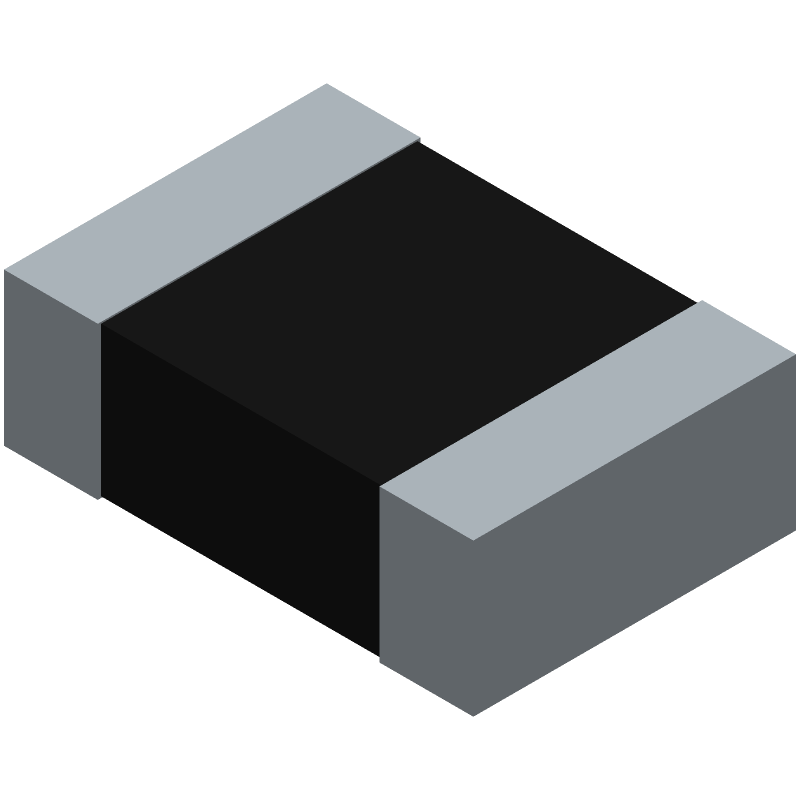

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC01W080513K32 Part Data Attributes

Parametric Data
MC01W080513K32 SPC Multicomp
Buy Now Datasheet
Compare Parts:
MC01W080513K32 SPC Multicomp Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3320ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Package Description CHIP
Reach Compliance Code unknown
Samacsys Manufacturer Multicomp Pro
Construction Rectangular
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Resistance 3320 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 150 V

Alternate Parts for MC01W080513K32

This table gives cross-reference parts and alternative options found for MC01W080513K32. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC01W080513K32, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0805S8F3321BDE Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3320ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, MC01W080513K32 vs 0805S8F3321BDE
WCR-WCR0805LF-3321-F-P-LT TT Electronics Resistors Check for Price RESISTOR, METAL GLAZE/THICK FILM, 0.125W, 1%, 100ppm, 3320ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT MC01W080513K32 vs WCR-WCR0805LF-3321-F-P-LT
0805S8F3321T4 Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3320ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, MC01W080513K32 vs 0805S8F3321T4
0805WAF3321T1E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3320ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, MC01W080513K32 vs 0805WAF3321T1E
0805S8F3321C2 Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3320ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, MC01W080513K32 vs 0805S8F3321C2
0805WAF3321T2E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 3320ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, MC01W080513K32 vs 0805WAF3321T2E
0805S8F3321TD Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3320ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, MC01W080513K32 vs 0805S8F3321TD
0805S8F3321T5E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 3320ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP MC01W080513K32 vs 0805S8F3321T5E
HQ05WAF3321T4E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, 0.1W, 3320ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, MC01W080513K32 vs HQ05WAF3321T4E
CRG0805F3K32 TE Connectivity Check for Price RESISTOR, METAL GLAZE/THICK FILM, 0.125W, 1%, 100ppm, 3320ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT MC01W080513K32 vs CRG0805F3K32

MC01W080513K32 Frequently Asked Questions (FAQ)

  • The recommended land pattern for the MC01W080513K32 can be found in the IPC-7351 standard or in the manufacturer's application notes. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.

  • To prevent damage, handle the MC01W080513K32 component by the edges, avoiding touching the pads or the component body. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Also, avoid bending or flexing the component during assembly.

  • The maximum storage temperature for the MC01W080513K32 is typically 40°C (104°F), and the maximum storage humidity is 90% RH. Exceeding these limits can affect the component's reliability and performance.

  • The MC01W080513K32 is designed for general-purpose use, but it may not be suitable for high-vibration environments. If your application involves high vibrations, consider using a component with specific vibration-resistant design features or consult with the manufacturer for guidance.

  • To determine the power rating of the MC01W080513K32 in a specific application, consider the maximum operating voltage, current, and temperature. Use the component's datasheet and application notes to calculate the power rating, and consult with the manufacturer if you're unsure.
