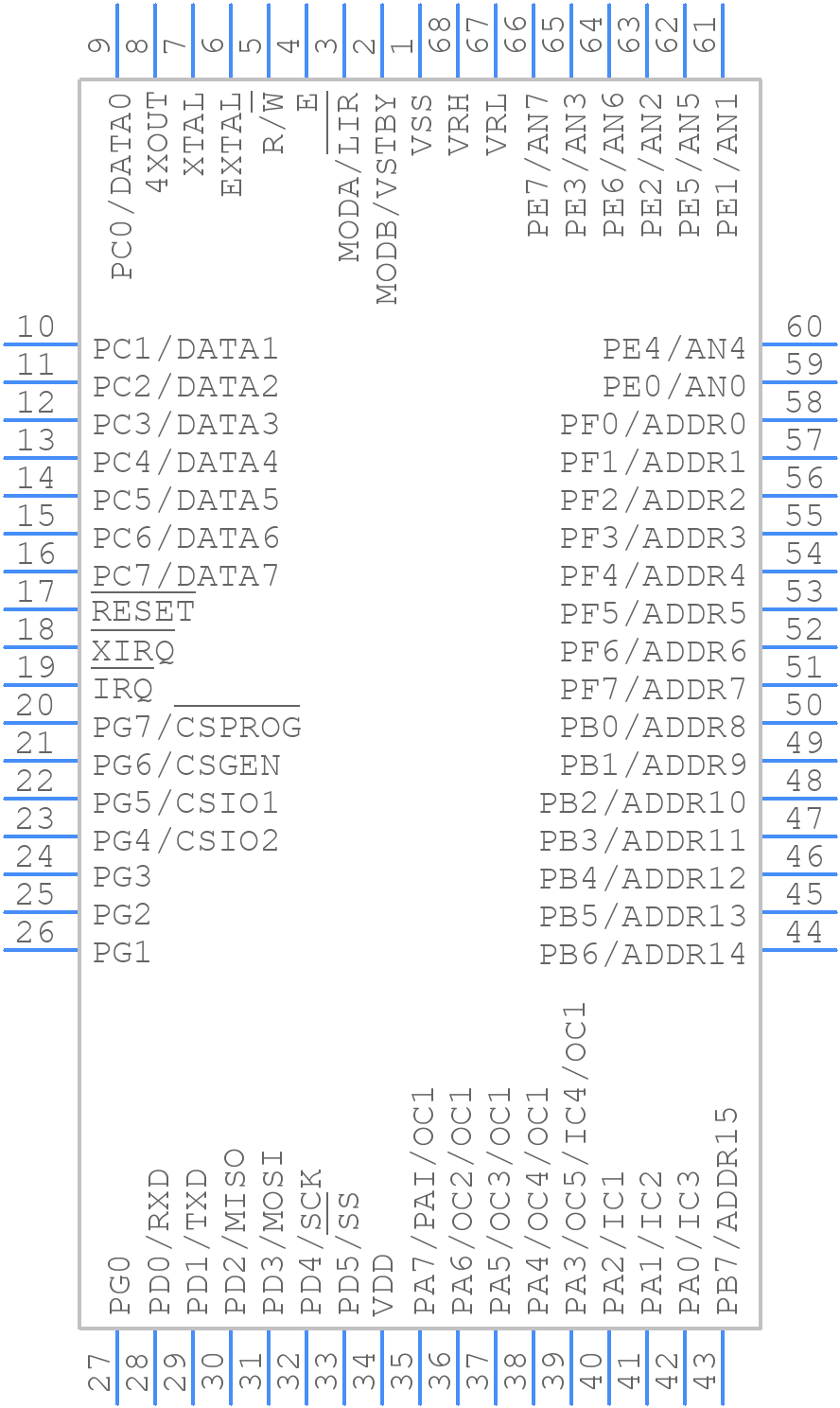

Part Symbol
-

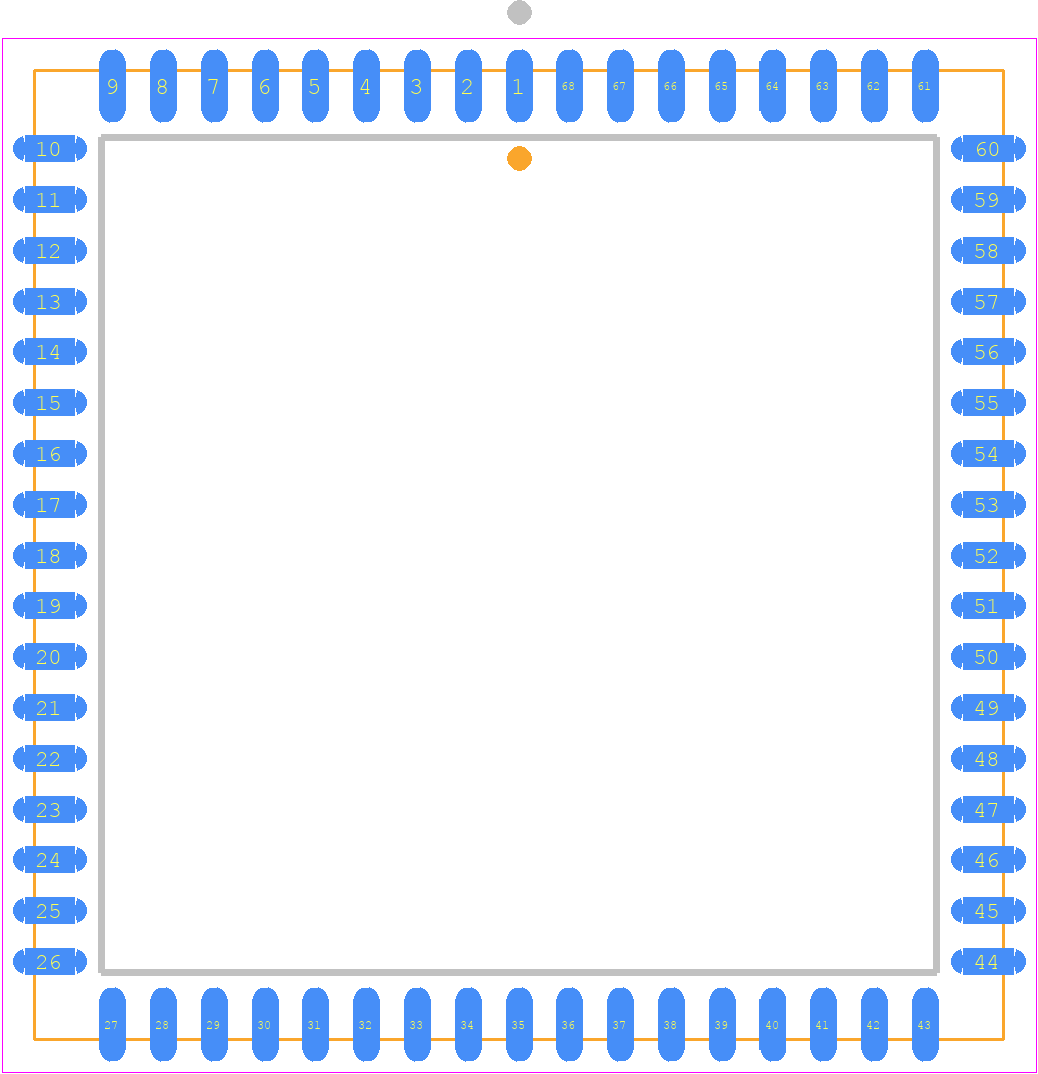

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCHC11F1CFNE4 by NXP Semiconductors
Results Overview of MCHC11F1CFNE4 by NXP Semiconductors
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MCHC11F1CFNE4 Information
MCHC11F1CFNE4 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MCHC11F1CFNE4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62K4817
|
Newark | Microcontroller Mcu, 8 Bit, Hc11, 4Mhz, Plcc-68, Product Range:Hc11 Family 68Hc11F1 Series Microcontrollers, Cpu Speed:4Mhz, Program Memory Size:-, Ram Memory Size:1Kb, No. Of Pins:68Pins, Mcu Case Style:Lcc, No. Of I/O S:30I/O S Rohs Compliant: Yes |Nxp MCHC11F1CFNE4 RoHS: Compliant Min Qty: 18 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$17.3600 / $20.9300 | Buy Now |
|
|
Bristol Electronics | 1 |
|
RFQ |
Part Details for MCHC11F1CFNE4
MCHC11F1CFNE4 CAD Models
MCHC11F1CFNE4 Part Data Attributes
|
|
MCHC11F1CFNE4
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MCHC11F1CFNE4
NXP Semiconductors
MICROCONTROLLER
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | LCC-68 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Date Of Intro | 1988-01-01 | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | 16 | |
| Bit Size | 8 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | 8 | |
| JESD-30 Code | S-PQCC-J68 | |
| JESD-609 Code | e3 | |
| Length | 24.23 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 54 | |
| Number of Terminals | 68 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | NO | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCJ | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 250 | |
| Speed | 4 MHz | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | J BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 24.23 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
