Sensors/Transducers / Pressure Sensors / MPX2010DP
Datasheets
MPX2010DP by:

DIFFERENTIAL, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 1%, 0-25mV, RECTANGULAR, THROUGH HOLE MOUNT

Part Details for MPX2010DP by NXP Semiconductors

Results Overview of MPX2010DP by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation Smart Cities Agriculture Technology

MPX2010DP Information

MPX2010DP by NXP Semiconductors is a Pressure Sensor.
Pressure Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Price & Stock for MPX2010DP

Part # Distributor Description Stock Price Buy
DISTI # 07F9816
Newark Pressure Sensor, 0 To 10Kpa, Sip-4, Pressure Type:Differential, Operating Pressure Min:0Kpa, Operating Pressure Max:10Kpa, Supply Voltage Min:10V, Supply Voltage Max:16V, Sensor Case/Package:Sip, No. Of Pins:4Pins, Accuracy:- Rohs Compliant: Yes |Nxp MPX2010DP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 12396
  • 1 $9.6400
  • 10 $9.6400
  • 25 $9.6400
  • 50 $9.6400
  • 100 $9.6400
  • 300 $9.6400
  • 500 $9.6400
$9.6400 Buy Now
DISTI # MPX2010DP
Avnet Americas Pressure Sensor 0kPa to 10kPa Differential 4-Pin Case 344C-01 Tray - Trays (Alt: MPX2010DP) RoHS: Compliant Min Qty: 20 Package Multiple: 1 Lead time: 39 Weeks, 0 Days Container: Tray 38
  • 20 $10.5779
  • 30 $10.4909
  • 50 $10.4040
  • 100 $10.3173
  • 200 $10.2309
$10.2309 / $10.5779 Buy Now
DISTI # 07F9816
Avnet Americas Pressure Sensor 0kPa to 10kPa Differential 4-Pin Case 344C-01 Tray - Bulk (Alt: 07F9816) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 57 Weeks, 4 Days Container: Bulk 12396 Partner Stock
  • 1 $16.0100
  • 10 $13.6100
  • 25 $12.8700
  • 50 $12.5300
  • 100 $11.9400
$11.9400 / $16.0100 Buy Now
Bristol Electronics   100
RFQ
DISTI # MPX2010DP
TME Sensor: pressure, 0÷10kPa, differential, OUT: analogue voltage Min Qty: 1 203
  • 1 $26.0600
  • 5 $25.2400
  • 20 $24.3100
  • 100 $21.7500
$21.7500 / $26.0600 Buy Now
NXP Semiconductors Pressure Sensor, 10V, 0/10kPa, Sensor 4, Dual Port, Tray, Multiple RoHS: Compliant pbFree: Yes Lead time: 39 Weeks, 0 Days Container: Tray Free Sample - 887
  • 1 $11.7100
  • 26 $11.2700
  • 100 $10.8400
$10.8400 / $11.7100 Buy Now
DISTI # MPX2010DP
Avnet Silica Pressure Sensor 0kPa to 10kPa Differential 4Pin Case 344C01 Tray (Alt: MPX2010DP) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 18 Weeks, 0 Days Silica - 40
Buy Now
DISTI # MPX2010DP
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray 239
  • 1 $11.7000
  • 5 $11.6000
  • 10 $11.3000
  • 200 $9.9700
  • 800 $9.9500
$9.9500 / $11.7000 Buy Now
DISTI # MPX2010DP
EBV Elektronik Pressure Sensor 0kPa to 10kPa Differential 4Pin Case 344C01 Tray (Alt: MPX2010DP) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 41 Weeks, 0 Days EBV - 0
Buy Now
MacroQuest Electronics STOCK 200
  • 1 $27.6900
$27.6900 Buy Now

Part Details for MPX2010DP

MPX2010DP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

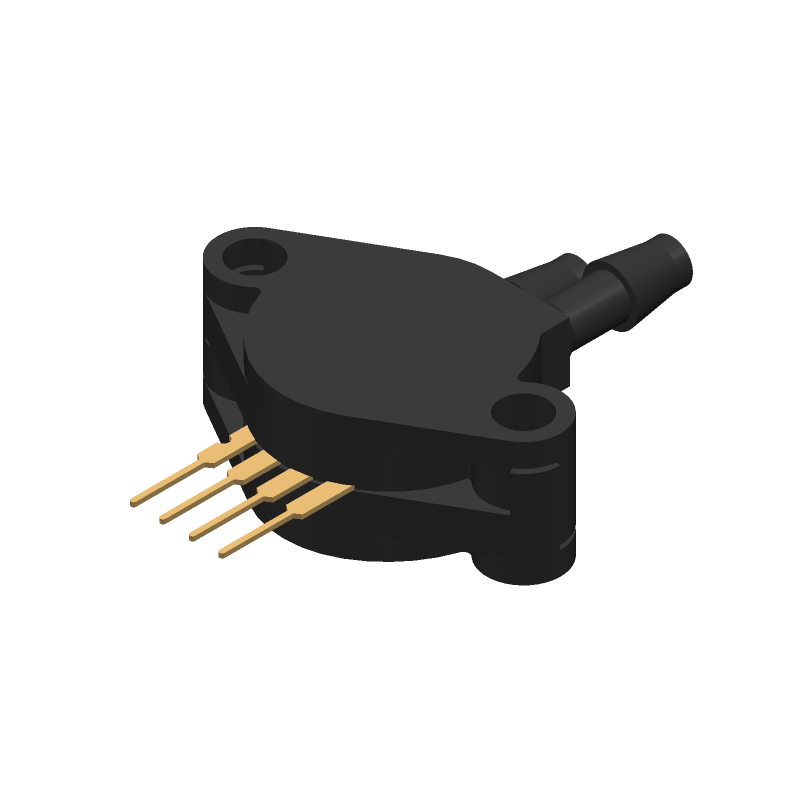

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MPX2010DP Part Data Attributes

Parametric Data
MPX2010DP NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MPX2010DP NXP Semiconductors DIFFERENTIAL, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 1%, 0-25mV, RECTANGULAR, THROUGH HOLE MOUNT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 57 Weeks, 4 Days
Samacsys Manufacturer NXP
Accuracy-Max (%) 1%
Additional Feature TEMPERATURE COMPENSATED
Body Breadth 10.67 mm
Body Height 28.7 mm
Body Length or Diameter 29.46 mm
Housing PLASTIC
Linearity (%) 1 %
Mounting Feature THROUGH HOLE MOUNT
Offset-Nom 0V
Operating Current-Max 6 mA
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Range 0-25mV
Output Type ANALOG VOLTAGE
Package Shape/Style RECTANGULAR
Port Type BARBED
Pressure Range-Max 1.45 Psi
Pressure Range-Min
Pressure Sensing Mode DIFFERENTIAL
Response Time 1000 µs
Sensors/Transducers Type PRESSURE SENSOR,PIEZORESISTIVE
Supply Voltage-Max 16 V
Supply Voltage-Min 10 V
Surface Mount NO
Termination Type SOLDER

MPX2010DP Related Parts

MPX2010DP Frequently Asked Questions (FAQ)

  • A good PCB layout for the MPX2010DP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).

  • Calibration of the MPX2010DP involves applying known pressures and measuring the corresponding output voltages. A linear regression can then be performed to determine the sensitivity and offset of the sensor.

  • The MPX2010DP can measure pressures up to 10 psi (69 kPa), but it's recommended to operate within the specified range of 0-5 psi (0-34 kPa) for optimal accuracy and linearity.

  • The MPX2010DP is not designed for use in humid or wet environments. It's recommended to use a protective coating or enclosure to prevent moisture ingress and ensure reliable operation.

  • The MPX2010DP has a typical current consumption of 1.5 mA at 5V supply voltage, making it suitable for battery-powered applications.
