NTHD4102PT1G by: onsemi

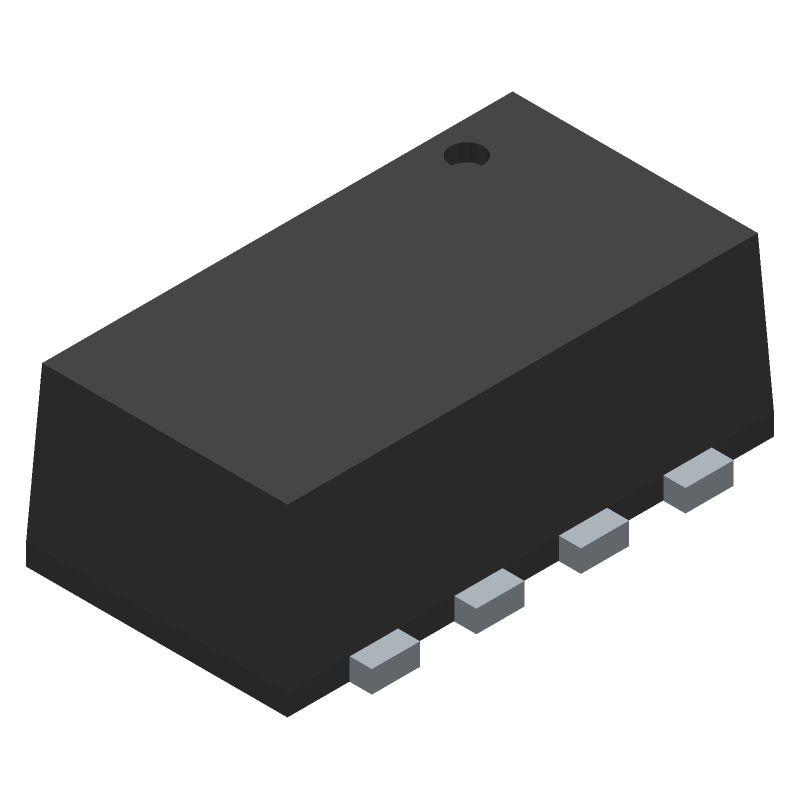

Dual P-Channel ChipFET™ Power MOSFET -20V -4.1A 80mΩ, ChipFET, 3000-REEL

Part Details for NTHD4102PT1G by onsemi

Results Overview of NTHD4102PT1G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

NTHD4102PT1G Information

NTHD4102PT1G by onsemi is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
