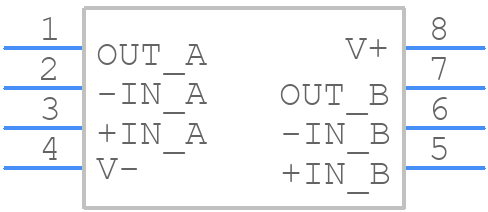

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OPA2191ID by Texas Instruments
Overview of OPA2191ID by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 cross)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
Price & Stock for OPA2191ID
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH6942
|
Newark | Op-Amp, 2.5Mhz, 7.5V/Us, Soic-8, No. Of Amplifiers:1 Amplifier, Bandwidth:2.5Mhz, Slew Rate:7.5V/Μs, Supply Voltage Range:12V To 36V, ± 2.25V To ± 18V, Amplifier Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Rohs Compliant: Yes |TEXAS INSTRUMENTS OPA2191ID Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$4.2100 / $5.5300 | Buy Now |
|
DISTI #
296-45460-5-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
1634 In Stock |
|
$2.2796 / $4.5400 | Buy Now |
|
DISTI #
595-OPA2191ID
|
Mouser Electronics | Operational Amplifiers - Op Amps 36-V CMOS Amplifier RoHS: Compliant | 12107 |
|
$2.3300 / $4.5400 | Buy Now |
|
DISTI #
J56:1989_11333680
|
Arrow Electronics | Op Amp Dual Precision Amplifier R-R I/O ±18V/36V 8-Pin SOIC Tube RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 6 Weeks Date Code: 2322 | Europe - 225 |
|
$2.1570 / $3.0170 | Buy Now |
|
DISTI #
OPA2191ID
|
TME | IC: operational amplifier, 2.5MHz, Ch: 2, SO8, tube, IB: 9nA, Iio: 2nA Min Qty: 1 | 0 |
|
$3.2900 / $4.6000 | RFQ |
|
|
Ameya Holding Limited | IC OP AMP RR 2.5MHZ 8-SOIC | 187195 |
|
RFQ | |
|
DISTI #
3117395
|
element14 Asia-Pacific | RoHS: Compliant Min Qty: 1 Container: Each | 0 |
|
$4.4663 / $5.3625 | Buy Now |
|
DISTI #
3117395
|
Farnell | RoHS: Compliant Min Qty: 1 Container: Each | 0 |
|
$4.4348 / $5.2789 | Buy Now |
Part Details for OPA2191ID
OPA2191ID CAD Models
OPA2191ID Part Data Attributes:
|
|
OPA2191ID
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
OPA2191ID
Texas Instruments
Low-power, 36-V, CMOS precision e-trim™ operational amplifier 8-SOIC -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOP, | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2017-02-04 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.009 µA | |
| Bias Current-Max (IIB) @25C | 0.00002 µA | |
| Common-mode Reject Ratio-Min | 120 dB | |
| Common-mode Reject Ratio-Nom | 140 dB | |
| Input Offset Voltage-Max | 25 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 2 | |
| Neg Supply Voltage Limit-Max | -20 V | |
| Neg Supply Voltage-Nom (Vsup) | -3 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 5.5 V/us | |
| Supply Current-Max | 0.4 mA | |
| Supply Voltage Limit-Max | 20 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 2500 | |
| Width | 3.9 mm |
Alternate Parts for OPA2191ID
This table gives cross-reference parts and alternative options found for OPA2191ID. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OPA2191ID, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| OPA2191IDR | Low-power, 36-V, CMOS precision e-trim™ operational amplifier 8-SOIC -40 to 125 | Texas Instruments | OPA2191ID vs OPA2191IDR |
