Connectors Headers and Edge Type Connectors PH2-06-UA

PH2-06-UA
Description: Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Overview of PH2-06-UA by Adam Technologies Inc

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
  • Distributor Offerings: ( 9 listings )
  • Number of FFF Equivalents: ( 0 replacements )
  • CAD Models: ( Available )
  • Number of Functional Equivalents: ( 10 options )
  • Part Data Attributes ( Available )
  • Reference Designs: ( Not Available )

Price & Stock for PH2-06-UA by Adam Technologies Inc

Part # Manufacturer Description Stock Price Buy
DISTI # 2057-PH2-06-UA-ND
DigiKey CONN HEADER VERT 6POS 2.54MM Min Qty: 1 Lead time: 14 Weeks Container: Bulk 11660
In Stock
  • 1 $0.1200
  • 10 $0.0910
  • 100 $0.0690
  • 500 $0.0573
  • 1,000 $0.0530
  • 5,000 $0.0444
  • 10,000 $0.0413
$0.0413 / $0.1200 Buy Now
DISTI # 737-PH2-06-UA
Mouser Electronics Headers & Wire Housings CONN HEADER VERT 6POS 2.54MM RoHS: Compliant 6588
  • 1 $0.1100
  • 5 $0.0930
  • 10 $0.0710
  • 25 $0.0690
  • 100 $0.0580
  • 500 $0.0510
  • 1,000 $0.0440
$0.0440 / $0.1100 Buy Now
DISTI # 70949531
RS Pin Header 6P .100" Pitch Plug | Adam Tech PH2-06-UA RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 995
  • 1 $0.0710
  • 15 $0.0600
  • 50 $0.0570
  • 100 $0.0540
  • 250 $0.0510
$0.0510 / $0.0710 Buy Now
Future Electronics 6 Pin Dual Row Straight Header 2.54mm Pitch Gold Flash RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks Container: Bag 0
Bag
  • 1,000 $0.0477
  • 4,000 $0.0454
  • 10,000 $0.0440
  • 25,000 $0.0426
  • 40,000 $0.0405
$0.0405 / $0.0477 Buy Now
DISTI # ADTPH2-06-UA
Heilind Electronics   Americas - 4152 in Stock
  • 1 $0.0482
  • 4,900 $0.0391
  • 5,537 $0.0391
$0.0391 / $0.0482 Buy Now
Onlinecomponents.com Pin Header Vertical 6Pos 2.54mm - Bag RoHS: Compliant 0
  • 1,000 $0.0525
  • 5,000 $0.0407
  • 10,000 $0.0388
  • 25,000 $0.0377
  • 50,000 $0.0361
  • 100,000 $0.0320
  • 150,000 $0.0311
  • 250,000 $0.0307
$0.0307 / $0.0525 Buy Now
DISTI # 83647931
Verical Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bag RoHS: Compliant Min Qty: 191 Package Multiple: 1 Date Code: 2431 Americas - 9932
  • 191 $0.0609
  • 500 $0.0501
  • 1,000 $0.0433
  • 5,000 $0.0380
  • 10,000 $0.0337
$0.0337 / $0.0609 Buy Now
DISTI # ADTPH2-06-UA
Interstate Connecting Components   1384
  • 1 $0.0482
  • 4,900 $0.0391
  • 5,537 $0.0391
$0.0391 / $0.0482 Buy Now
Powell Electronics CONN HEADER VERT 6POS 2.54MM Min Qty: 1 10960
  • 1 $0.0502
  • 10 $0.0476
  • 25 $0.0460
  • 50 $0.0445
  • 100 $0.0431
$0.0431 / $0.0502 Buy Now

CAD Models for PH2-06-UA by Adam Technologies Inc
You need to Sign In or Sign Up to download CAD models.

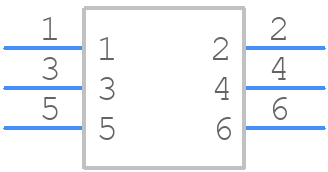

  • Part Symbol
    Part Symbol

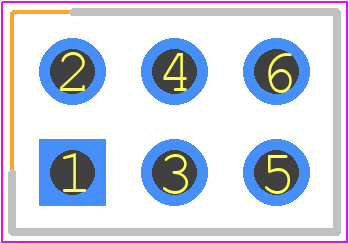

  • Footprint
    footprint
  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for PH2-06-UA by Adam Technologies Inc
Parametric Data

PH2-06-UA
Adam Technologies Inc
Buy Now
-
-
Rohs Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
ADAM TECHNOLOGIES INC
Reach Compliance Code
compliant
ECCN Code
EAR99
HTS Code
8536.69.40.40
Samacsys Manufacturer
Adam Tech
Body Breadth
0.197 inch
Body Depth
0.098 inch
Body Length
0.3 inch
Connector Type
BOARD CONNECTOR
Contact Finish Mating
AU ON NI
Contact Finish Termination
GOLD OVER NICKEL
Contact Gender
MALE
Contact Material
BRASS
Contact Pattern
RECTANGULAR
Contact Resistance
20 mΩ
Contact Style
SQ PIN-SKT
DIN Conformance
NO
Dielectric Withstanding Voltage
1000VAC V
Filter Feature
NO
IEC Conformance
NO
Insulation Resistance
5000000000 Ω
Insulator Color
BLACK
Insulator Material
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code
e4
MIL Conformance
NO
Mating Contact Pitch
0.1 inch
Mating Contact Row Spacing
0.1 inch
Mixed Contacts
NO
Mounting Option 1
LOCKING
Mounting Style
STRAIGHT
Mounting Type
BOARD
Number Of Connectors
ONE
Number Of PCB Rows
2
Number of Rows Loaded
2
Operating Temperature-Max
105 °C
Operating Temperature-Min
-55 °C
Option
GENERAL PURPOSE
PCB Contact Pattern
RECTANGULAR
PCB Contact Row Spacing
2.54 mm
Plating Thickness
FLASH inch
Polarization Key
POLARIZED HOUSING
Rated Current (Signal)
3 A
Reference Standard
UL
Terminal Length
0.12 inch
Terminal Pitch
2.54 mm
Termination Type
SOLDER
Total Number of Contacts
6
UL Flammability Code
94V-0
Want to compare parts?
  1. PH2-06-UA
    Adam Technologies Inc
    Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle
    VS

Alternate Parts for PH2-06-UA

This table gives cross-reference parts and alternative options found for PH2-06-UA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PH2-06-UA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number Description Manufacturer Compare
AWL254D-G-Z-06A-D-R Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle, ROHS COMPLIANT ASSMANN WSW components GmbH PH2-06-UA vs AWL254D-G-Z-06A-D-R
95711-306H Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle Amphenol FCi PH2-06-UA vs 95711-306H
10-97-0063 Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle Molex PH2-06-UA vs 10-97-0063
69168-606 Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Black Insulator, Receptacle Amphenol FCi PH2-06-UA vs 69168-606
SL2-006-SH204/01-99 Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT E-tec Interconnect Ltd PH2-06-UA vs SL2-006-SH204/01-99
71277-506H Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle Amphenol FCi PH2-06-UA vs 71277-506H
M20-9460305 Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle Harwin PH2-06-UA vs M20-9460305
SL2-006-S113/02-95 Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT E-tec Interconnect Ltd PH2-06-UA vs SL2-006-S113/02-95
2406-5223TG Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle 3M Interconnect PH2-06-UA vs 2406-5223TG
M20-9440305 Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle Harwin PH2-06-UA vs M20-9440305
