PQAE50-D24-S5-T Information
PQAE50-D24-S5-T by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PQAE50-D24-S5-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Neutron USA | Module DC-DC 24VIN 1-OUT 5V 10A 50W 6-Pin Tray | 0 |
|
$121.4700 | Buy Now |
Part Details for PQAE50-D24-S5-T

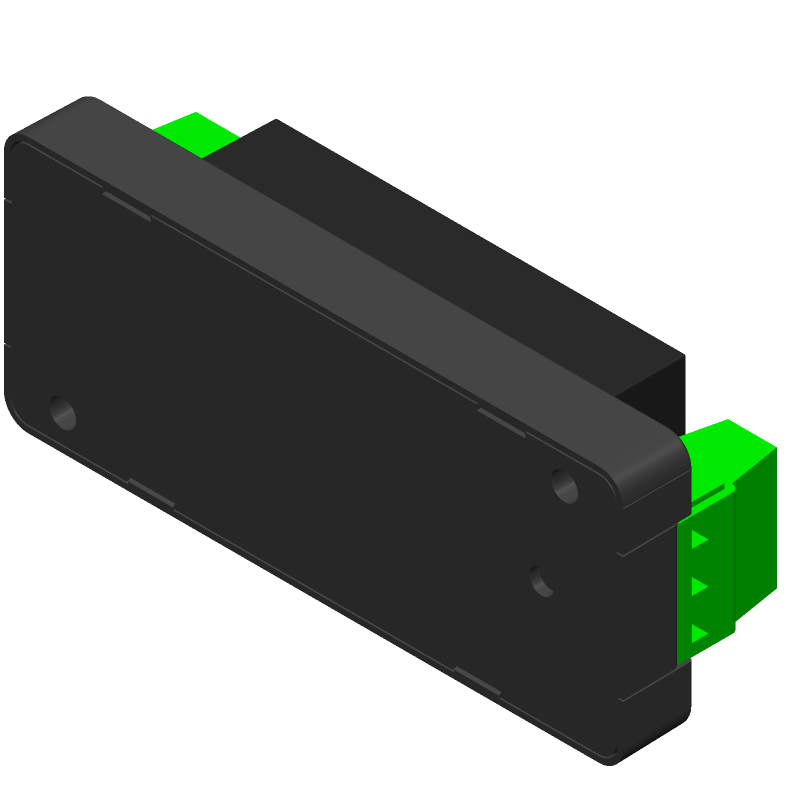

PQAE50-D24-S5-T CAD Models
PQAE50-D24-S5-T Part Data Attributes
|
|
PQAE50-D24-S5-T
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PQAE50-D24-S5-T
CUI Inc
DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Package Description | Dma, | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Analog IC - Other Type | Dc-Dc Regulated Power Supply Module | |
| Approvals | En | |
| Efficiency (Main Output) | 91% | |
| Input Voltage-Max | 40 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 24 V | |
| JESD-30 Code | R-XDMA-X | |
| Length | 76 Mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 10 A | |
| Output Voltage-Max | 5.5 V | |
| Output Voltage-Min | 4.5 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | Unspecified | |
| Package Code | DMA | |
| Package Shape | Rectangular | |
| Package Style | Microelectronic Assembly | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Protections | Input Under Voltage, Output Over Voltage, Over Current, Short Circuit | |
| Ripple Voltage (Main Out) | 0.0707 Vrms | |
| Surface Mount | No | |
| Technology | Hybrid | |
| Terminal Form | Unspecified | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Total Power Output-Max | 50 W | |
| Trim/Adjustable Output | Yes | |
| Warm-up Time | 0.12 S | |
| Width | 31.5 Mm |
