Resistors / Metal Glaze/Thick Film Resistors / RC0402FR-07100KL
Datasheets
RC0402FR-07100KL by:
YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP

Part Details for RC0402FR-07100KL by YAGEO Corporation

Results Overview of RC0402FR-07100KL by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RC0402FR-07100KL Information

RC0402FR-07100KL by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RC0402FR-07100KL

Part # Distributor Description Stock Price Buy
DISTI # 66R1125
Newark Res, Thick Film, 100K, 1%, 0.0625W, 0402, Reel, Resistance:100Kohm, Resistance Tolerance:± 1%, Power Rating:62.5Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose Rohs Compliant: Yes |Yageo RC0402FR-07100KL RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel 2220000
  • 10,000 $0.0020
$0.0020 Buy Now
DISTI # 67R9887
Newark Res, Thick Film, 100K, 1%, 0.0625W, 0402, Resistance:100Kohm, Resistance Tolerance:± 1%, Power Rating:62.5Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Qualification:- Rohs Compliant: Yes |Yageo RC0402FR-07100KL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 19765
  • 1 $0.1000
  • 25 $0.0070
  • 100 $0.0070
  • 250 $0.0060
  • 500 $0.0060
  • 1,000 $0.0050
  • 2,500 $0.0040
$0.0040 / $0.1000 Buy Now
DISTI # 67R9887
Avnet Americas SMD Chip Resistor, 100 kOhm, ? 1%, 62.5 mW, 0402 [1005 Metric], Thick Film, General Purpose - Product that comes on tape, but is not reeled (Alt: 67R9887) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks, 4 Days Container: Ammo Pack 19865 Partner Stock
  • 1 $0.0050
$0.0050 Buy Now
DISTI # RC0402FR-07100KL
Avnet Americas SMD Chip Resistor, 100 kOhm, ? 1%, 62.5 mW, 0402 [1005 Metric], Thick Film, General Purpose - Tape and Reel (Alt: RC0402FR-07100KL) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.0009
  • 20,000 $0.0009
  • 40,000 $0.0009
  • 60,000 $0.0009
  • 80,000 $0.0008
$0.0008 / $0.0009 Buy Now
DISTI # 66R1125
Avnet Americas SMD Chip Resistor, 100 kOhm, ? 1%, 62.5 mW, 0402 [1005 Metric], Thick Film, General Purpose - Tape and Reel (Alt: 66R1125) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 18 Weeks, 4 Days Container: Reel 0
  • 1 $0.0020
$0.0020 Buy Now
Bristol Electronics   Min Qty: 404 3382245
  • 404 $0.0124
  • 1,211 $0.0083
  • 4,218 $0.0021
  • 35,716 $0.0012
  • 104,168 $0.0011
  • 181,820 $0.0010
$0.0010 / $0.0124 Buy Now
Bristol Electronics   Min Qty: 223 8165
  • 223 $0.0225
  • 668 $0.0150
  • 2,335 $0.0038
$0.0038 / $0.0225 Buy Now
Bristol Electronics   192
RFQ
DISTI # RC0402FR-07100KL
TME Resistor: thick film, SMD, 0402, 100kΩ, 62.5mW, ±1%, -55÷155°C Min Qty: 100 0
  • 100 $0.0099
  • 1,000 $0.0028
  • 5,000 $0.0015
  • 10,000 $0.0012
  • 20,000 $0.0011
  • 50,000 $0.0010
  • 100,000 $0.0010
$0.0010 / $0.0099 RFQ
NexGen Digital   91710
RFQ
DISTI # WRC34084
Rutronik RC0402 100K 1% 0,063W TK100 RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Container: Reel Stock DE - 1480000
Stock HK - 690000
Stock US - 0
Stock SG - 1590000
  • 10,000 $0.0010
  • 30,000 $0.0008
  • 50,000 $0.0008
  • 300,000 $0.0008
$0.0008 / $0.0010 Buy Now
Velocity Electronics Our Stock 30000
RFQ
Chip 1 Exchange INSTOCK 23987
RFQ
DISTI # RC0402FR-07100KL
Avnet Abacus SMD Chip Resistor 100 kOhm 1 625 mW 0402 1005 Metric Thick Film General Purpose - Tape and Reel (Alt: RC0402FR-07100KL) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel Abacus - 21260000
Buy Now
Chip Stock   20000
RFQ
New Advantage Corporation RC Series 0402 0.063 W 100 kO �1% �100 ppm/�C Thick Film Chip Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 10000 25670000
  • 130,000 $0.0013
  • 25,670,000 $0.0012
$0.0012 / $0.0013 Buy Now
Vyrian Resistors 6594987
RFQ
Win Source Electronics Res Thick Film 0402 100K Ohm 1% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R / RES SMD 100K OHM 1% 1/16W 0402 166670
  • 166,670 $0.0004
  • 333,335 $0.0004
  • 500,000 $0.0004
  • 666,670 $0.0004
  • 833,335 $0.0004
  • 1,000,000 $0.0004
$0.0004 Buy Now

Part Details for RC0402FR-07100KL

RC0402FR-07100KL CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

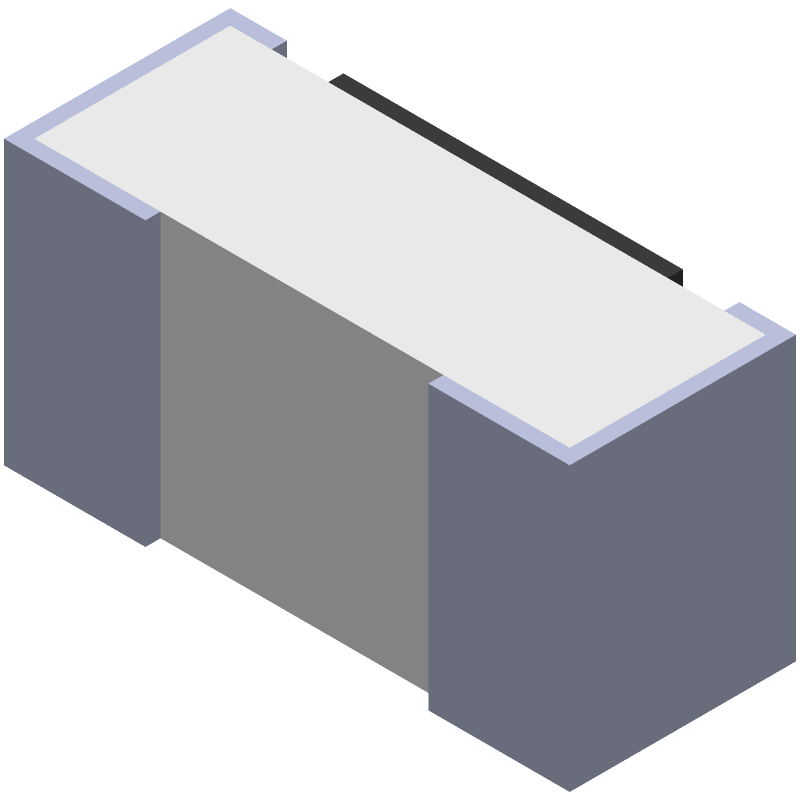

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RC0402FR-07100KL Part Data Attributes

Parametric Data
RC0402FR-07100KL YAGEO Corporation
Buy Now Datasheet
Compare Parts:
RC0402FR-07100KL YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 18 Weeks, 4 Days
Samacsys Manufacturer YAGEO
Additional Feature LASER TRIMMABLE
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.35 mm
Package Length 1 mm
Package Style SMT
Package Width 0.5 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.0625 W
Rated Temperature 70 °C
Resistance 100000 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 50 V

Alternate Parts for RC0402FR-07100KL

This table gives cross-reference parts and alternative options found for RC0402FR-07100KL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC0402FR-07100KL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0402WGF1003T5E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 100000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402 RC0402FR-07100KL vs 0402WGF1003T5E
RMCS1/16S100K1%A SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 100000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, RC0402FR-07100KL vs RMCS1/16S100K1%A
0402WGF1003C2 Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 100000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, RC0402FR-07100KL vs 0402WGF1003C2
0402WGF1003TD Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 100000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, RC0402FR-07100KL vs 0402WGF1003TD
RK73H1EGTPB1003F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, 0402, RC0402FR-07100KL vs RK73H1EGTPB1003F
RK73H1ERTTPB1003F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, 0402, RC0402FR-07100KL vs RK73H1ERTTPB1003F
MC0402P-1003-FT101Q RCD Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP RC0402FR-07100KL vs MC0402P-1003-FT101Q
CR0402-16W-1003FPT VENKEL LTD Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP RC0402FR-07100KL vs CR0402-16W-1003FPT
RMCS0402FT100K-HP SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP RC0402FR-07100KL vs RMCS0402FT100K-HP
RCS1005F1003CS Samsung Electro-Mechanics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 100000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, RC0402FR-07100KL vs RCS1005F1003CS

RC0402FR-07100KL Related Parts

RC0402FR-07100KL Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for RC0402FR-07100KL is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, RC0402FR-07100KL is compatible with lead-free soldering and meets the requirements of RoHS and REACH directives.

  • The MSL of RC0402FR-07100KL is level 1, which means it can withstand a maximum of 30 days in a standard ambient environment before soldering.

  • Yes, RC0402FR-07100KL is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The operating temperature range of RC0402FR-07100KL is -55°C to 125°C, making it suitable for a wide range of applications.
