SP3232EEY-L/TR by:

Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16, LEAD FREE, MO-153AB, TSSOP-16

Part Details for SP3232EEY-L/TR by MaxLinear Inc

Results Overview of SP3232EEY-L/TR by MaxLinear Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

SP3232EEY-L/TR Information

SP3232EEY-L/TR by MaxLinear Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for SP3232EEY-L/TR

Part # Distributor Description Stock Price Buy
CHIPMALL.COM LIMITED 235Kbps Transceiver TSSOP-16 RS232 ICs ROHS 47743
  • 1 $0.1135
  • 50 $0.1122
$0.1122 / $0.1135 Buy Now
LCSC 235Kbps Transceiver TSSOP-16 RS232 ICs ROHS 50185
  • 5 $0.2099
  • 50 $0.1660
  • 150 $0.1445
  • 500 $0.1254
  • 2,500 $0.1201
  • 5,000 $0.1169
$0.1169 / $0.2099 Buy Now
New Advantage Corporation SP3232E Series 235 kbps 5.5 V Surface Mount RS-232 Transceiver - TSSOP-16 RoHS: Compliant Min Qty: 1 Package Multiple: 2500 537500
  • 2,500 $0.1692
$0.1692 Buy Now

Part Details for SP3232EEY-L/TR

SP3232EEY-L/TR CAD Models

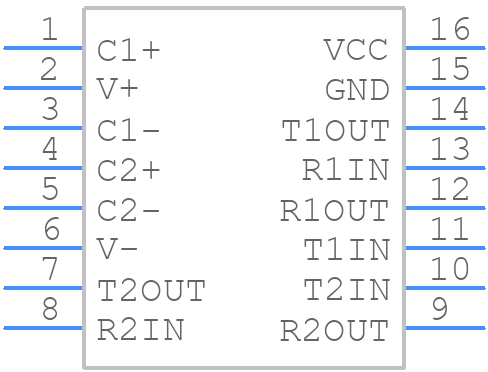

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SP3232EEY-L/TR Part Data Attributes

Parametric Data
SP3232EEY-L/TR MaxLinear Inc
Buy Now Datasheet
Compare Parts:
SP3232EEY-L/TR MaxLinear Inc Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16, LEAD FREE, MO-153AB, TSSOP-16
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MAXLINEAR INC
Package Description LEAD FREE, MO-153AB, TSSOP-16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer MaxLinear, Inc.
Differential Output NO
Driver Number of Bits 2
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-232; EIA-232-D; EIA-232-F; V.24; V.28; EIA-562; TIA-232; TIA-232-F; TIA-562
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 5 mm
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Receiver Number of Bits 2
Seated Height-Max 1.2 mm
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 4.4 mm
