Part Details for ST1S40IDR by STMicroelectronics
Results Overview of ST1S40IDR by STMicroelectronics
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Robotics and Drones
ST1S40IDR Information
ST1S40IDR by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ST1S40IDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC7801
|
Newark | Dc/Dc Conv, Sync Buck, 850Khz, Soic-8, Output Type:Adjustable, No. Of Outputs:1Outputs, Topology:Synchronous Buck (Step Down), Input Voltage Min:4V, Input Voltage Max:18V, Max Output Current:3A, Ic Case/Package:Soic, Efficiency:- Rohs Compliant: Yes |Stmicroelectronics ST1S40IDR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1923 |
|
$1.0700 / $1.2700 | Buy Now |
|
DISTI #
497-12968-1-ND
|
DigiKey | IC REG BUCK ADJ 3A 8SOIC Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5413 In Stock |
|
$0.8870 / $1.8200 | Buy Now |
|
DISTI #
ST1S40IDR
|
Avnet Americas | DC-DC Switching Buck (Step Down) Regulator, Adjustable, 850kHz, 4V-18Vin, 0.8V-18V/3A out, SOIC-8 - Tape and Reel (Alt: ST1S40IDR) COO: Italy RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 24 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.8241 / $0.9419 | Buy Now |
|
DISTI #
511-ST1S40IDR
|
Mouser Electronics | Switching Voltage Regulators 4A Peak Step-Down 4.0V to 18V 850 kHz RoHS: Compliant | 5038 |
|
$0.8640 / $1.8200 | Buy Now |
|
|
STMicroelectronics | 3 A DC step-down switching regulator COO: Italy RoHS: Compliant Min Qty: 1 | 5038 |
|
$0.9600 / $1.7800 | Buy Now |
|
|
Future Electronics | ST1S40 Series 18 V 3 A DC SMT Step-Down Switching Regulator - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 24 Weeks Container: Reel | 0Reel |
|
$0.8050 | Buy Now |
|
DISTI #
31037722
|
Verical | Conv DC-DC 4V to 18V Synchronous Step Down Single-Out 0.8V to 18V 4A 8-Pin SO N T/R RoHS: Compliant Min Qty: 35 Package Multiple: 1 | Americas - 9833 |
|
$0.8540 / $1.6800 | Buy Now |
|
|
Bristol Electronics | 5054 |
|
RFQ | ||
|
|
Bristol Electronics | 323 |
|
RFQ | ||
|
|
Rochester Electronics | ST1S40 - Power Management-DC-DC SWITCHING RoHS: Compliant Status: Active Min Qty: 1 | 5000 |
|
$0.8680 / $1.4000 | Buy Now |
US Tariff Estimator: ST1S40IDR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ST1S40IDR
ST1S40IDR CAD Models
-

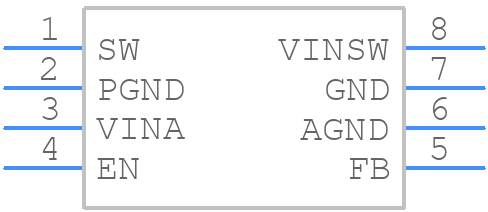

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ST1S40IDR Part Data Attributes
|
|
ST1S40IDR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ST1S40IDR
STMicroelectronics
Switching Regulator, Current-mode, 6A, 1000kHz Switching Freq-Max, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop, Sop8,.25 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Additional Feature | Also Operates In Adjustable Mode From 0.8 To 18v | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 4 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 6 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 1000 Khz | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 3.9 Mm |
ST1S40IDR Frequently Asked Questions (FAQ)
-
A good PCB layout for the ST1S40IDR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
-
To ensure stability, it's essential to follow the recommended output capacitor selection and layout guidelines, and to ensure that the output capacitor has a low equivalent series resistance (ESR) and a high ripple current rating.
-
The ST1S40IDR can handle a maximum input voltage of 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 14V for optimal performance and reliability.
-
The output voltage of the ST1S40IDR can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage, and R1 and R2 are the resistors in the feedback network.
-
The EN (enable) pin is used to enable or disable the regulator. When the EN pin is pulled low, the regulator is disabled, and the output voltage is turned off.
