STGAP2SICSANC by STMicroelectronics is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for STGAP2SICSANC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-STGAP2SICSANC-ND
|
DigiKey | DGTL ISO 2.83KV 1CH GATE DVR 8SO Min Qty: 2000 Lead time: 25 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.9435 | Buy Now |
|
DISTI #
STGAP2SICSANC
|
Avnet Americas | SiC MOSFET Driver, 1 Channel, Half Bridge, 4 A, 3.1 V to 5.25 V, 60 ns, 8 Pins, NSOIC - Rail/Tube (Alt: STGAP2SICSANC) COO: Taiwan (Province of China) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 25 Weeks, 0 Days Container: Tube | 0 |
|
$0.9152 / $0.9621 | Buy Now |
|
DISTI #
511-STGAP2SICSANC
|
Mouser Electronics | Galvanically Isolated Gate Drivers Galvanically isolated 4 A single gate driver for SiC MOSFETs RoHS: Compliant | 0 |
|
$0.9380 / $0.9390 | Order Now |
|
|
STMicroelectronics | Galvanically isolated 4 A single gate driver for SiC MOSFETs COO: Taiwan RoHS: Compliant Min Qty: 1 | 0 |
|
$1.3000 / $2.2000 | Buy Now |
|
|
Future Electronics | STGAP2SICS Series 5.25 V 4 A Galvanically Isolated Single Gate Driver - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 25 Weeks | 0 |
|
$0.8220 / $0.8410 | Buy Now |
US Tariff Estimator: STGAP2SICSANC by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STGAP2SICSANC
STGAP2SICSANC CAD Models
-

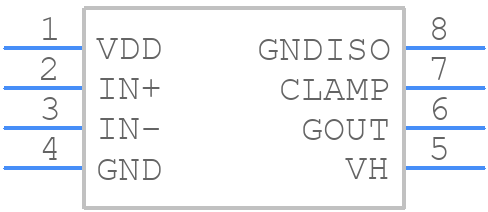

Part Symbol
-
