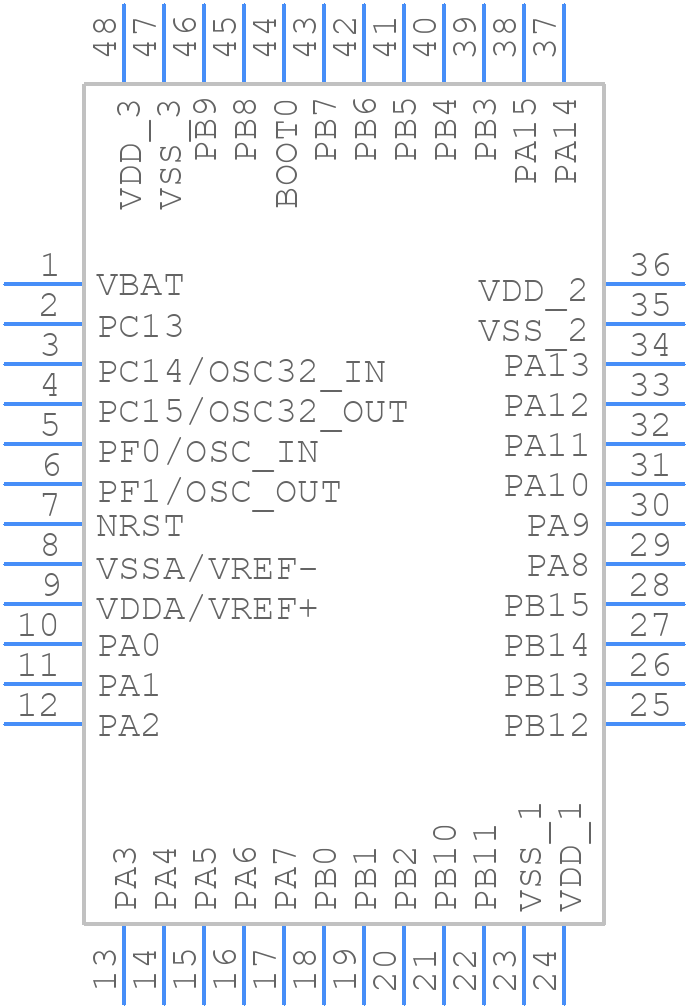

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32F334C8T6TR by STMicroelectronics
Results Overview of STM32F334C8T6TR by STMicroelectronics
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
STM32F334C8T6TR Information
STM32F334C8T6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32F334C8T6TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
STM32F334C8T6TR
|
Avnet Americas | - Tape and Reel (Alt: STM32F334C8T6TR) RoHS: Not Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$3.3268 / $3.8058 | Buy Now |
|
|
STMicroelectronics | Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, CCM, 12-bit ADC 5 MSPS, comparators, op-amp, hr timer COO: Malaysia RoHS: Compliant Min Qty: 1 | 0 |
|
$4.0900 / $6.2700 | Buy Now |
|
DISTI #
STM32F334C8T6TR
|
Avnet Silica | (Alt: STM32F334C8T6TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STM32F334C8T6TR
|
EBV Elektronik | (Alt: STM32F334C8T6TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Peripheral ICs | 616 |
|
RFQ |
Part Details for STM32F334C8T6TR
STM32F334C8T6TR CAD Models
STM32F334C8T6TR Part Data Attributes
|
|
STM32F334C8T6TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32F334C8T6TR
STMicroelectronics
Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, CCM, 12-bit ADC 5 MSPS, comparators, op-amp, hr timer
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Clock Frequency-Max | 32 MHz | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Length | 7 mm | |
| Number of I/O Lines | 37 | |
| Number of Terminals | 48 | |
| PWM Channels | YES | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Speed | 32 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.8 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for STM32F334C8T6TR
This table gives cross-reference parts and alternative options found for STM32F334C8T6TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F334C8T6TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STM32F334C8T7 | STMicroelectronics | $5.4981 | Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, CCM, 12-bit ADC 5 MSPS, comparators, op-amp, hr timer | STM32F334C8T6TR vs STM32F334C8T7 |
| STM32F334C8T6 | STMicroelectronics | Check for Price | Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, CCM, 12-bit ADC 5 MSPS, comparators, op-amp, hr timer | STM32F334C8T6TR vs STM32F334C8T6 |
| STM32F334C8T7TR | STMicroelectronics | Check for Price | Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, CCM, 12-bit ADC 5 MSPS, comparators, op-amp, hr timer | STM32F334C8T6TR vs STM32F334C8T7TR |
| STM32F334C8T6XXX | STMicroelectronics | Check for Price | RISC MICROCONTROLLER | STM32F334C8T6TR vs STM32F334C8T6XXX |
| STM32F334C8T7XXX | STMicroelectronics | Check for Price | RISC MICROCONTROLLER | STM32F334C8T6TR vs STM32F334C8T7XXX |
STM32F334C8T6TR Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32F334C8T6TR is 72 MHz, but it can be overclocked to 80 MHz with some limitations.
-
The clock settings can be configured using the Clock Configuration Tool (CCT) in STM32CubeMX or by writing code to configure the RCC (Reset and Clock Control) registers.
-
The main difference is that the STM32F334C8T6TR has a smaller package size (LQFP48) compared to the STM32F334R8T6TR (LQFP64). The 'C' in the part number indicates a smaller package size.
-
No, the STM32F334C8T6TR is a 3.3V device and should not be powered with 5V. Exceeding the maximum voltage rating can damage the device.
-
The STM32F334C8T6TR can be programmed using a variety of tools, including ST-Link, SWD, UART, and IAP (In-Application Programming). The most common method is using ST-Link and the STM32CubeProgrammer software.
