Microcontrollers and Processors / Microcontrollers / STM32F407VGT6
Datasheets
STM32F407VGT6 by:
STMicroelectronics

High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 168 MHz CPU, ART Accelerator, Ethernet, FSMC

Part Details for STM32F407VGT6 by STMicroelectronics

Results Overview of STM32F407VGT6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

STM32F407VGT6 Information

STM32F407VGT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F407VGT6

Part # Distributor Description Stock Price Buy
DISTI # 26AC4082
Newark 16/32-Bits Micros Rohs Compliant: Yes |Stmicroelectronics STM32F407VGT6 RoHS: Compliant Min Qty: 90 Package Multiple: 1 Date Code: 0 Container: Bulk 28895
  • 50 $8.3000
  • 180 $8.2100
  • 270 $7.7300
$7.7300 / $8.3000 Buy Now
DISTI # 75T8335
Newark 32 Bit Microcontroller, Ethernet Mac, Camera Interface, Arm Cortex-M4, 168 Mhz, 1 Mb, 196 Kb, 100 Rohs Compliant: Yes |Stmicroelectronics STM32F407VGT6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 250
  • 1 $9.5300
  • 10 $8.8500
  • 25 $8.2600
  • 50 $8.2600
  • 180 $8.1900
  • 270 $7.7300
$7.7300 / $9.5300 Buy Now
DISTI # STM32F407VGT6
Avnet Americas ARM MCU, Ethernet MAC, Camera Interface, STM32 Family STM32F4 Series Microcontrollers - Trays (Alt: STM32F407VGT6) COO: Philippines (the) RoHS: Compliant Min Qty: 90 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Tray 28895
  • 90 $8.0776
  • 100 $7.6410
  • 190 $7.4399
  • 450 $7.2491
  • 900 $7.0679
$7.0679 / $8.0776 Buy Now
STMicroelectronics High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 168 MHz CPU, ART Accelerator, Ethernet, FSMC COO: Malaysia RoHS: Compliant Min Qty: 1 1812
  • 1 $11.6200
  • 10 $8.9100
  • 25 $8.8200
  • 50 $8.2200
  • 100 $8.1700
  • 250 $7.6400
$7.6400 / $11.6200 Buy Now
DISTI # STM32F407VGT6
TME IC: STM32 ARM microcontroller, 168MHz, LQFP100, 1.8÷3.6VDC Min Qty: 1 0
  • 1 $12.0100
  • 3 $11.0300
  • 10 $10.4200
$10.4200 / $12.0100 RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 6
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # STM32F407VGT6
Avnet Silica ARM MCU Ethernet MAC Camera Interface STM32 Family STM32F4 Series Microcontrollers (Alt: STM32F407VGT6) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 16 Weeks, 0 Days Silica - 14760
Buy Now
DISTI # STM32F407VGT6
EBV Elektronik ARM MCU Ethernet MAC Camera Interface STM32 Family STM32F4 Series Microcontrollers (Alt: STM32F407VGT6) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 16 Weeks, 0 Days EBV - 21060
Buy Now
MacroQuest Electronics STOCK 5400
  • 1 $15.3800
$15.3800 Buy Now
Vyrian Peripheral ICs 12222
RFQ
Win Source Electronics IC MCU 32BIT 1MB FLASH 100LQFP 37060
  • 16 $3.2517
  • 33 $3.0420
  • 52 $2.9371
  • 74 $2.7273
  • 96 $2.6224
  • 120 $2.5175
$2.5175 / $3.2517 Buy Now

Part Details for STM32F407VGT6

STM32F407VGT6 CAD Models

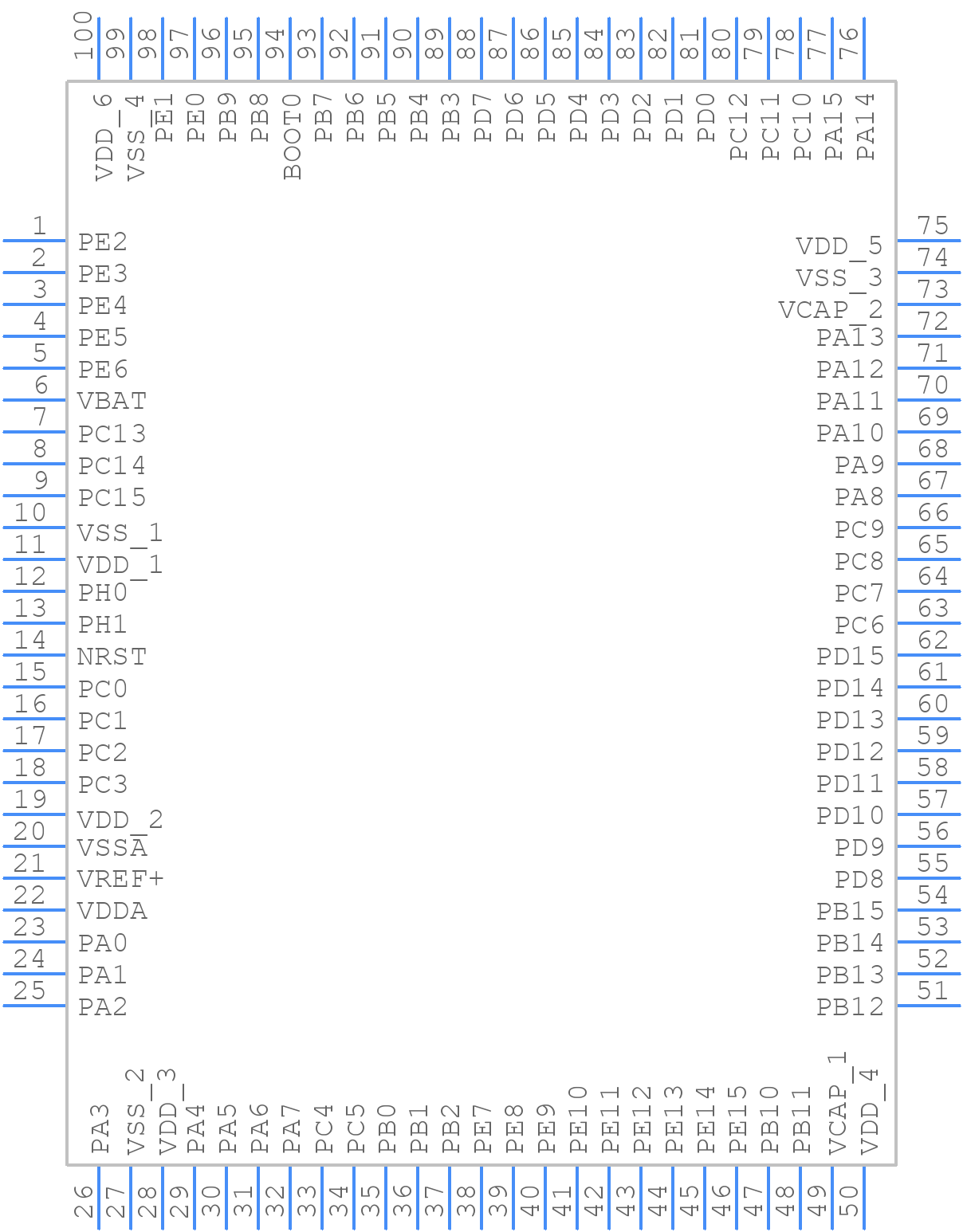

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F407VGT6 Part Data Attributes

Parametric Data
STM32F407VGT6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F407VGT6 STMicroelectronics High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 168 MHz CPU, ART Accelerator, Ethernet, FSMC
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Package Description LQFP-100
Pin Count 100
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family CORTEX-M4
Clock Frequency-Max 50 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 14 mm
Moisture Sensitivity Level 3
Number of I/O Lines 82
Number of Terminals 100
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 196608
ROM (words) 1048576
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 168 MHz
Supply Current-Max 109 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F407VGT6

This table gives cross-reference parts and alternative options found for STM32F407VGT6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F407VGT6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F407VGT7 STMicroelectronics $10.0579 High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 168 MHz CPU, ART Accelerator, Ethernet, FSMC STM32F407VGT6 vs STM32F407VGT7
STM32F407VGT6TR STMicroelectronics $9.1075 High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 168 MHz CPU, ART Accelerator, Ethernet, FSMC STM32F407VGT6 vs STM32F407VGT6TR
STM32F407VGT7TR STMicroelectronics Check for Price High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 168 MHz CPU, ART Accelerator, Ethernet, FSMC STM32F407VGT6 vs STM32F407VGT7TR
STM32F407VGT6XXX STMicroelectronics Check for Price 32-BIT, FLASH, 168MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F407VGT6 vs STM32F407VGT6XXX
STM32F407VGT7XXX STMicroelectronics Check for Price 32-BIT, FLASH, 168MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F407VGT6 vs STM32F407VGT7XXX

STM32F407VGT6 Related Parts

STM32F407VGT6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F407VGT6 is 168 MHz, but it can be overclocked to 180 MHz with some limitations.

  • The clock settings for the STM32F407VGT6 can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). You can use the STM32CubeMX tool to generate the clock configuration code.

  • The BOOT0 and BOOT1 pins are used to select the boot mode of the microcontroller. BOOT0 is used to select between the internal flash and the system memory, while BOOT1 is used to select between the internal flash and the external memory.

  • The DMA controller on the STM32F407VGT6 can be used to transfer data between peripherals and memory without CPU intervention. You need to configure the DMA channel, set the transfer mode, and enable the DMA interrupt.

  • The main difference between the STM32F407VGT6 and the STM32F407VG is the package type. The STM32F407VGT6 is available in a LQFP100 package, while the STM32F407VG is available in a LQFP64 package.
