Microcontrollers and Processors / Microcontrollers / STM32H723ZGT6
Datasheets
STM32H723ZGT6 by: STMicroelectronics

High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 1 MByte Flash, 564 KB RAM, 550 MHz CPU, L1 cache, external memory interface, subset of peripherals

Part Details for STM32H723ZGT6 by STMicroelectronics

Results Overview of STM32H723ZGT6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

STM32H723ZGT6 Information

STM32H723ZGT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32H723ZGT6

Part # Distributor Description Stock Price Buy
DISTI # 89AH1345
Newark Mcu, 32Bit, 550Mhz, 1.62V-3.6V, Lqfp-144 Rohs Compliant: Yes |Stmicroelectronics STM32H723ZGT6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 979
  • 1 $12.9700
  • 10 $10.6100
  • 25 $9.6500
  • 50 $9.2900
  • 120 $8.9300
  • 300 $8.5600
  • 540 $8.2000
$8.2000 / $12.9700 Buy Now
DISTI # STM32H723ZGT6
Avnet Americas ARM MCU, STM32 Family STM32H7 Series Microcontrollers, ARM Cortex-M7F, 32 bit, 550 MHz, 1 MB - Trays (Alt: STM32H723ZGT6) RoHS: Not Compliant Min Qty: 360 Package Multiple: 360 Lead time: 15 Weeks, 0 Days Container: Tray 0
  • 360 $7.6361
  • 720 $7.4499
  • 1,440 $7.3601
  • 2,160 $7.2725
  • 2,880 $7.1869
$7.1869 / $7.6361 Buy Now
STMicroelectronics High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 1 MByte Flash, 564 KB RAM, 550 MHz CPU, L1 cache, external memory interface, subset of peripherals RoHS: Compliant Min Qty: 1 1151
  • 1 $13.1700
  • 10 $10.3900
  • 25 $10.3900
  • 50 $9.1700
  • 100 $8.5700
  • 250 $8.4500
  • 360 $8.1300
$8.1300 / $13.1700 Buy Now
DISTI # STM32H723ZGT6
TME IC: STM32 ARM microcontroller, 550MHz, LQFP144, 1.62÷3.6VDC Min Qty: 1 29
  • 1 $15.7000
  • 5 $15.0800
  • 30 $11.8000
  • 60 $10.5700
$10.5700 / $15.7000 Buy Now
DISTI # STM32H723ZGT6
Avnet Silica ARM MCU STM32 Family STM32H7 Series Microcontrollers ARM CortexM7F 32 bit 550 MHz 1 MB (Alt: STM32H723ZGT6) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 16 Weeks, 0 Days Silica - 7320
Buy Now
DISTI # STM32H723ZGT6
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray 107
  • 1 $9.1200
  • 10 $7.9600
  • 50 $7.1700
  • 100 $6.7100
  • 200 $6.6100
  • 720 $6.1000
$6.1000 / $9.1200 Buy Now
DISTI # STM32H723ZGT6
EBV Elektronik ARM MCU STM32 Family STM32H7 Series Microcontrollers ARM CortexM7F 32 bit 550 MHz 1 MB (Alt: STM32H723ZGT6) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 16 Weeks, 0 Days EBV - 180
Buy Now
LCSC ARM-MSeries 550MHz LQFP-144(20x20) Microcontrollers (MCU/MPU/SOC) ROHS 4645
  • 1 $4.6029
  • 10 $3.9279
  • 30 $3.4516
  • 100 $3.0597
  • 500 $2.9356
  • 1,000 $2.8612
$2.8612 / $4.6029 Buy Now
MacroQuest Electronics ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018, Lead time:3-5days 1788 Stock,1530 Available
  • 1 $9.4100
  • 10 $8.7400
  • 25 $8.0800
  • 100 $7.4100
$7.4100 / $9.4100 Buy Now
Vyrian Peripheral ICs 4263
RFQ
Win Source Electronics IC MCU 32BIT 1MB FLASH 144LQFP / ARM® Cortex®-M7 series Microcontroller IC 32-Bit Single-Core 550MHz 1MB (1M x 8) FLASH 144-LQFP (20x20) 55995
  • 17 $3.1215
  • 35 $2.9202
  • 54 $2.8195
  • 77 $2.6181
  • 100 $2.5174
  • 125 $2.4167
$2.4167 / $3.1215 Buy Now

Part Details for STM32H723ZGT6

STM32H723ZGT6 CAD Models

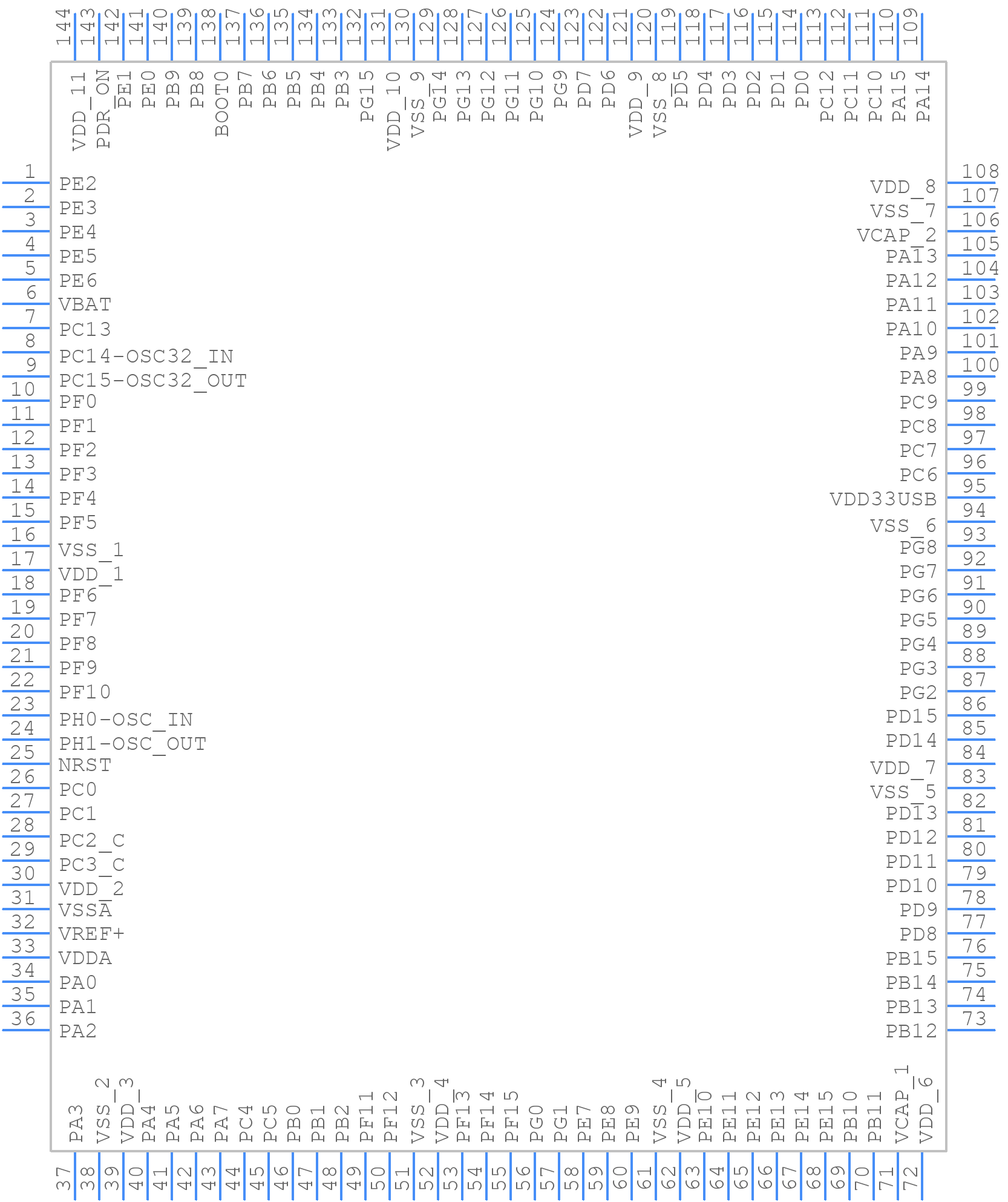

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

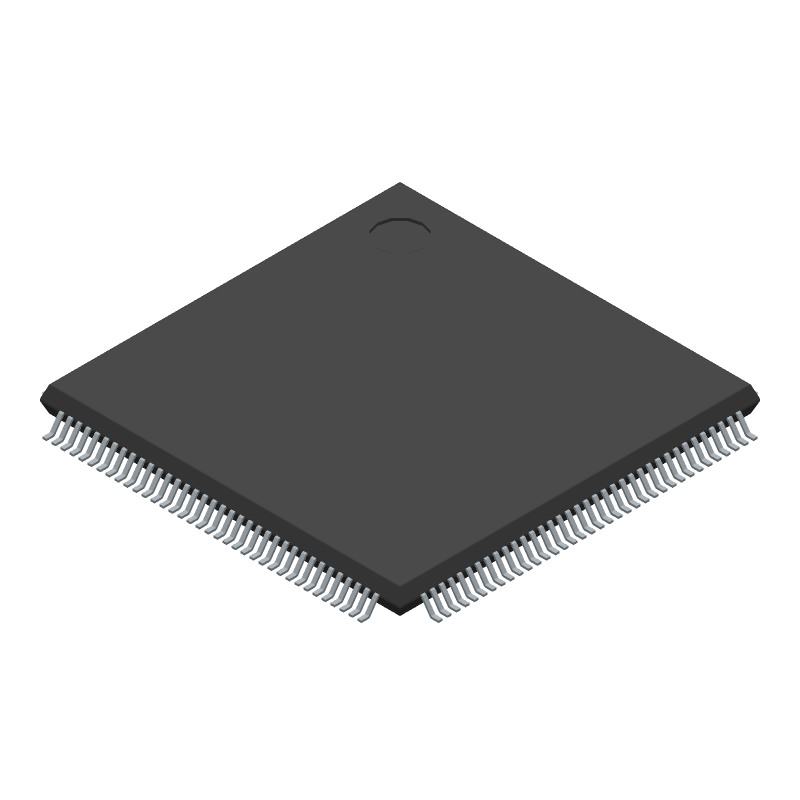

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32H723ZGT6 Part Data Attributes

Parametric Data
STM32H723ZGT6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32H723ZGT6 STMicroelectronics High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 1 MByte Flash, 564 KB RAM, 550 MHz CPU, L1 cache, external memory interface, subset of peripherals
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Reach Compliance Code compliant
Factory Lead Time 15 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family CORTEX-M7
Clock Frequency-Max 50 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-PQFP-G144
Length 20 mm
Low Power Mode YES
Number of DMA Channels 4
Number of External Interrupts
Number of I/O Lines 112
Number of Serial I/Os 14
Number of Terminals 144
Number of Timers 22
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
RAM (bytes) 577536
ROM (words) 1048576
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 550 MHz
Supply Current-Max 360 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 20 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

STM32H723ZGT6 Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the STM32H723ZGT6 is 550 MHz.

  • The STM32H723ZGT6 has 1 MB of flash memory.

  • The maximum ambient temperature range for the STM32H723ZGT6 is -40°C to 125°C.

  • Yes, the STM32H723ZGT6 supports USB OTG (On-The-Go) and can operate as a USB host or device.

  • The power consumption of the STM32H723ZGT6 in low-power mode (Stop mode) is approximately 20 μA/MHz.
