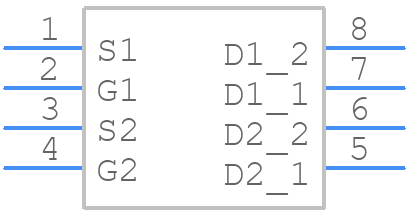

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STS1DNC45 by STMicroelectronics
Results Overview of STS1DNC45 by STMicroelectronics
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STS1DNC45 Information
STS1DNC45 by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for STS1DNC45
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC7739
|
Newark | Mosfet, Dual N-Ch, 450V, 0.4A, Soic, Channel Type:N Channel, Drain Source Voltage Vds N Channel:450V, Drain Source Voltage Vds P Channel:450V, Continuous Drain Current Id N Channel:400Ma, Continuous Drain Current Id P Channel:400Ma Rohs Compliant: Yes |Stmicroelectronics STS1DNC45 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.5380 / $1.7000 | Buy Now |
|
DISTI #
497-12678-1-ND
|
DigiKey | MOSFET 2N-CH 450V 0.4A 8SOIC Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
3337 In Stock |
|
$0.7869 / $2.6800 | Buy Now |
|
DISTI #
STS1DNC45
|
Avnet Americas | - Tape and Reel (Alt: STS1DNC45) COO: Singapore RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.7494 / $0.7968 | Buy Now |
|
DISTI #
511-STS1DNC45
|
Mouser Electronics | MOSFETs N-Ch 450 Volt 0.4 A RoHS: Compliant | 4686 |
|
$0.7860 / $2.6400 | Buy Now |
|
|
STMicroelectronics | Dual N-channel 450 V, 4.1 Omh typ., 0.4 A SuperMESH Power MOSFET in a SO-8 package COO: Singapore RoHS: Compliant Min Qty: 1 | 4686 |
|
$0.9400 / $2.5900 | Buy Now |
|
|
Future Electronics | Dual N-Channel 450 V 4.5 Ohm Surface Mount SuperMESH Power Mosfet - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks Container: Reel | 0Reel |
|
$0.8750 / $0.9000 | Buy Now |
|
|
Future Electronics | Dual N-Channel 450 V 4.5 Ohm Surface Mount SuperMESH Power Mosfet - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks Container: Reel | 0Reel |
|
$0.8750 / $0.9000 | Buy Now |
|
DISTI #
STS1DNC45
|
TME | Transistor: N-MOSFET, unipolar, 450V, 0.25A, Idm: 1.6A, 2W, SO8 Min Qty: 1 | 2490 |
|
$0.5380 / $1.5000 | Buy Now |
|
|
Ameya Holding Limited | Dual N-Channel 450 V 4.5 Ohm Surface Mount SuperMESH Power Mosfet - SOIC-8 | 22500 |
|
RFQ | |
|
DISTI #
STS1DNC45
|
IBS Electronics | DUAL N-CHANNEL 450V - 4.1 OHM - 0.4A SO-8 SUPERMESH POWER MOSFET Min Qty: 2500 Package Multiple: 1 | 2500 |
|
$0.3990 / $0.4130 | Buy Now |
Part Details for STS1DNC45
STS1DNC45 CAD Models
STS1DNC45 Part Data Attributes
|
|
STS1DNC45
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STS1DNC45
STMicroelectronics
Power Field-Effect Transistor, 0.4A I(D), 450V, 4.5ohm, 2-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT | |
| Package Description | So-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 13 Weeks | |
| Avalanche Energy Rating (Eas) | 30 Mj | |
| Configuration | Separate, 2 Elements With Built-In Diode | |
| DS Breakdown Voltage-Min | 450 V | |
| Drain Current-Max (ID) | 0.4 A | |
| Drain-source On Resistance-Max | 4.5 Ω | |
| FET Technology | Metal-Oxide Semiconductor | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 8 | |
| Operating Mode | Enhancement Mode | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 225 | |
| Polarity/Channel Type | N-Channel | |
| Power Dissipation-Max (Abs) | 1.6 W | |
| Pulsed Drain Current-Max (IDM) | 1.6 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon |
