STSPIN233
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STSPIN233

STSPIN233 CAD Models

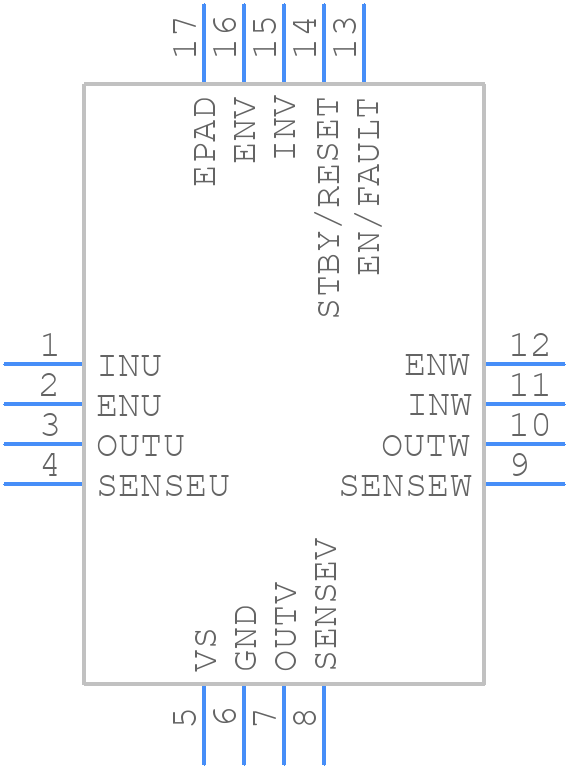

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STSPIN233 Part Data Attributes

Parametric Data
STSPIN233 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STSPIN233 STMicroelectronics Brushless DC Motor Controller
Rohs Code Yes
Part Life Cycle Code Active
Package Description Vqccn, Lcc16,.12sq,20
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 25 Weeks
Date Of Intro 2018-02-01
Analog IC - Other Type 3-Phase Brushless Dc Motor Controller
JESD-30 Code S-XQCC-N16
Length 3 Mm
Number of Functions 1
Number of Terminals 16
Package Body Material Unspecified
Package Code VQCCN
Package Equivalence Code LCC16,.12SQ,20
Package Shape Square
Package Style Chip Carrier, Very Thin Profile
Peak Reflow Temperature (Cel) Not Specified
Seated Height-Max 1 Mm
Supply Voltage-Max (Vsup) 10 V
Supply Voltage-Min (Vsup) 1.8 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount Yes
Terminal Form No Lead
Terminal Pitch 0.5 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 3 Mm
equivalents icon

STSPIN233 Frequently Asked Questions (FAQ)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V for reliable operation.

  • The recommended power-up sequence is: 1) Apply VCC, 2) Apply VM, 3) Apply EN (enable) signal. This ensures proper initialization of the device.

  • The RTH pin is used to set the overcurrent threshold. Connect a resistor from RTH to GND to set the threshold. A lower resistance value will trigger the overcurrent protection at a lower current level.

  • The STSPIN233 can be configured for half-bridge or three-phase motor control by connecting the appropriate pins and configuring the input signals. Refer to the application note AN5323 for detailed configuration and example circuits.
