TLE2426CLP Information
TLE2426CLP by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TLE2426CLP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-TLE2426CLP
|
Mouser Electronics | Voltage References 1/2Railvtl Gnd A 595 -TLE2426CLPR A 595- A 595-TLE2426CLPR RoHS: Compliant | 2906 |
|
$2.1800 / $4.0800 | Buy Now |
|
|
Bristol Electronics | V-Ref Adjustable 2V to 20V 20mA 3-Pin TO-92 Bulk | 321 |
|
RFQ | |
|
|
Quest Components | IC,GROUND GENERATOR,SIP,3PIN,PLASTIC | 11 |
|
$1.3110 / $1.4250 | Buy Now |
|
|
Quest Components | IC,GROUND GENERATOR,SIP,3PIN,PLASTIC | 8 |
|
$1.8200 / $2.2750 | Buy Now |
|
|
Rochester Electronics | IC VOL REF Series Adjustable 1.98V- 20.2V 20mA ±1% TO-226-3 Bulk RoHS: Compliant Status: Active Min Qty: 1 | 10863 |
|
$1.6600 / $2.0800 | Buy Now |
|
DISTI #
TLE2426CLP
|
TME | IC: virtual ground circuit, TO92, bulk, 20mA Min Qty: 1 | 253 |
|
$2.7600 / $3.7900 | Buy Now |
|
|
Chip Stock | V-Ref Adjustable 2V to 20V 20mA 3-Pin TO-92 Bulk | 355 |
|
RFQ | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 8 |
|
$1.3000 / $2.0000 | Buy Now |
US Tariff Estimator: TLE2426CLP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TLE2426CLP CAD Models
-

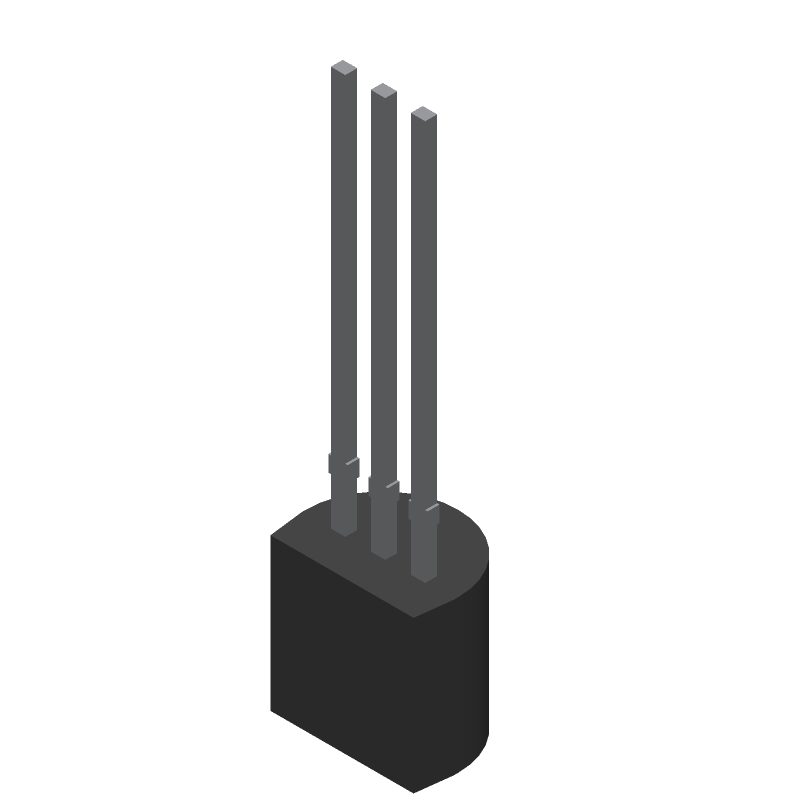

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLE2426CLP Part Data Attributes
|
|
TLE2426CLP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLE2426CLP
Texas Instruments
Analog Circuit, 1 Func, 1 Channel, PBCY3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TO-92 | |
| Package Description | To-92-3 | |
| Pin Count | 3 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Analog IC - Other Type | Analog Circuit | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e3 | |
| Length | 4.3 Mm | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | Round | |
| Package Style | Cylindrical | |
| Packing Method | Bulk | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.6 Mm | |
| Supply Current-Max (Isup) | 0.25 Ma | |
| Supply Voltage-Max (Vsup) | 40 V | |
| Supply Voltage-Min (Vsup) | 4 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | No | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Bottom | |
| Width | 4.3 Mm |
