Sensors/Transducers / Temperature Sensors / TMP100MDBVREP
Datasheets
TMP100MDBVREP by:

Enhanced Product, Temperature Sensor with I2C/SMBus Interface in SOT-23 6-SOT-23 -55 to 125

Part Details for TMP100MDBVREP by Texas Instruments

Results Overview of TMP100MDBVREP by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TMP100MDBVREP Information

TMP100MDBVREP by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TMP100MDBVREP Texas Instruments Enhanced Product, Temperature Sensor with I2C/SMBus Interface in SOT-23 6-SOT-23 -55 to 125

Price & Stock for TMP100MDBVREP

Part # Distributor Description Stock Price Buy
DISTI # 29AH8003
Newark Digital Temp Sensor, +/-3Degc, Sot-23-6, Ic Output Type:Digital, Sensing Accuracy Range:± 3°C, Sensing Temperature Min:-55°C, Sensing Temperature Max:125°C, Sensor Case Style:Sot-23, No. Of Pins:6Pins, Supply Voltage Min:2.7V, Supplyrohs Compliant: Yes |Texas Instruments TMP100MDBVREP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2551
  • 1 $6.5600
  • 10 $6.2700
  • 25 $5.9600
  • 50 $5.7000
  • 100 $5.4600
  • 250 $5.2800
  • 500 $5.1600
  • 1,000 $5.0800
$5.0800 / $6.5600 Buy Now
DISTI # TMP100MDBVREP
TME IC: temperature sensor, -55÷125°C, SOT23-6, SMD, Accur: ±1°C, 12bit Min Qty: 1 0
  • 1 $6.5000
  • 3 $5.5600
  • 10 $4.6000
  • 25 $4.4200
  • 50 $4.2300
  • 100 $4.0300
  • 250 $3.7000
  • 500 $3.3600
  • 1,000 $3.0900
$3.0900 / $6.5000 RFQ
Ameya Holding Limited IC DGTL TEMP SENSOR SOT23-6 30214
RFQ
LCSC SOT-23-6 Temperature Sensors ROHS 4
  • 1 $5.1981
  • 10 $5.0714
  • 30 $4.9873
  • 100 $4.9020
$4.9020 / $5.1981 Buy Now
New Advantage Corporation IC-100 DIGITAL TEMP. SENSOR -55C-125C SOT23-6 RoHS: Compliant Min Qty: 1 Package Multiple: 100 430
  • 100 $8.8000
  • 430 $8.2100
$8.2100 / $8.8000 Buy Now
Vyrian Sensors & Transducers 2259
RFQ
Win Source Electronics SENSOR TEMP I2C/SMBUS SOT23-6 7100
  • 8 $7.0115
  • 16 $6.5592
  • 24 $6.3330
  • 35 $5.8807
  • 45 $5.6545
  • 56 $5.4283
$5.4283 / $7.0115 Buy Now

Part Details for TMP100MDBVREP

TMP100MDBVREP CAD Models

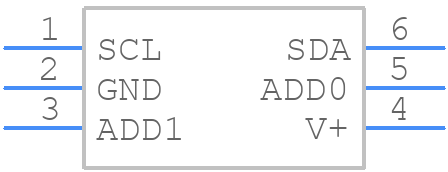

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TMP100MDBVREP Part Data Attributes

Parametric Data
TMP100MDBVREP Texas Instruments
Buy Now Datasheet
Compare Parts:
TMP100MDBVREP Texas Instruments Enhanced Product, Temperature Sensor with I2C/SMBus Interface in SOT-23 6-SOT-23 -55 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description SOT-23, 6 PIN
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Accuracy-Max (Cel) 2 Cel
Body Breadth 1.6 mm
Body Height 1.45 mm
Body Length or Diameter 2.9 mm
Housing PLASTIC
JESD-609 Code e4
Mounting Feature SURFACE MOUNT
Number of Bits 12
Number of Terminals 6
Operating Current-Max 0.075 mA
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Interface Type 2-WIRE INTERFACE
Package Body Material PLASTIC/EPOXY
Package Equivalence Code TSOP6,.11,37
Package Shape/Style RECTANGULAR
Sensors/Transducers Type TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.7 V
Surface Mount YES
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Termination Type SOLDER

Alternate Parts for TMP100MDBVREP

This table gives cross-reference parts and alternative options found for TMP100MDBVREP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMP100MDBVREP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP9802A5T-M/OTG Microchip Technology Inc Check for Price DIGITAL TEMP SENSOR-SERIAL, 12BIT(s), 3Cel, RECTANGULAR, SURFACE MOUNT, LEAD FREE, PLASTIC, SC-74A, SOT-23, 5 PIN TMP100MDBVREP vs MCP9802A5T-M/OTG
MCP9801A0T-M/MSG Microchip Technology Inc Check for Price DIGITAL TEMP SENSOR-SERIAL, 12BIT(s), 3Cel, SQUARE, SURFACE MOUNT, LEAD FREE, MO-187, MSOP-8 TMP100MDBVREP vs MCP9801A0T-M/MSG
MCP9801A5T-M/SNG Microchip Technology Inc Check for Price DIGITAL TEMP SENSOR-SERIAL, 12BIT(s), 3Cel, SQUARE, SURFACE MOUNT, LEAD FREE, MS-012-AA, SOIC-8 TMP100MDBVREP vs MCP9801A5T-M/SNG
MCP9802A0T-M/OTG Microchip Technology Inc Check for Price DIGITAL TEMP SENSOR-SERIAL, 12BIT(s), 3Cel, RECTANGULAR, SURFACE MOUNT, LEAD FREE, PLASTIC, SC-74A, SOT-23, 5 PIN TMP100MDBVREP vs MCP9802A0T-M/OTG
MCP9800A0T-M/OTG Microchip Technology Inc Check for Price IC,TEMPERATURE SENSOR,TSOP,5PIN,PLASTIC TMP100MDBVREP vs MCP9800A0T-M/OTG
MCP9802A0T-M/SNG Microchip Technology Inc Check for Price DIGITAL TEMP SENSOR-SERIAL, 12BIT(s), 3Cel, SQUARE, SURFACE MOUNT, LEAD FREE, MS-012-AA, SOIC-8 TMP100MDBVREP vs MCP9802A0T-M/SNG
AT30TS750-XM8-B Microchip Technology Inc Check for Price Serial Switch/Digital Sensor, 12 Bit(s), 3Cel, Square, 8 Pin, Surface Mount TMP100MDBVREP vs AT30TS750-XM8-B
AT30TSE752-MA8-T Atmel Corporation Check for Price Serial Switch/Digital Sensor, 12 Bit(s), 3Cel, Rectangular, 8 Pin, Surface Mount, 3 X 2 MM, 0.60 MM HEIGHT, GREEN, PLASTIC, MO-229, UDFN-8 TMP100MDBVREP vs AT30TSE752-MA8-T
MCP9802A0-M/OT Microchip Technology Inc Check for Price DIGITAL TEMP SENSOR-SERIAL, 12BIT(s), 3Cel, RECTANGULAR, SURFACE MOUNT, PLASTIC, SC-74A, SOT-23, 5 PIN TMP100MDBVREP vs MCP9802A0-M/OT
MCP9801T-M/MS Microchip Technology Inc $1.1303 DIGITAL TEMP SENSOR-SERIAL, 12BIT(s), 3Cel, SQUARE, SURFACE MOUNT, PLASTIC, MO-187, MSOP-8 TMP100MDBVREP vs MCP9801T-M/MS

TMP100MDBVREP Related Parts

TMP100MDBVREP Frequently Asked Questions (FAQ)

  • The TMP100MDBVREP can operate from -40°C to 125°C, but the accuracy of the temperature measurement is specified from -20°C to 100°C.

  • The TMP100MDBVREP defaults to 12-bit resolution. To configure it for 13-bit resolution, set the RES bit in the configuration register (address 0x01) to 1.

  • The conversion time for the TMP100MDBVREP is approximately 30 ms for a 12-bit conversion and 60 ms for a 13-bit conversion.

  • Yes, the TMP100MDBVREP supports multi-drop bus configuration. Up to eight devices can be connected to the same bus, each with a unique address set by the A0, A1, and A2 pins.

  • The TMP100MDBVREP has an alert function that can be configured to trigger an interrupt when the temperature exceeds a set threshold. The alert function is enabled by setting the ALERT_EN bit in the configuration register (address 0x01).
