Part Details for TS507CLT by STMicroelectronics
Results Overview of TS507CLT by STMicroelectronics
- Distributor Offerings: (35 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Automotive
Motor control systems
TS507CLT Information
TS507CLT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TS507CLT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18AC7858RL
|
Newark | Op-Amp, 1.9Mhz, 0.6V/Us, Sot-23-5, |Stmicroelectronics TS507CLT RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 4489 |
|
$0.6620 / $0.7990 | Buy Now |
|
DISTI #
18AC7858
|
Newark | Op-Amp, 1.9Mhz, 0.6V/Us, Sot-23-5, |Stmicroelectronics TS507CLT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4489 |
|
$0.6620 / $1.0000 | Buy Now |
|
DISTI #
79AH7546
|
Newark | Op-Amp, 1.9Mhz, 0.6V/Us, Sot-23-5, |Stmicroelectronics TS507CLT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.7410 / $0.7730 | Buy Now |
|
DISTI #
497-6944-6-ND
|
DigiKey | IC OP AMP 1CH SOT-23-5 Min Qty: 1 Container: Digi-Reel |
53742 Digi-Reel® |
|
$0.8116 / $1.5400 | Buy Now |
|
DISTI #
497-6944-1-ND
|
DigiKey | IC OP AMP 1CH SOT-23-5 Min Qty: 1 Container: Cut Tape |
53742 Cut Tape |
|
$0.8116 / $1.5400 | Buy Now |
|
DISTI #
497-6944-2-ND
|
DigiKey | IC OP AMP 1CH SOT-23-5 Min Qty: 3000 Container: Tape & Reel |
53742 Tape & Reel |
|
$0.7346 / $0.7592 | Buy Now |
|
DISTI #
93976033
|
Verical | Op Amp Single Precision Amplifier R-R I/O 5.5V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2620 | Americas - 57000 |
|
$0.4702 | Buy Now |
|
DISTI #
83715009
|
Verical | Op Amp Single Precision Amplifier R-R I/O 5.5V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2410 | Americas - 3000 |
|
$0.3882 / $0.4001 | Buy Now |
|
DISTI #
93253088
|
Verical | Op Amp Single Precision Amplifier R-R I/O 5.5V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 | Americas - 3000 |
|
$0.8291 / $1.2484 | Buy Now |
|
DISTI #
511-TS507CLT
|
Mouser Electronics | Precision Amplifiers Hi precision op amp RoHS: Compliant | 10990 |
|
$0.5400 / $1.0200 | Buy Now |
US Tariff Estimator: TS507CLT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

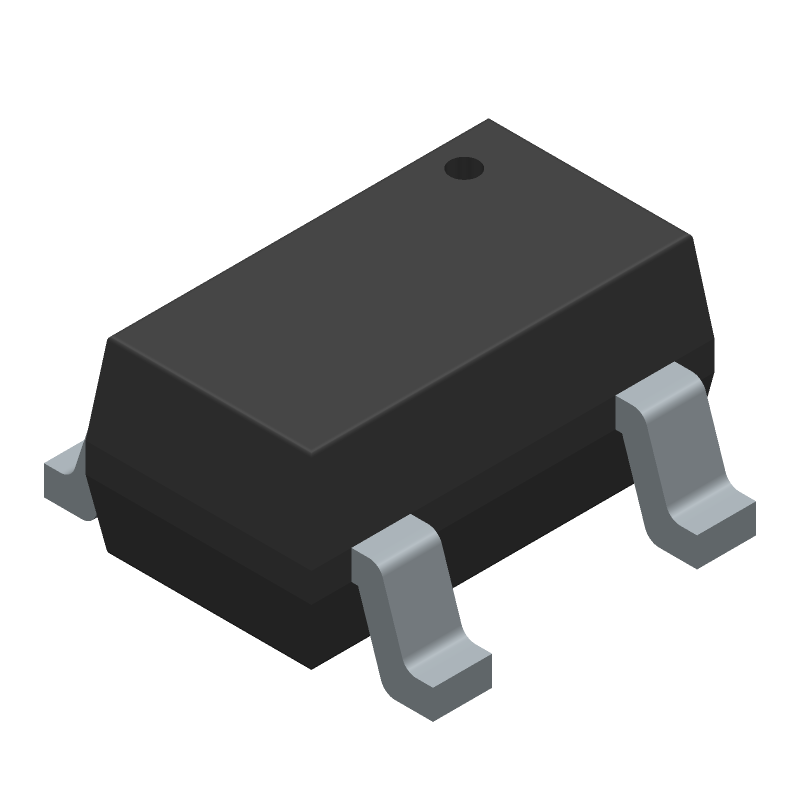

TS507CLT CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TS507CLT Part Data Attributes
|
|
TS507CLT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TS507CLT
STMicroelectronics
Operational Amplifier, 5 Func, 550uV Offset-Max, CMOS, PDSO1
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Package Description | Rohs Compliant, Micropack, Sot-23, 5 Pin | |
| Pin Count | 5 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.075 µA | |
| Bias Current-Max (IIB) @25C | 0.075 µA | |
| Common-mode Reject Ratio-Min | 94 Db | |
| Common-mode Reject Ratio-Nom | 115 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 550 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 Mm | |
| Low-Bias | No | |
| Low-Offset | Yes | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 5 | |
| Number of Terminals | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 Mm | |
| Slew Rate-Nom | 0.6 V/Us | |
| Supply Current-Max | 1.25 Ma | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial Extended | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1900 | |
| Voltage Gain-Min | 89125.09 | |
| Wideband | No | |
| Width | 1.625 Mm |
