TSV634IPT Information
TSV634IPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TSV634IPT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26R7220
|
Newark | Opamp, 880Khz, -40 To 125Deg C, No. Of Channels:4Channels, Gain Bandwidth Product:880Khz, Supply Voltage Range:1.5V To 5.5V, Ic Case/Package:Tssop, No. Of Pins:14Pins, Amplifier Type:General Purpose, Input Offset Voltage:3Mv Rohs Compliant: Yes |Stmicroelectronics TSV634IPT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1 |
|
$1.0300 / $1.4100 | Buy Now |
|
DISTI #
497-9001-1-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14TSSOP Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2005 In Stock |
|
$0.8461 / $1.7400 | Buy Now |
|
DISTI #
26R7220
|
Avnet Americas | OP Amp Quad GP R-R I/O 5.5V 14-Pin TSSOP T/R - Product that comes on tape, but is not reeled (Alt: 26R7220) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 1 Partner Stock |
|
$0.9480 / $1.7400 | Buy Now |
|
DISTI #
TSV634IPT
|
Avnet Americas | OP Amp Quad GP R-R I/O 5.5V 14-Pin TSSOP T/R - Tape and Reel (Alt: TSV634IPT) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.8208 / $0.8977 | Buy Now |
|
DISTI #
511-TSV634IPT
|
Mouser Electronics | Precision Amplifiers 60uA 880 KHz LV Precision RR RoHS: Compliant | 13324 |
|
$0.9060 / $1.7400 | Buy Now |
|
|
STMicroelectronics | Rail-to-rail input/output 5V CMOS Op-Amps, micro-power (60uA), GBP=880kHz, quad COO: France RoHS: Compliant Min Qty: 1 | 13324 |
|
$0.9200 / $1.7100 | Buy Now |
|
|
Future Electronics | TSSOP 14 BODY 4.4 PITCH 0.65 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks Container: Reel | 0Reel |
|
$0.7850 | Buy Now |
|
DISTI #
TSV634IPT
|
TME | IC: operational amplifier, 880kHz, Ch: 4, 1.5÷5.5VDC, TSSOP14 Min Qty: 1 | 2379 |
|
$0.9200 / $1.6600 | Buy Now |
|
DISTI #
TSV634IPT
|
IBS Electronics | OP AMP QUAD LOW VOLTAGE AMPLIFIER R-R I/O 5.5V 14-PIN TSSOP T/R Min Qty: 2500 Package Multiple: 1 | 2500 |
|
$1.1200 | Buy Now |
|
DISTI #
TSV634IPT
|
Avnet Silica | OP Amp Quad GP RR IO 55V 14Pin TSSOP TR (Alt: TSV634IPT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days | Silica - 5000 |
|
Buy Now |
US Tariff Estimator: TSV634IPT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TSV634IPT
TSV634IPT CAD Models
-

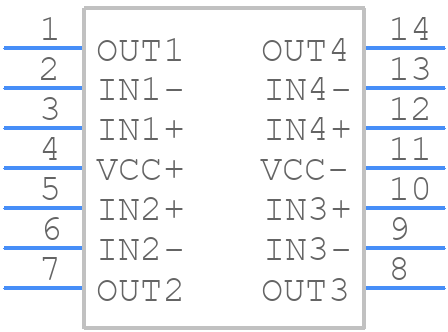

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TSV634IPT Part Data Attributes
|
|
TSV634IPT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TSV634IPT
STMicroelectronics
Operational Amplifier, 14 Func, 4500uV Offset-Max, CMOS, PDSO4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.0001 µA | |
| Bias Current-Max (IIB) @25C | 0.00001 µA | |
| Common-mode Reject Ratio-Min | 53 Db | |
| Common-mode Reject Ratio-Nom | 74 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 4500 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 14 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Slew Rate-Min | 0.2 V/Us | |
| Slew Rate-Nom | 0.27 V/Us | |
| Supply Current-Max | 0.288 Ma | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Unity Gain BW-Nom | 790 | |
| Voltage Gain-Min | 10000 | |
| Wideband | No | |
| Width | 4.4 Mm |
Alternate Parts for TSV634IPT
This table gives cross-reference parts and alternative options found for TSV634IPT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TSV634IPT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TSV634IYPT | STMicroelectronics | $1.2496 | Operational Amplifier, 14 Func, 4500uV Offset-Max, CMOS, PDSO4 | TSV634IPT vs TSV634IYPT |
TSV634IPT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the TSV634IPT is 670mW, calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RthJA) of 125°C/W.
-
To ensure stability, it's recommended to use a gain resistor (RG) between 1kΩ and 10kΩ, and a compensation capacitor (CC) between 10pF and 100pF, depending on the specific application and desired bandwidth.
-
To minimize noise and EMI, it's recommended to use a star-ground configuration, keep the input and output traces short and symmetrical, and use a ground plane to shield the device. Additionally, decoupling capacitors (e.g., 100nF) should be placed close to the device's power pins.
-
Yes, the TSV634IPT can be used in a single-supply configuration, but it's essential to ensure that the input common-mode voltage is within the specified range (VCC-1.5V to VCC-0.5V) to maintain optimal performance.
-
The TSV634IPT has internal diodes that protect the device from input voltages exceeding the supply voltage. However, it's still recommended to use external clamping diodes or voltage limiting circuits to prevent damage from excessive input voltages.
