0009507121 by: Molex

Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal, ROHS COMPLIANT

Part Details for 0009507121 by Molex

Results Overview of 0009507121 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation

0009507121 Information

0009507121 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 0009507121

Part # Distributor Description Stock Price Buy
DISTI # 23-0009507121-ND
DigiKey CONN RCPT HSG 12POS 3.96MM Min Qty: 1 Lead time: 18 Weeks Container: Bulk 358
In Stock
  • 1 $0.7100
  • 10 $0.6060
  • 25 $0.5680
  • 50 $0.5406
  • 100 $0.5148
  • 250 $0.4825
  • 500 $0.4594
  • 1,000 $0.4375
  • 2,500 $0.4101
$0.4101 / $0.7100 Buy Now
DISTI # 0009507121
Avnet Americas Conn Housing RCP 12 POS 3.96mm Crimp ST Cable Mount Bag - Bulk (Alt: 0009507121) COO: India RoHS: Compliant Min Qty: 9000 Package Multiple: 1500 Lead time: 15 Weeks, 0 Days Container: Bulk 0
  • 9,000 $0.3212
  • 21,000 $0.2748
  • 51,000 $0.2734
  • 100,500 $0.2720
  • 250,500 $0.2706
$0.2706 / $0.3212 Buy Now
DISTI # MOL09-50-7121
Heilind Electronics 156 KK TERM HSG O/RAMP NYLON 2CKT Americas - 0 in Stock
  • 9,000 $0.3123
  • 22,500 $0.2734
$0.2734 / $0.3123 Buy Now
Quest Components   1052
  • 1 $0.8850
  • 137 $0.2655
  • 754 $0.2301
$0.2301 / $0.8850 Buy Now
DISTI # 09-50-7121
TTI Headers & Wire Housings 12 POS HOUSING RoHS: Compliant pbFree: Pb-Free Min Qty: 16 Package Multiple: 1 Container: Bulk Americas - 9000
In Stock
  • 16 $0.3270
  • 179 $0.3230
  • 384 $0.3180
  • 1,000 $0.3130
  • 2,000 $0.3090
  • 9,000 $0.2800
  • 20,000 $0.2710
$0.2710 / $0.3270 Buy Now
DISTI # 000000000000080475
Sager Headers & Wire Housings 156 KK Term Hsg O/Ramp Nylon 12Ckt Min Qty: 9000 0
  • 9,000 $0.3147
  • 25,500 $0.2666
$0.2666 / $0.3147 Buy Now

US Tariff Estimator: 0009507121 by Molex

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

0009507121
Molex
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 0009507121

0009507121 Part Data Attributes

Parametric Data
0009507121 Molex
Buy Now Datasheet
Compare Parts:

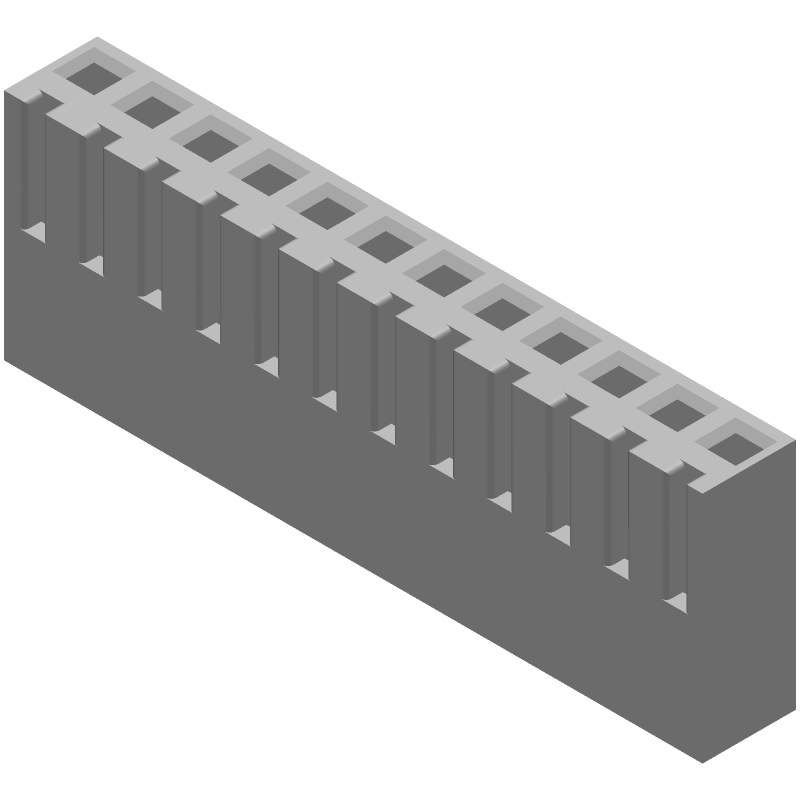

0009507121 Molex Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 16 Weeks
Body Breadth 0.25 Inch
Body Depth 0.625 Inch
Body Length 1.868 Inch
Body/Shell Style Receptacle
Connector Type Rectangular Power Connector
Contact Finish Mating Not Specified
Contact Finish Termination Not Applicable
Contact Gender Female
Contact Material Not Specified
Contact Style Sq Pin-Skt
DIN Conformance No
Empty Shell Yes
Filter Feature No
IEC Conformance No
Insulator Material Polyamide
MIL Conformance No
Mixed Contacts No
Mounting Type Cable
Operating Temperature-Min -40 °C
Option General Purpose
Reference Standard Csa; Ul
Termination Type Crimp
Total Number of Contacts 12
UL Flammability Code 94V-2

Alternate Parts for 0009507121

This table gives cross-reference parts and alternative options found for 0009507121. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0009507121, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DF1E-12S-2.5C(01) Hirose Electric Co Ltd Check for Price Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal, Socket 0009507121 vs DF1E-12S-2.5C(01)
1-2110992-2 TE Connectivity Check for Price Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal, Receptacle 0009507121 vs 1-2110992-2
5-172426-2 TE Connectivity Check for Price 12 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE 0009507121 vs 5-172426-2
97-00-1072 Molex Check for Price Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal 0009507121 vs 97-00-1072
0351561200 Molex Check for Price Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal, HALOGEN FREE AND ROHS COMPLIANT 0009507121 vs 0351561200
09-27-1200 Molex Check for Price Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal, 0009507121 vs 09-27-1200
3-172426-2 TE Connectivity Check for Price 12 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE 0009507121 vs 3-172426-2
1-147396-1 TE's AMP Check for Price 12 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE 0009507121 vs 1-147396-1
51067-1201 Molex Check for Price Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal, Receptacle, 0009507121 vs 51067-1201
22-01-4122 Molex Check for Price Board Connector, 12 Contact(s), 1 Row(s), Female, Crimp Terminal 0009507121 vs 22-01-4122
equivalents icon

0009507121 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.

  • Yes, the 0009507121 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.

  • The 0009507121 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to take additional measures, such as sealing or conformal coating, to ensure reliability and prevent water ingress.

  • The 0009507121 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.

  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. However, it's crucial to consult with Molex or a qualified engineer to ensure the connector can handle the desired wire size and meet the required performance and safety standards.
