0009507241 by: Molex

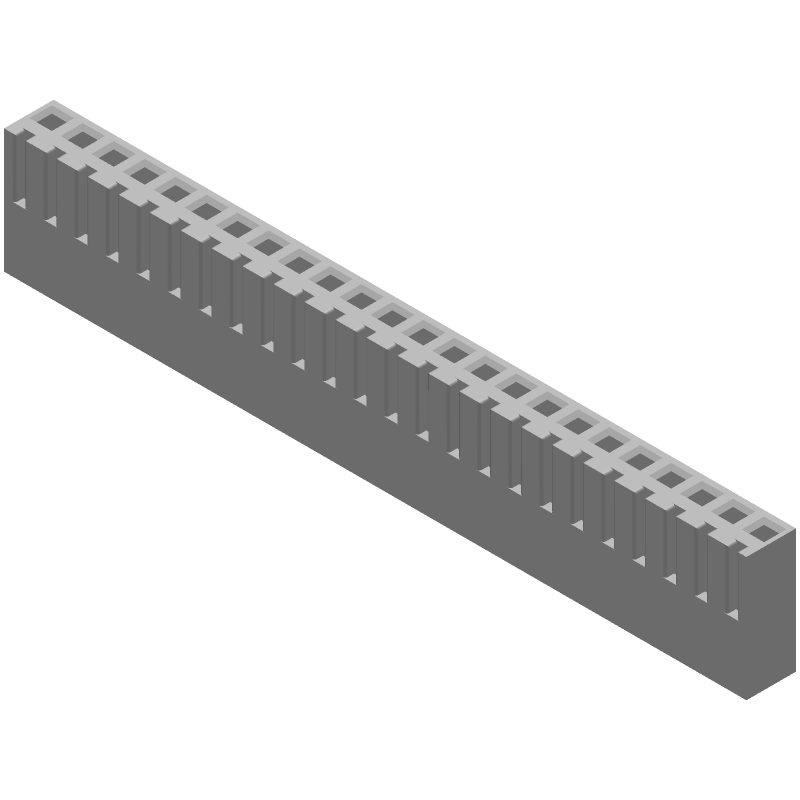

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle,

Part Details for 0009507241 by Molex

Results Overview of 0009507241 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation

0009507241 Information

0009507241 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 0009507241

Part # Distributor Description Stock Price Buy
DISTI # WM23655-ND
DigiKey CONN RCPT HSG 24POS 3.96MM Min Qty: 1 Lead time: 10 Weeks Container: Bulk 1122
In Stock
  • 1 $1.0700
  • 10 $0.9070
  • 25 $0.8500
  • 50 $0.8096
  • 100 $0.7708
  • 250 $0.7225
  • 500 $0.6880
  • 1,000 $0.6551
  • 2,500 $0.6141
$0.6141 / $1.0700 Buy Now
DISTI # 0009507241
Avnet Americas Conn Housing RCP 24 POS 3.96mm Crimp ST Cable Mount Bag - Bulk (Alt: 0009507241) COO: India RoHS: Compliant Min Qty: 2500 Package Multiple: 500 Lead time: 10 Weeks, 0 Days Container: Bulk 0
  • 2,500 $0.7382
  • 3,500 $0.6983
  • 6,000 $0.6799
  • 12,500 $0.5800
  • 25,000 $0.5529
$0.5529 / $0.7382 Buy Now
DISTI # MOL09-50-7241
Heilind Electronics 156 KK TERM HSG O/RAMP NYLON 4CKT Americas - 0 in Stock
  • 2,500 $0.7177
  • 10,000 $0.6283
$0.6283 / $0.7177 Buy Now
DISTI # 09-50-7241
TTI Headers & Wire Housings 3.96MM CRIMP HOUSING 24 POS RoHS: Compliant pbFree: Pb-Free Min Qty: 2500 Package Multiple: 1 Container: Bulk Americas - 0
  • 2,500 $0.6550
$0.6550 Buy Now
DISTI # 000000000000234268
Sager Headers & Wire Housings 156 KK Term Hsg O/Ramp Nylon 24Ckt Min Qty: 2500 0
  • 2,500 $0.7483
  • 4,000 $0.7233
  • 11,000 $0.6129
$0.6129 / $0.7483 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 2440
  • 1 $0.7700
  • 100 $0.5800
  • 1,000 $0.5000
$0.5000 / $0.7700 Buy Now

US Tariff Estimator: 0009507241 by Molex

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

0009507241
Molex
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 0009507241

0009507241 Part Data Attributes

Parametric Data
0009507241 Molex
Buy Now Datasheet
Compare Parts:
0009507241 Molex Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle,
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 11 Weeks
Body Breadth 0.25 Inch
Body Depth 0.625 Inch
Body Length 3.74 Inch
Body/Shell Style Receptacle
Connector Type Rectangular Power Connector
Contact Finish Mating Not Specified
Contact Finish Termination Not Applicable
Contact Gender Female
Contact Material Not Specified
Contact Style Sq Pin-Skt
Empty Shell Yes
Filter Feature No
Insulator Material Polyamide
Mixed Contacts No
Mounting Type Cable
Operating Temperature-Min -40 °C
Option General Purpose
Reference Standard Csa; Ul
Termination Type Crimp
Total Number of Contacts 24
UL Flammability Code 94V-2
