Capacitors / Ceramic Capacitors / 0805YC106KAT2A
Datasheets
0805YC106KAT2A by: Kyocera AVX Components

Ceramic Capacitor, Ceramic,

Part Details for 0805YC106KAT2A by Kyocera AVX Components

Results Overview of 0805YC106KAT2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

0805YC106KAT2A Information

0805YC106KAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 0805YC106KAT2A

Part # Distributor Description Stock Price Buy
DISTI # 08AK4862
Newark Cap, 10Uf, 16V, Mlcc, 0805, Capacitance:10Μf, Voltage(Dc):16V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:2.01Mm, Product Width:1.25Mm Rohs Compliant: Yes |Kyocera Avx 0805YC106KAT2A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1524
  • 1 $1.2700
  • 25 $0.7780
  • 50 $0.5860
  • 100 $0.5250
  • 250 $0.4740
  • 500 $0.4220
  • 1,000 $0.4140
$0.4140 / $1.2700 Buy Now
DISTI # 08AK4863
Newark Cap, 10Uf, 16V, Mlcc, 0805, Capacitance:10Μf, Voltage(Dc):16V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:2.01Mm, Product Width:1.25Mm Rohs Compliant: Yes |Kyocera Avx 0805YC106KAT2A RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 1 $0.3910
  • 5,000 $0.3820
  • 10,000 $0.3530
  • 20,000 $0.3290
  • 30,000 $0.3060
  • 50,000 $0.2930
$0.2930 / $0.3910 Buy Now
DISTI # KGM21AR71C106KU
Avnet Americas Multilayer Ceramic Capacitor, 10 uF, 16 V, ? 10%, X7R, 0805 [2012 Metric] - Tape and Reel (Alt: KGM21AR71C106KU) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel 18000
  • 3,000 $0.0538
  • 6,000 $0.0529
  • 12,000 $0.0520
  • 18,000 $0.0511
  • 24,000 $0.0501
$0.0501 / $0.0538 Buy Now
DISTI # 08AK4862
Avnet Americas Multilayer Ceramic Capacitor, 10 uF, 16 V, ? 10%, X7R, 0805 [2012 Metric] - Product that comes on tape, but is not reeled (Alt: 08AK4862) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 3 Days Container: Ammo Pack 1524 Partner Stock
  • 1 $0.9980
  • 25 $0.7190
  • 50 $0.6160
  • 100 $0.5130
  • 250 $0.4920
$0.4920 / $0.9980 Buy Now
DISTI # KGM21AR71C106KU
Avnet Abacus Multilayer Ceramic Capacitor 10 uF 16 V 10 X7R 0805 2012 Metric - Tape and Reel (Alt: KGM21AR71C106KU) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for 0805YC106KAT2A

0805YC106KAT2A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

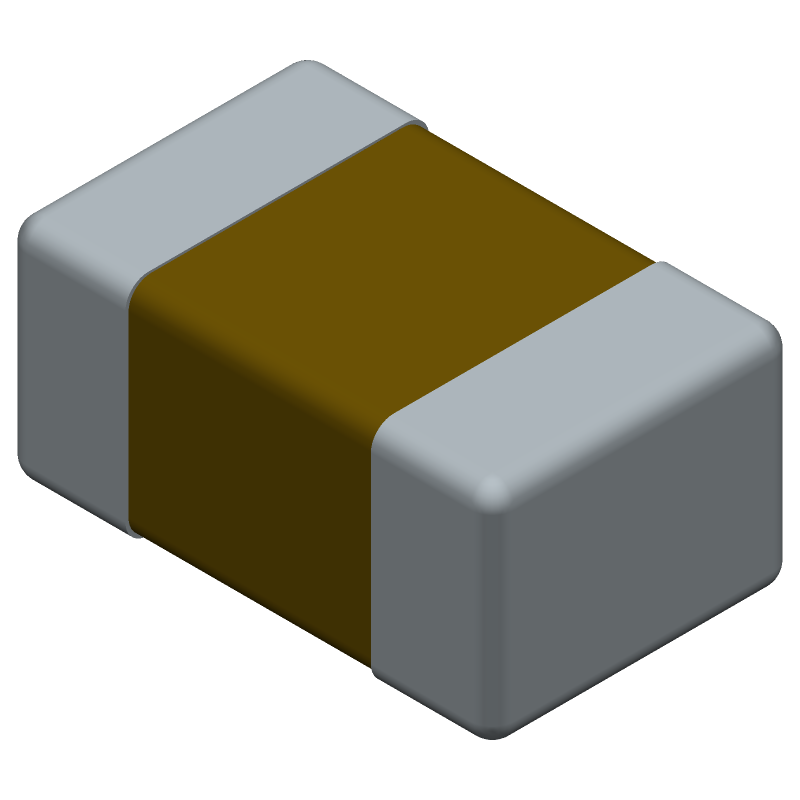

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

0805YC106KAT2A Part Data Attributes

Parametric Data
0805YC106KAT2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
0805YC106KAT2A Kyocera AVX Components Ceramic Capacitor, Ceramic,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 13 Weeks, 3 Days
Samacsys Manufacturer Kyocera AVX
Capacitance 10 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 1.52 mm
JESD-609 Code e3
Length 2.01 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR, EMBOSSED, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 16 V
Size Code 0805
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 1.25 mm

Alternate Parts for 0805YC106KAT2A

This table gives cross-reference parts and alternative options found for 0805YC106KAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 0805YC106KAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NMC0805X7R106K16TRPLPF NIC Components Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 0805, 0805YC106KAT2A vs NMC0805X7R106K16TRPLPF
CMC-016/106KX0805T13FF Tecate Group Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 0805, CHIP 0805YC106KAT2A vs CMC-016/106KX0805T13FF
NMC0805X7R106K16TRPLP3KF NIC Components Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 10uF, 0805, 0805YC106KAT2A vs NMC0805X7R106K16TRPLP3KF
C0805X7R160-106KNP VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 0805, CHIP 0805YC106KAT2A vs C0805X7R160-106KNP
GMC21X7R106K16NT Cal-Chip Electronics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT 0805YC106KAT2A vs GMC21X7R106K16NT
C0805X7R160-106KPBP VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 0805, 0805YC106KAT2A vs C0805X7R160-106KPBP
C0805X7R160-106KPBE VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 0805, 0805YC106KAT2A vs C0805X7R160-106KPBE
CMC-016/106KX0805TFF Tecate Group Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 0805, CHIP 0805YC106KAT2A vs CMC-016/106KX0805TFF
0805YC106KAT4A Kyocera AVX Components Check for Price Ceramic Capacitor, Ceramic, 0805YC106KAT2A vs 0805YC106KAT4A
GMC21X7R106K16NTDLF Cal-Chip Electronics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 10uF, 0805, 0805YC106KAT2A vs GMC21X7R106K16NTDLF

0805YC106KAT2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 0805YC106KAT2A capacitor is between 230°C to 250°C for a maximum of 3 seconds.

  • Yes, the 0805YC106KAT2A capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.

  • The maximum operating voltage for the 0805YC106KAT2A capacitor is 16V.

  • The 0805YC106KAT2A capacitor is rated for operation up to 125°C, but it's not recommended to use it in environments above 85°C without derating the voltage and current.

  • Yes, the 0805YC106KAT2A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
