1N5402-TP Information
1N5402-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N5402-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
833-1N5402-TP
|
Mouser Electronics | Rectifiers Standard 200V 3A RoHS: Compliant | 0 |
|
Order Now | |
|
|
Future Electronics | 1N5402 Series 200 V 3 A Through-Hole Standard Rectifier - DO-201AD RoHS: Compliant pbFree: Yes Min Qty: 1200 Package Multiple: 1200 Lead time: 18 Weeks Container: Reel | 0Reel |
|
$0.0619 / $0.0674 | Buy Now |
|
DISTI #
91549654
|
Verical | Diode Switching 200V 3A 2-Pin DO-201AD T/R RoHS: Exempt Min Qty: 1200 Package Multiple: 1200 Date Code: 2528 | Americas - 2400 |
|
$0.0649 / $0.0911 | Buy Now |
|
DISTI #
1N5402-TP
|
TME | Diode: rectifying, THT Min Qty: 1200 | 0 |
|
$0.0890 | RFQ |
|
DISTI #
1N5402-TP
|
IBS Electronics | RECTIFIER DIODE 1 PHASE 1 ELEMENT 3A 200V V(RRM) SILICON DO-201AD Min Qty: 1 Package Multiple: 1 | 0 |
|
$0.0867 / $0.0956 | Buy Now |
US Tariff Estimator: 1N5402-TP by Micro Commercial Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 1N5402-TP

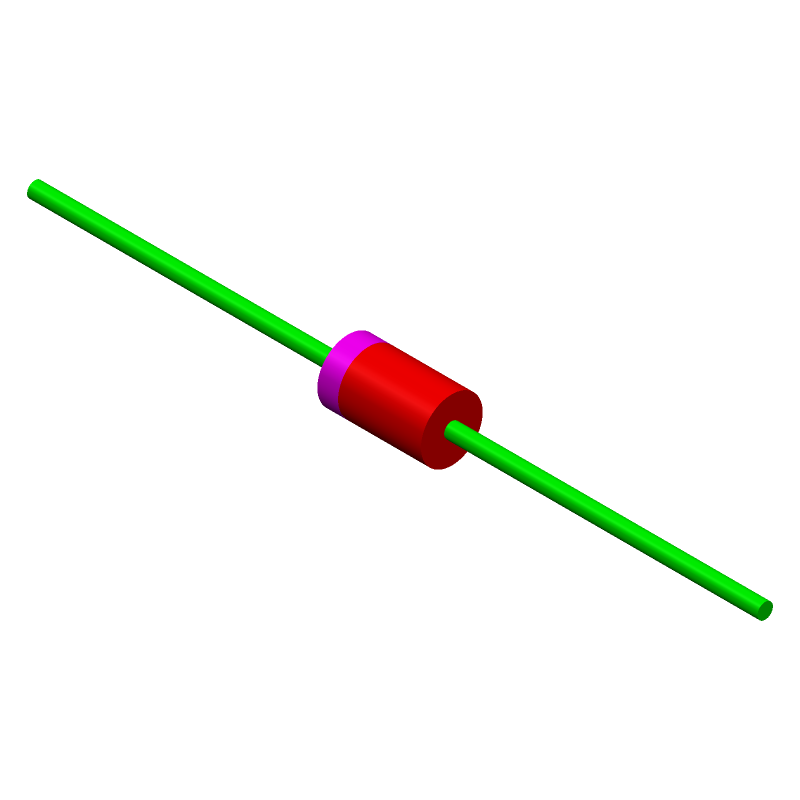

1N5402-TP CAD Models
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
1N5402-TP Part Data Attributes
|
|
1N5402-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
1N5402-TP
Micro Commercial Components
Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Part Package Code | DO-201AD | |
| Package Description | Rohs Compliant, Plastic Package-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Additional Feature | Low Leakage Current | |
| Application | General Purpose | |
| Case Connection | Isolated | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 1 V | |
| JEDEC-95 Code | DO-201AD | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 200 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Round | |
| Package Style | Long Form | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Reverse Current-Max | 5 µA | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Wire | |
| Terminal Position | Axial | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for 1N5402-TP
This table gives cross-reference parts and alternative options found for 1N5402-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N5402-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N5402-AP | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD | 1N5402-TP vs 1N5402-AP |
| 1N5402 | Taitron Components Inc | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD | 1N5402-TP vs 1N5402 |
| 1N5402-BP | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD | 1N5402-TP vs 1N5402-BP |
| 1N5402-LF | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD | 1N5402-TP vs 1N5402-LF |
| 1N5402GP-BP | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD | 1N5402-TP vs 1N5402GP-BP |
| 1N5402GP-AP | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD | 1N5402-TP vs 1N5402GP-AP |
| 1N5402GP-TP | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD | 1N5402-TP vs 1N5402GP-TP |
1N5402-TP Frequently Asked Questions (FAQ)
-
The maximum surge current rating of the 1N5402-TP is 150A for a single cycle, and 50A for repetitive surges.
-
No, the 1N5402-TP is a standard recovery diode, not suitable for high-frequency switching applications. It's recommended for general-purpose rectification and low-frequency switching applications.
-
The thermal resistance of the 1N5402-TP is approximately 10°C/W, which means that for every watt of power dissipated, the junction temperature will rise by 10°C.
-
Yes, the 1N5402-TP can be used in parallel to increase current handling, but it's essential to ensure that the diodes are matched and connected in a way that ensures equal current sharing.
-
Yes, the 1N5402-TP diode is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
