Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle,

Part Details for 22-29-2031 by Molex

Overview of 22-29-2031 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics

Price & Stock for 22-29-2031

Part # Distributor Description Stock Price Buy
DISTI # 0022292031
Avnet Americas Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Bag - Bulk (Alt: 0022292031) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk 12123
  • 1 $0.2367
$0.2367 Buy Now
DISTI # 538-22-29-2031
Mouser Electronics Headers & Wire Housings 3P VERT F/L HEADER RoHS: Compliant 10244
  • 1 $0.7400
  • 10 $0.6280
  • 100 $0.5640
  • 500 $0.4620
  • 1,000 $0.4100
  • 2,000 $0.3720
  • 4,000 $0.3590
  • 10,000 $0.3410
  • 24,000 $0.3330
$0.3330 / $0.7400 Buy Now
Onlinecomponents.com Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole KK® Bag RoHS: Compliant 1516 Partner Stock
  • 300 $0.2569
  • 1,500 $0.2403
  • 2,900 $0.2351
  • 5,900 $0.2309
  • 11,400 $0.2279
$0.2279 / $0.2569 Buy Now
Bristol Electronics   225
RFQ
Quest Components Header Connector, PCB Mount, Receptacle, 3 Contacts, Pin, 0.100 Pitch, PC Tail Terminal, Locking 4
  • 1 $1.2000
  • 5 $0.9600
$0.9600 / $1.2000 Buy Now
DISTI # 22-29-2031
TTI Headers & Wire Housings 3P VERT F/L HEADER RoHS: Compliant pbFree: Pb-Free Min Qty: 15 Package Multiple: 1 Container: Bulk Americas - 37190
In Stock
  • 15 $0.3390
  • 30 $0.3230
  • 50 $0.3170
  • 100 $0.3050
  • 1,600 $0.2770
  • 3,100 $0.2710
  • 5,000 $0.2470
$0.2470 / $0.3390 Buy Now
DISTI # 0022292031
Avnet Americas Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Bag - Bulk (Alt: 0022292031) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk 12123
  • 1 $0.2367
$0.2367 Buy Now
DISTI # 0022292031
Avnet Americas Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Bag - Bulk (Alt: 0022292031) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk 12123
  • 1 $0.2367
$0.2367 Buy Now
DISTI # MOL22-29-2031
Interstate Connecting Components 2.54MM KK HDR VT FRICLK VRA .5 3177
  • 1 $0.3053
  • 700 $0.2569
  • 1,600 $0.2490
  • 3,100 $0.2452
  • 6,200 $0.2415
$0.2415 / $0.3053 Buy Now
DISTI # SMC-22-29-2031
Sensible Micro Corporation 2.54Mm Kk Hdr Vt Friclk Vra .5Au 3Ckt Rohs Compliant: Yes |Molex RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days 21
  • 100 $0.1613
  • 500 $0.1537
  • 1,000 $0.1499
$0.1499 / $0.1613 RFQ
DISTI # 0022292031
Avnet Asia Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Bag (Alt: 0022292031) RoHS: Compliant Min Qty: 16000 Package Multiple: 16000 Lead time: 20 Weeks, 5 Days 0
RFQ
Component Electronics, Inc IN STOCK SHIP TODAY 315
  • 1 $0.6200
  • 100 $0.4600
  • 1,000 $0.4000
$0.4000 / $0.6200 Buy Now
DISTI # 1360131
element14 Asia-Pacific CONNECTOR, HEADER, 3POS, 1ROW, 2.54MM RoHS: Compliant Min Qty: 1 Container: Each 57957
  • 1 $0.5519
  • 100 $0.5402
  • 375 $0.5277
  • 1,500 $0.5204
  • 3,000 $0.5138
$0.5138 / $0.5519 Buy Now
Master Electronics Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole KK® Bag RoHS: Compliant 1516 Partner Stock
  • 300 $0.2569
  • 1,500 $0.2403
  • 2,900 $0.2351
  • 5,900 $0.2309
  • 11,400 $0.2279
$0.2279 / $0.2569 Buy Now

Part Details for 22-29-2031

22-29-2031 CAD Models

  • Part Symbol

    Part Symbol

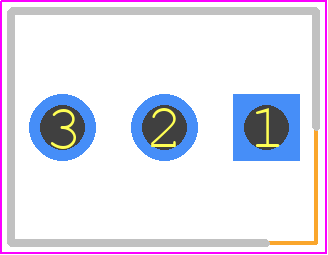

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

22-29-2031 Part Data Attributes

Parametric Data
22-29-2031 Molex
Buy Now Datasheet
Compare Parts:
22-29-2031 Molex Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MOLEX LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 20 Weeks
Samacsys Manufacturer Molex
Additional Feature KK
Body Breadth 0.23 inch
Body Depth 0.46 inch
Body Length 0.3 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination MATTE TIN OVER NICKEL
Contact Gender MALE
Contact Material BRASS
Contact Pattern RECTANGULAR
Contact Resistance 10 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability 25 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color WHITE
Insulator Material POLYAMIDE
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 75 °C
Operating Temperature-Min
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Plating Thickness 20u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 4 A
Reference Standard UL, CSA
Terminal Length 0.14 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 3
UL Flammability Code 94V-0
