Connectors / Headers and Edge Type Connectors / 2267440-6
Datasheets

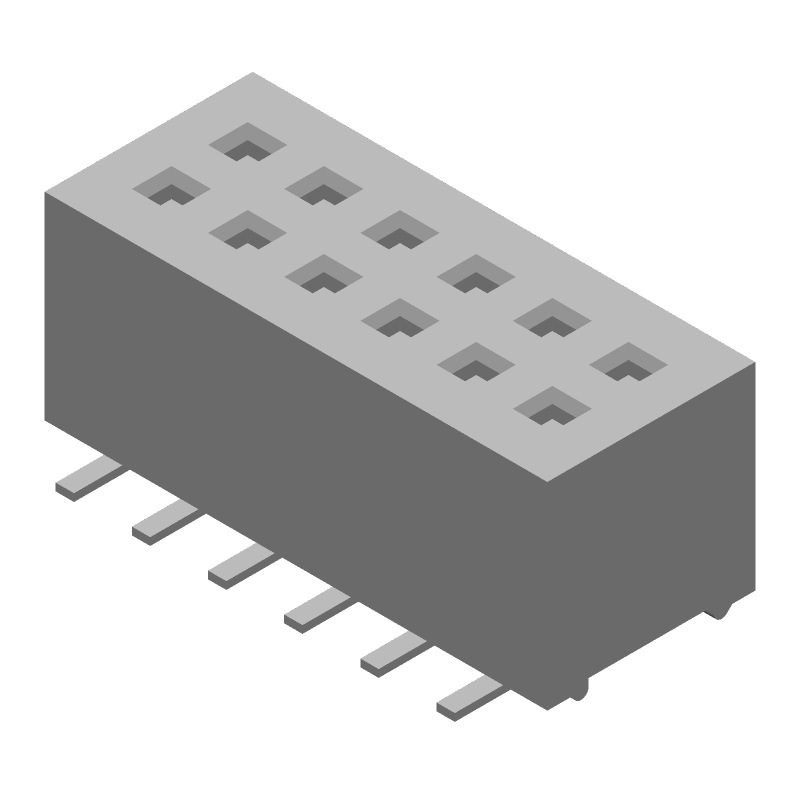

2267440-6 by: TE Connectivity

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Black Insulator, Receptacle

Part Details for 2267440-6 by TE Connectivity

Results Overview of 2267440-6 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare

2267440-6 Information

2267440-6 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 2267440-6

Part # Distributor Description Stock Price Buy
DISTI # 60AJ9561
Newark Conn, Rcpt, 12Pos, 2Row, 1Mm, Smt, Connector Systems:Board-To-Board, Pitch Spacing:1Mm, No. Of Rows:2Rows, No. Of Contacts:12Contacts, Connector Mounting:Surface Mount Straight, Product Range:Ampmodu Small Centerline Rohs Compliant: Yes |Te Connectivity 2267440-6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 720
  • 1 $0.4690
$0.4690 Buy Now
DISTI # 2267440-6
Avnet Americas Connector Socket Strip Receptacle 12 Position 1mm Solder Straight Surface Mount Tube - Rail/Tube (Alt: 2267440-6) COO: United States of America (the) Min Qty: 1200 Package Multiple: 80 Lead time: 8 Weeks, 3 Days Container: Tube 0
  • 1,200 $2.2149
  • 2,560 $1.9308
  • 5,040 $1.8816
  • 10,080 $1.8720
  • 20,160 $1.8624
$1.8624 / $2.2149 Buy Now
DISTI # 571-2267440-6
Mouser Electronics Board to Board & Mezzanine Connectors SCL 1.0 RCPT DR VT 012 SMT G3 TBK RoHS: Compliant 0
  • 1,200 $2.2700
  • 2,560 $2.1100
$2.1100 / $2.2700 Order Now
DISTI # AMP2267440-6
Heilind Electronics 1.0MM VRT PC SMT RCPT,12P,2 RW DUAL ENTRY,30u AU, PP CAP Americas - 900 in Stock
  • 80 $2.1715
  • 240 $2.1046
  • 400 $2.0728
  • 800 $2.0418
  • 1,200 $2.0418
$2.0418 / $2.1715 Buy Now
Onlinecomponents.com SCL 1.0 RCPT DR VT 012 SMT G3 TBK COO: United States RoHS: Compliant 1200 Partner Stock
  • 50 $4.1500
  • 100 $4.0900
  • 300 $4.0300
  • 600 $2.4800
  • 900 $1.9600
  • 1,200 $1.9200
  • 1,200 $4.2200
$1.9200 / $4.2200 Buy Now
DISTI # 90744603
Verical Conn Socket Strip SKT 12 POS 1mm Solder ST Top Entry SMD Tube RoHS: Compliant Min Qty: 26 Package Multiple: 1 Americas - 1200
  • 26 $2.4100
$2.4100 Buy Now
DISTI # 76067852
Verical Conn Socket Strip SKT 12 POS 1mm Solder ST Top Entry SMD Tube RoHS: Compliant Min Qty: 107 Package Multiple: 1 Americas - 720
  • 107 $0.7659
  • 250 $0.7351
  • 500 $0.7086
$0.7086 / $0.7659 Buy Now
DISTI # 22674406-TEC-0
TME 2267440-6 Min Qty: 27 1200
  • 27 $3.3002
  • 135 $3.2990
$3.2990 / $3.3002 Buy Now
DISTI # AMP2267440-6
Interstate Connecting Components 1.0MM VRT PC SMT RCPT,12P,2 RW DUAL ENTRY,30u AU, PP CAP 300
  • 80 $2.1715
  • 240 $2.1046
  • 400 $2.0728
  • 800 $2.0418
  • 1,200 $2.0418
$2.0418 / $2.1715 Buy Now
Powell Electronics Connectors Min Qty: 1200 792
  • 1,200 $2.4300
  • 2,500 $2.2400
  • 5,000 $2.1500
$2.1500 / $2.4300 Buy Now
DISTI # 000000000006273477
Sager Board to Board & Mezzanine Connectors SCL 1.0 RCPT DR VT 012 SMT G3 TBK Min Qty: 80 0
  • 80 $2.5800
$2.5800 Buy Now
DISTI # 2267440-6
Avnet Abacus Connector Socket Strip Receptacle 12 Position 1mm Solder Straight Surface Mount Tube (Alt: 2267440-6) RoHS: Compliant Min Qty: 1200 Package Multiple: 80 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics SCL 1.0 RCPT DR VT 012 SMT G3 TBK COO: United States RoHS: Compliant 1200 Partner Stock
  • 50 $4.1500
  • 100 $4.0900
  • 300 $4.0300
  • 600 $2.4800
  • 900 $1.9600
  • 1,200 $1.9200
  • 1,200 $4.2200
$1.9200 / $4.2200 Buy Now

US Tariff Estimator: 2267440-6 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

2267440-6
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 2267440-6

2267440-6 Part Data Attributes

Parametric Data
2267440-6 TE Connectivity
Buy Now Datasheet
Compare Parts:
2267440-6 TE Connectivity Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Black Insulator, Receptacle
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Body Depth 0.123 Inch
Body/Shell Style Receptacle
Connector Type Board Connector
Contact Finish Mating Not Applicable
Contact Gender Female
Contact Material Not Applicable
Contact Pattern Rectangular
DIN Conformance No
Dielectric Withstanding Voltage 1000vac V
EMI Shielded No
Empty Shell No
Filter Feature No
IEC Conformance No
Insulator Color Black
Insulator Material Liquid Crystal Polymer
MIL Conformance No
Mains Connector Rating 1a
Mixed Contacts No
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option General Purpose
Panel Mount No
Plating Thickness 30u Inch
Rated Current (Signal) 1 A
Rated Voltage 30 V
Reference Standard Ul
Terminal Pitch 1 Mm
Termination Type Surface Mount
Total Number of Contacts 12
UL Flammability Code 94V-0

Alternate Parts for 2267440-6

This table gives cross-reference parts and alternative options found for 2267440-6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 2267440-6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
2267465-6 TE Connectivity $0.4152 Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Black Insulator, Receptacle 2267440-6 vs 2267465-6
1MM-R-D06-VS-00-F-TBP TE Connectivity $2.1469 Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Black Insulator, Receptacle 2267440-6 vs 1MM-R-D06-VS-00-F-TBP
1MM-R-D06-VS-00-H-TBP TE Connectivity $2.6584 Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Black Insulator, Receptacle 2267440-6 vs 1MM-R-D06-VS-00-H-TBP
5-1375870-4 TE Connectivity Check for Price RCPT ASSY,12 POS,VERT,0.8MM MI 2267440-6 vs 5-1375870-4
