Memory / EEPROMs / 25LC256-I/P
Datasheets
25LC256-I/P by: Microchip Technology Inc

32K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8

Part Details for 25LC256-I/P by Microchip Technology Inc

Results Overview of 25LC256-I/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

25LC256-I/P Information

25LC256-I/P by Microchip Technology Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 25LC256-I/P

Part # Distributor Description Stock Price Buy
DISTI # 35M0846
Newark Serial Eeprom, 256Kbit, 10Mhz, Dip-8, Memory Size:256Kbit, Eeprom Memory Configuration:32K X 8Bit, Memory Interface Type:Serial Spi, Clock Frequency:10Mhz, Memory Case Style:Dip, No. Of Pins:8Pins, Supply Voltage Min:2.5V, Supply Rohs Compliant: Yes |Microchip 25LC256-I/P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 294
  • 1 $1.6500
  • 10 $1.6300
  • 25 $1.6000
  • 50 $1.5800
  • 120 $1.5500
  • 540 $1.5300
$1.5300 / $1.6500 Buy Now
DISTI # 25LC256-I/P
Avnet Americas EEPROM Serial-SPI 256K-bit 32K x 8 3.3V/5V 8-Pin PDIP - Rail/Tube (Alt: 25LC256-I/P) RoHS: Compliant Min Qty: 240 Package Multiple: 60 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 240 $0.8333
  • 360 $0.8064
  • 600 $0.7812
  • 1,200 $0.7575
  • 2,400 $0.7142
$0.7142 / $0.8333 Buy Now
DISTI # 25LC256-I/P
Microchip Technology Inc 256Kb SPI EEPROM, 2.5-5.5V, 8-PDIP, PDIP, Projected EOL: 2034-07-06 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 2410

Alternates Available
  • 1 $1.6500
  • 25 $1.6000
  • 100 $1.5200
  • 1,000 $1.4300
  • 5,000 $1.3700
$1.3700 / $1.6500 Buy Now
DISTI # 70045282
RS Microchip 25LC256-I/P Serial EEPROM Memory,256kbit,50ns,2.5 to 5.5V 8-Pin PDIP Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 155
  • 1 $1.8500
  • 10 $1.7500
  • 50 $1.6600
  • 100 $1.5700
$1.5700 / $1.8500 Buy Now
DISTI # 25LC256-I/P
TME IC: EEPROM memory, 256kbEEPROM, SPI, 32kx8bit, 2.5÷5.5V, 10MHz Min Qty: 1 212
  • 1 $1.9300
  • 10 $1.8500
  • 25 $1.7800
  • 120 $1.7300
$1.7300 / $1.9300 Buy Now
DISTI # SMC-25LC256-I/P
Sensible Micro Corporation 25Lc256 Series 256 Kbit (32K X 8) 5.5 V Through Hole Spi Bus Serial Eeprom-Dip-8 RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days 30
RFQ
DISTI # 25LC256-I/P
Avnet Silica EEPROM SerialSPI 256Kbit 32K x 8 33V5V 8Pin PDIP (Alt: 25LC256-I/P) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # 25LC256-I/P
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 860
  • 1 $1.4500
  • 100 $1.4300
$1.4300 / $1.4500 Buy Now
DISTI # 25LC256-I/P
EBV Elektronik EEPROM SerialSPI 256Kbit 32K x 8 33V5V 8Pin PDIP (Alt: 25LC256-I/P) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
LCSC 256Kbit 10MHz SPI DIP-8 EEPROM ROHS 10
  • 1 $2.3256
  • 10 $2.2735
  • 30 $2.2383
  • 100 $2.2030
$2.2030 / $2.3256 Buy Now
Vyrian Memory ICs 886
RFQ
Win Source Electronics IC EEPROM 256KBIT 10MHZ 8DIP 763
  • 21 $2.8154
  • 50 $2.3100
  • 78 $2.2379
  • 107 $2.1656
  • 138 $2.0935
  • 185 $1.8769
$1.8769 / $2.8154 Buy Now

Part Details for 25LC256-I/P

25LC256-I/P CAD Models

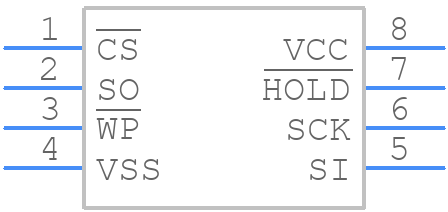

  • Part Symbol

    Part Symbol

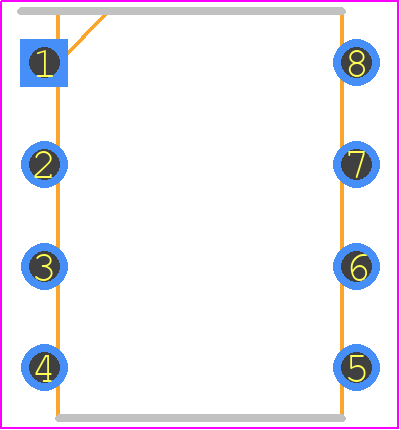

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

25LC256-I/P Part Data Attributes

Parametric Data
25LC256-I/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
25LC256-I/P Microchip Technology Inc 32K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DIP
Package Description 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.51
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Clock Frequency-Max (fCLK) 10 MHz
Data Retention Time-Min 200
Endurance 1000000 Write/Erase Cycles
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Length 9.271 mm
Memory Density 262144 bit
Memory IC Type EEPROM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 32768 words
Number of Words Code 32000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 32KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial SERIAL
Programming Voltage 2.5 V
Qualification Status Not Qualified
Reverse Pinout NO
Screening Level AEC-Q100
Seated Height-Max 5.334 mm
Serial Bus Type SPI
Standby Current-Max 0.000001 A
Supply Current-Max 0.006 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
Write Cycle Time-Max (tWC) 5 ms
Write Protection HARDWARE/SOFTWARE

Alternate Parts for 25LC256-I/P

This table gives cross-reference parts and alternative options found for 25LC256-I/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 25LC256-I/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
25LC256-E/PG Microchip Technology Inc Check for Price 32K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8 25LC256-I/P vs 25LC256-E/PG
Part Number Manufacturer Composite Price Description Compare
25LC256-I/SN Microchip Technology Inc $1.4997 32K X 8 SPI BUS SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8 25LC256-I/P vs 25LC256-I/SN
25LC256T-I/ST Microchip Technology Inc $1.6508 32K X 8 SPI BUS SERIAL EEPROM, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8 25LC256-I/P vs 25LC256T-I/ST
25LC256-I/MF Microchip Technology Inc $1.8890 32K X 8 SPI BUS SERIAL EEPROM, PDSO8, 6 X 5 MM, ROHS COMPLIANT, PLASTIC, DFN-8 25LC256-I/P vs 25LC256-I/MF
M95256-DW6TG/V STMicroelectronics Check for Price 32KX8 SPI BUS SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 25LC256-I/P vs M95256-DW6TG/V
M95256-DW3P/AB STMicroelectronics Check for Price SPI BUS SERIAL EEPROM 25LC256-I/P vs M95256-DW3P/AB
25LC256-E/STG Microchip Technology Inc Check for Price 32K X 8 SPI BUS SERIAL EEPROM, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8 25LC256-I/P vs 25LC256-E/STG
25LC256T-E/SNG Microchip Technology Inc Check for Price 32K X 8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8 25LC256-I/P vs 25LC256T-E/SNG
M95256-DW3G/V STMicroelectronics Check for Price 32KX8 SPI BUS SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 25LC256-I/P vs M95256-DW3G/V
25LC256T-I/STRVA Microchip Technology Inc Check for Price 256K 32K X 8 2.5V SER EE 25LC256-I/P vs 25LC256T-I/STRVA
25LC256-E/SNG Microchip Technology Inc Check for Price 32K X 8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, MS-012, SOIC-8 25LC256-I/P vs 25LC256-E/SNG

25LC256-I/P Related Parts

25LC256-I/P Frequently Asked Questions (FAQ)

  • The 25LC256-I/P has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.

  • To ensure data integrity, it is recommended to use the WP (Write Protect) pin to prevent accidental writes during power-down or power-up. Additionally, the device has built-in power-on reset and brown-out detection to prevent data corruption.

  • The recommended operating voltage range for the 25LC256-I/P is 2.5V to 5.5V. Operating the device outside of this range may affect its performance and reliability.

  • The 25LC256-I/P uses a page-based write architecture. Each page is 64 bytes, and the device can perform page writes and block writes. The device also has a built-in erase function to erase entire blocks or the entire device.

  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied to VCC, the device is in write-protect mode, and any attempt to write to the device will be ignored.
