2ST31A Information
2ST31A by STMicroelectronics is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for 2ST31A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC8086
|
Newark | Transistor, Npn, 60V, 3A, To-220Ab, |Stmicroelectronics 2ST31A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1428 |
|
$0.4410 / $1.4800 | Buy Now |
|
DISTI #
497-11083-5-ND
|
DigiKey | TRANS NPN 60V 3A TO-220 Min Qty: 1 Container: Tube |
441 Tube |
|
$0.3655 / $1.5700 | Buy Now |
|
DISTI #
511-2ST31A
|
Mouser Electronics | Bipolar Transistors - BJT Low voltage NPN Power Transistor RoHS: Compliant | 57 |
|
$0.3650 / $1.5700 | Buy Now |
|
|
Future Electronics | 2ST31A Series 60 V 3 A Flange Mount NPN Power Transistor - TO-220-3 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 50 Lead time: 20 Weeks Container: Tube | 0Tube |
|
$0.3550 / $0.3850 | Buy Now |
2ST31A CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
2ST31A Part Data Attributes
|
|
2ST31A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
2ST31A
STMicroelectronics

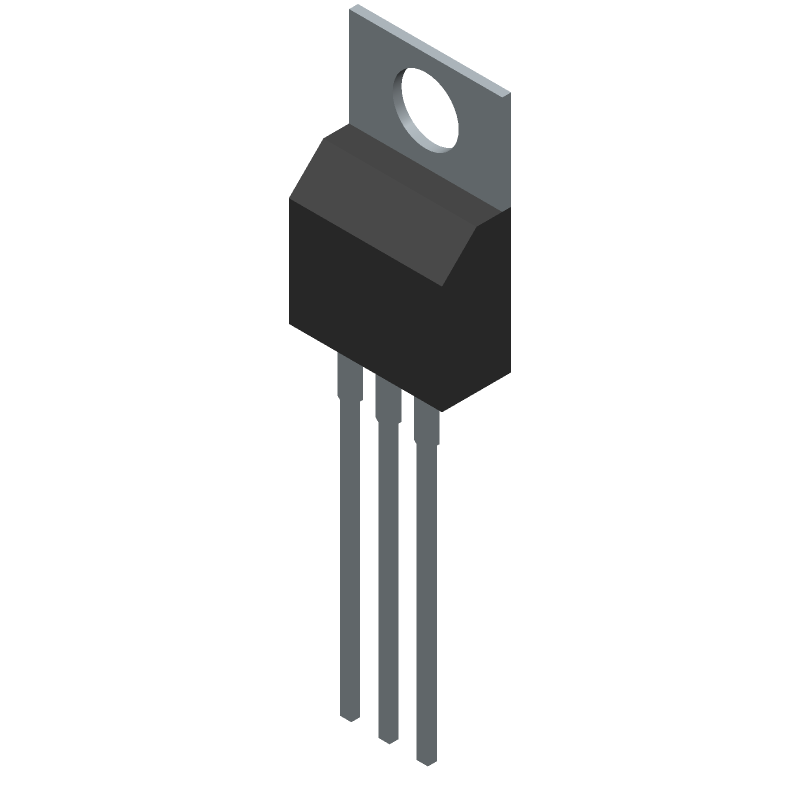

Power Bipolar Transistor, 3A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | To-220, 3 Pin | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 14 Weeks | |
| Case Connection | Collector | |
| Collector Current-Max (IC) | 3 A | |
| Collector-Emitter Voltage-Max | 60 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 25 | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Polarity/Channel Type | Npn | |
| Power Dissipation-Max (Abs) | 40 W | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon |
