39-29-9246 by: Molex

Rectangular Power Connector, 24 Contact(s), Male, Solder Terminal, Plug,

Part Details for 39-29-9246 by Molex

Results Overview of 39-29-9246 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Renewable Energy Telecommunications Automotive

39-29-9246 Information

39-29-9246 by Molex is a Power Connector.
Power Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
69192-460HLF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded vertical header, Through Hole, Double Row, 60 Positions, 2.54 mm (0.100in) Pitch.
68492-460HLF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Right Angled Header, Through Hole, Double Row, 60 Positions, 2.54 mm (0.100in)Pitch.
68492-462HLF Amphenol Communications Solutions BergStik®, Board to Board connector, Unshrouded Right Angled Header, Through Hole, Double Row, 62 Positions, 2.54 mm (0.100in)Pitch.

Price & Stock for 39-29-9246

Part # Distributor Description Stock Price Buy
DISTI # 28AC9189
Newark Minifitjrhdr Vt Dr W/Pgs Tin V-0 24Ckt Rohs Compliant: Yes |Molex 39-29-9246 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 1145
  • 1 $3.4200
  • 10 $3.1400
  • 25 $2.9500
  • 50 $2.7000
  • 100 $2.5200
  • 250 $2.2900
  • 500 $2.1300
  • 1,000 $1.8900
$1.8900 / $3.4200 Buy Now
DISTI # 01AH8347
Newark Wtb Conn, Header, 24Pos, 2Row, 4.2Mm, Connector Systems:Power, Pitch Spacing:4.2Mm, No. Of Rows:2Rows, No. Of Contacts:24Contacts, Contact Termination Type:Through Hole Straight, Product Range:Mini-Fit Jr. 5566 Series Rohs Compliant: Yes |Molex 39-29-9246 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 23
  • 1 $0.6030
  • 10 $0.6030
  • 25 $0.6030
  • 50 $0.6030
  • 100 $0.6030
  • 250 $0.6030
  • 500 $0.6030
  • 1,000 $0.6030
$0.6030 Buy Now
DISTI # 0039299246
Avnet Americas Pin Header, Natural, Power, Wire-to-Board, 4.2 mm, 2 Rows, 24 Contacts, Through Hole Straight - Trays (Alt: 0039299246) COO: Mexico RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Tray 1145
  • 1 $2.1285
  • 4,000 $1.7533
  • 10,000 $1.7444
  • 20,000 $1.7355
  • 50,000 $1.7266
$1.7266 / $2.1285 Buy Now
DISTI # 01AH8347
Avnet Americas Pin Header, Natural, Power, Wire-to-Board, 4.2 mm, 2 Rows, 24 Contacts, Through Hole Straight - Bulk (Alt: 01AH8347) COO: Mexico RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 0
  • 1 $3.3500
  • 10 $3.0800
  • 25 $2.8900
  • 50 $2.7000
  • 100 $2.5200
  • 250 $2.2900
  • 500 $2.1300
$2.1300 / $3.3500 Buy Now
DISTI # 538-39-29-9246
Mouser Electronics Headers & Wire Housings 24 CKT VERT HEADER RoHS: Compliant 1390
  • 1 $2.9500
  • 10 $2.6900
  • 25 $2.4300
  • 50 $2.3500
  • 100 $2.1400
  • 250 $2.1100
  • 500 $2.0500
  • 1,200 $2.0400
$2.0400 / $2.9500 Buy Now
DISTI # MOL39-29-9246
Heilind Electronics MINIFITJRHDR VT DR W/PGS TIN -0 24CKT Americas - 0 in Stock
  • 1,200 $2.0330
  • 3,600 $1.9517
$1.9517 / $2.0330 Buy Now
Onlinecomponents.com Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Mini-Fit Jr™ Tray COO: China RoHS: Compliant 0
  • 35 $1.9200
  • 200 $1.8900
  • 350 $1.8500
  • 650 $1.8200
  • 1,200 $1.7800
$1.7800 / $1.9200 Buy Now
Bristol Electronics   45
RFQ
Quest Components 24 CONTACT(S), MALE, POWER CONNECTOR, SOLDER 33
  • 1 $4.6800
  • 3 $3.1200
  • 9 $2.3400
$2.3400 / $4.6800 Buy Now
Quest Components 24 CONTACT(S), MALE, POWER CONNECTOR, SOLDER 4
  • 1 $3.0600
  • 3 $2.2950
$2.2950 / $3.0600 Buy Now
DISTI # 39-29-9246
TTI Headers & Wire Housings 24 CKT VERT HEADER RoHS: Compliant pbFree: Pb-Free Min Qty: 5 Package Multiple: 5 Container: Tray Americas - 1020
In Stock
  • 5 $2.1200
  • 10 $2.0900
  • 25 $2.0600
  • 50 $1.9400
  • 100 $1.9100
  • 200 $1.8800
  • 500 $1.8500
$1.8500 / $2.1200 Buy Now
Powell Electronics Connector Min Qty: 35 444
  • 35 $2.2900
  • 200 $2.2700
  • 350 $2.2100
  • 650 $2.1700
  • 1,200 $2.1300
$2.1300 / $2.2900 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 5
  • 1 $3.0800
  • 100 $2.3100
  • 1,000 $2.0000
$2.0000 / $3.0800 Buy Now

US Tariff Estimator: 39-29-9246 by Molex

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

39-29-9246
Molex
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 39-29-9246

39-29-9246 CAD Models

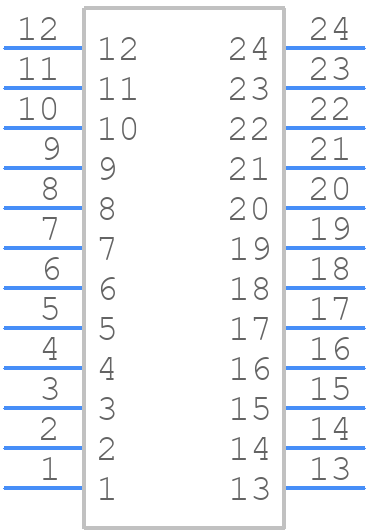

  • Part Symbol

    schematic symbol

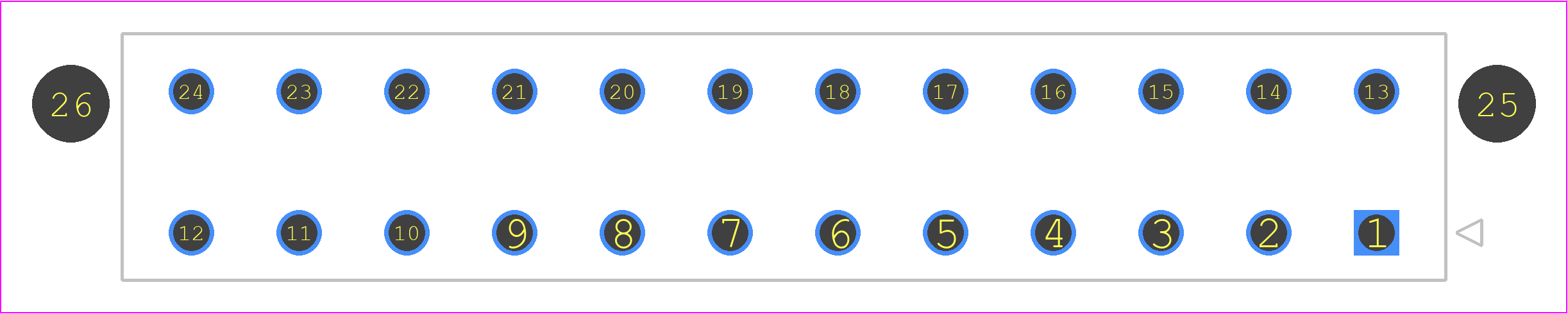

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

39-29-9246 Part Data Attributes

Parametric Data
39-29-9246 Molex
Buy Now Datasheet
Compare Parts:
39-29-9246 Molex Rectangular Power Connector, 24 Contact(s), Male, Solder Terminal, Plug,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Additional Feature Mini-Fit Jr.
Board Mounting Option Peg
Body Breadth 0.38 Inch
Body Depth 0.5 Inch
Body Length 2.03 Inch
Body/Shell Style Plug
Connector Type Rectangular Power Connector
Contact Arrangement S0p24
Contact Finish Mating Not Specified
Contact Finish Termination Tin (Sn)
Contact Gender Male
Contact Material Brass
Contact Resistance 10 MΩ
Contact Style Sq Pin-Skt
DIN Conformance No
Dielectric Withstanding Voltage 1500vac V
Durability 30 Cycles
Empty Shell No
Filter Feature No
IEC Conformance No
Insulation Resistance 1000000000 Ω
Insulator Color Natural
Insulator Material Polyamide66
JESD-609 Code e3
MIL Conformance No
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Polarized Lck
Mounting Option 2 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option General Purpose
Plating Thickness 35u Inch
Reference Standard Csa, Ul
Terminal Length 0.14 Inch
Termination Type Solder
Total Number of Contacts 24
UL Flammability Code 94V-0
