4N35 Information
4N35 by Texas Instruments is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for 4N35
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,3.5KV ISOLATION, 6 PIN DIP | 1856 |
|
$0.3470 / $0.8675 | Buy Now |
|
|
Quest Components | NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,3.5KV ISOLATION, 6 PIN DIP | 27 |
|
$0.1708 / $0.2049 | Buy Now |
US Tariff Estimator: 4N35 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 4N35
4N35 CAD Models
-

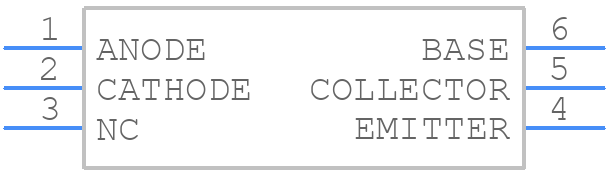

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
4N35 Part Data Attributes
|
|
4N35
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
4N35
Texas Instruments
Transistor Output Optocoupler, 1-Element, 3550V Isolation
|
| Pbfree Code | No | |
| Part Life Cycle Code | Obsolete | |
| Package Description | Plastic, Dip-6 | |
| HTS Code | 8541.40.80.00 | |
| Additional Feature | Ttl Compatible | |
| Coll-Emtr Bkdn Voltage-Min | 30 V | |
| Configuration | Single | |
| Current Transfer Ratio-Min | 100% | |
| Dark Current-Max | 50 Na | |
| Forward Current-Max | 0.06 A | |
| Forward Voltage-Max | 1.5 V | |
| Isolation Voltage-Max | 3550 V | |
| Mounting Feature | Through Hole Mount | |
| Number of Elements | 1 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | Transistor Output Optocoupler | |
| Power Dissipation-Max | 0.3 W | |
| Response Time-Max | 0.00001 S | |
| Surface Mount | No |
Alternate Parts for 4N35
This table gives cross-reference parts and alternative options found for 4N35. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 4N35, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCT2201 | Quality Technologies Corp | Check for Price | Transistor Output Optocoupler, 1-Element, 5300V Isolation | 4N35 vs MCT2201 |
| 4N35(TP4) | Toshiba America Electronic Components | Check for Price | Transistor Output Optocoupler, 1-Element, 2500V Isolation | 4N35 vs 4N35(TP4) |
| 4N35(TP1) | Toshiba America Electronic Components | Check for Price | Transistor Output Optocoupler, 1-Element, 2500V Isolation | 4N35 vs 4N35(TP1) |
| 4N35 | Siemens | Check for Price | Transistor Output Optocoupler, 1-Element, 5300V Isolation | 4N35 vs 4N35 |
| MCT5210 | Vishay Semiconductors | Check for Price | Transistor Output Optocoupler, 1-Element, 5300V Isolation | 4N35 vs MCT5210 |
| 4N35 | Agilent Technologies Inc | Check for Price | Transistor Output Optocoupler, 1-Element, 3550V Isolation | 4N35 vs 4N35 |
4N35 Frequently Asked Questions (FAQ)
-
The maximum voltage that can be applied to the input pins is 5V. Exceeding this voltage can damage the internal LED.
-
To ensure reliable operation at high temperatures, make sure to derate the current through the LED and the output transistor according to the temperature derating curves provided in the datasheet.
-
The 4N35 is not suitable for high-frequency applications due to its limited bandwidth (around 10 kHz). For high-frequency applications, consider using a faster optocoupler like the 6N137 or 10MBF.
-
The minimum current required to trigger the output transistor is around 1-2 mA, depending on the specific application and the desired output voltage.
-
The 4N35 has a maximum isolation voltage of 2500 Vrms, which is sufficient for many isolation applications. However, for higher isolation voltages, consider using a optocoupler with a higher isolation rating, such as the 4N36 or 4N37.
