5005920400 Information
5005920400 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 5005920400
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
900-5005920400-ND
|
DigiKey | CONN RCPT HSG 4POS 2.50MM Min Qty: 1 Lead time: 9 Weeks Container: Bulk |
25181 In Stock |
|
$0.0882 / $0.1500 | Buy Now |
|
DISTI #
5005920400
|
Avnet Americas | 2.5 WTW REC HSG SINGLE ROW 4CKT - Bulk (Alt: 5005920400) COO: Japan RoHS: Compliant Min Qty: 30000 Package Multiple: 6000 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0552 / $0.0749 | Buy Now |
|
DISTI #
MOL500592-0400
|
Heilind Electronics | 2.5 WtW Rec Hsg Single Row 4Ck | Americas - 0 in Stock |
|
$0.0591 / $0.0675 | Buy Now |
|
DISTI #
63264338
|
Verical | Conn Housing F 4 POS 2.5mm Crimp ST Cable Mount Natural Bag RoHS: Compliant Min Qty: 400 Package Multiple: 1 Date Code: 2201 | Americas - 30000 |
|
$0.1645 / $0.1959 | Buy Now |
|
DISTI #
64538036
|
Verical | Conn Housing F 4 POS 2.5mm Crimp ST Cable Mount Natural Bag RoHS: Compliant Min Qty: 1283 Package Multiple: 1 | Americas - 5731 |
|
$0.0538 / $0.0570 | Buy Now |
|
|
Quest Components | 24000 |
|
$0.1635 / $0.5450 | Buy Now | |
|
DISTI #
500592-0400
|
TTI | Headers & Wire Housings CP-2.5 RECEPT 2.5mm POS LOCK SR 4CKT RoHS: Compliant pbFree: Pb-Free Min Qty: 30000 Package Multiple: 1000 Container: Each | Americas - 0 |
|
$0.0610 / $0.0680 | Buy Now |
|
DISTI #
63264338
|
Verical | Conn Housing F 4 POS 2.5mm Crimp ST Cable Mount Natural Bag COO: Japan RoHS: Compliant Min Qty: 400 Package Multiple: 1 Date Code: 2201 | Americas - 30000 |
|
$0.1645 / $0.1959 | Buy Now |
|
DISTI #
64538036
|
Verical | Conn Housing F 4 POS 2.5mm Crimp ST Cable Mount Natural Bag COO: Japan RoHS: Compliant Min Qty: 1283 Package Multiple: 1 | Americas - 5731 |
|
$0.0538 / $0.0570 | Buy Now |
|
DISTI #
000000000005953308
|
Sager | Headers & Wire Housings CP-2.5 REC 01X04P Min Qty: 30000 | 0 |
|
$0.0578 / $0.0704 | Buy Now |
US Tariff Estimator: 5005920400 by Molex
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 5005920400
5005920400 CAD Models
-

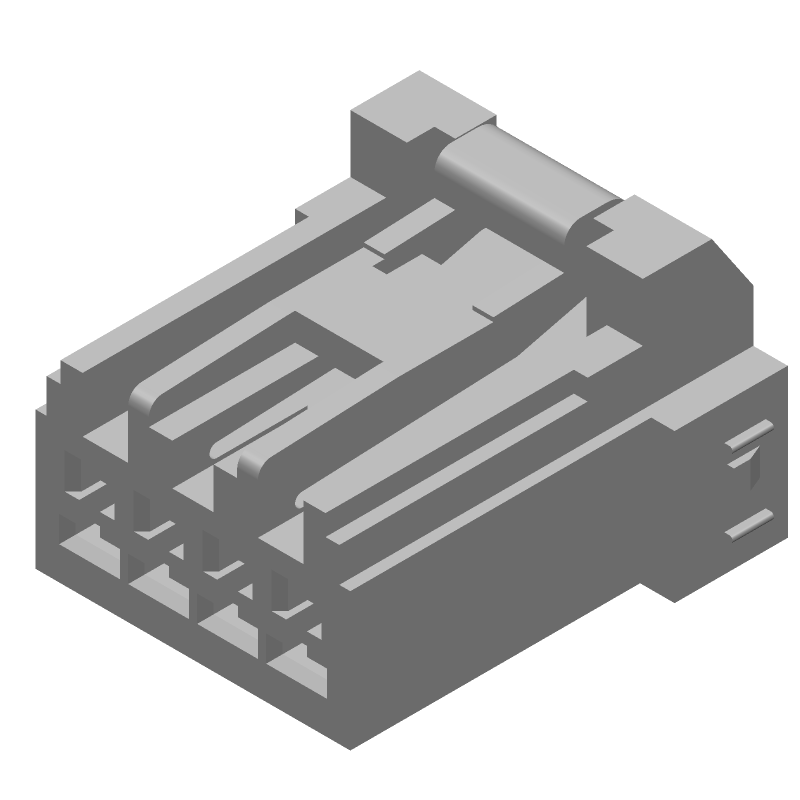

3D Model
