632722110112 Information
632722110112 by Wurth Elektronik is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 632722110112
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82AH2866
|
Newark | Usb Conn, 3.1 Type C, Rcpt, 24Pos, Smt Rohs Compliant: Yes |Wurth Elektronik 632722110112 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 720 |
|
$4.0500 / $5.7700 | Buy Now |
|
DISTI #
66AH2640
|
Newark | Usb Conn, 3.1 Type C, Rcpt, 24Pos, Smt Rohs Compliant: Yes |Wurth Elektronik 632722110112 RoHS: Compliant Min Qty: 450 Package Multiple: 1 Date Code: 1 Container: Tape & Reel | 0 |
|
$3.8600 / $3.9900 | Buy Now |
|
DISTI #
732-13724-1-ND
|
DigiKey | WR-COM_USB 3.1_TYPE C_VERTICAL_S Min Qty: 1 Lead time: 15 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
1668 In Stock |
|
$2.8539 / $5.1400 | Buy Now |
|
DISTI #
710-632722110112
|
Mouser Electronics | USB Connectors WR-COM SMT Vertical Black RoHS: Compliant | 2706 |
|
$3.1700 / $5.1400 | Buy Now |
|
DISTI #
74945303
|
RS | USB 3.1 TYPE C, RECEPTACLE VERTICAL SMT 1.0MM, 24 PINS, 5A, 20 VDC Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk | 0 |
|
$2.9700 / $3.2300 | RFQ |
|
DISTI #
74416434
|
RS | USB 3.1 TYPE C, RECEPTACLE VERTICAL SMT 1.0MM, 24 PINS, 5A, 20 VDC Min Qty: 1 Package Multiple: 450 Lead time: 4 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1,647.0000 / $2,290.5000 | RFQ |
|
|
Greenchips | Date Code: 22+/CN | 2700 |
|
RFQ | |
|
|
Greenchips | Date Code: 21+/CN | 1629 |
|
RFQ |
US Tariff Estimator: 632722110112 by Wurth Elektronik
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 632722110112
632722110112 CAD Models
-

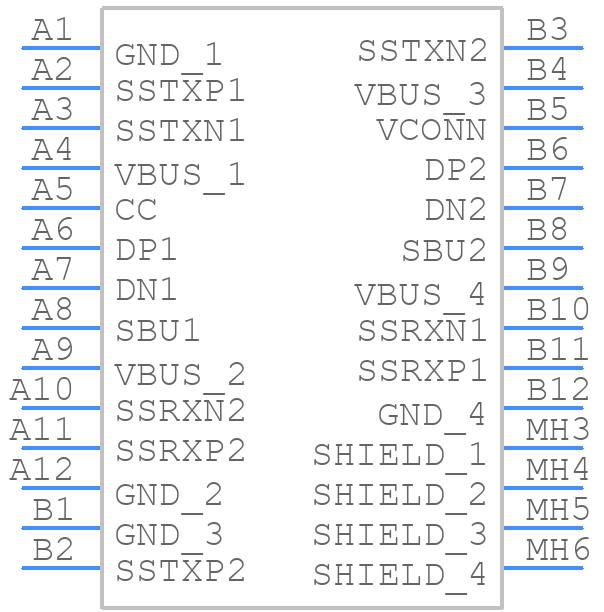

Part Symbol
-

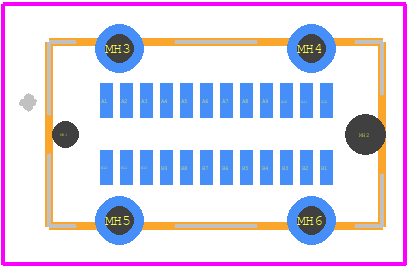

Footprint
-
