6N137 by Everlight Electronics Co Ltd is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for 6N137
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
6N137
|
Avnet Americas | Optocoupler, Digital Output, 1 Channel, 2.5 kV, 10 Mbps, DIP, 8 Pins - Rail/Tube (Alt: 6N137) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 135 Package Multiple: 45 Lead time: 14 Weeks, 0 Days Container: Tube | 0 |
|
$0.5116 / $0.5439 | Buy Now |
|
DISTI #
6N137-EVE
|
TME | Optocoupler, THT, Ch: 1, OUT: logic, 5kV, 10Mbps, DIP8, 6N137 Min Qty: 1 | 808 |
|
$0.3970 / $0.8500 | Buy Now |
|
DISTI #
6N137
|
IBS Electronics | EVERLIGHT 6N137 DIGITAL OUTPUT OPTOCOUPLER, 1 CHANNEL, DIP, 8 PINS, 5 KV, 10 MBPS Min Qty: 20 Package Multiple: 1 | 53 |
|
$0.4690 / $0.7560 | Buy Now |
|
DISTI #
C180000001
|
EBV Elektronik | Optocoupler Digital Output 1 Channel 25 kV 10 Mbps DIP 8 Pins (Alt: C180000001) RoHS: Compliant Min Qty: 45 Package Multiple: 45 Lead time: 21 Weeks, 0 Days | EBV - 15210 |
|
Buy Now | |
|
|
LCSC | 50mA 10Mbps 1.4V 4.5V5.5V DC DIP-8 Logic Output Optoisolators RoHS | 70920 |
|
$0.1318 / $0.2681 | Buy Now |
|
|
New Advantage Corporation | Single Channel 7 V 5000 Vrms 10 Mbit Logic Gate Photocoupler - DIP-8 RoHS: Compliant Min Qty: 1 Package Multiple: 45 | 12150 |
|
$1.3600 / $1.4800 | Buy Now |
US Tariff Estimator: 6N137 by Everlight Electronics Co Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for 6N137
6N137 CAD Models
-

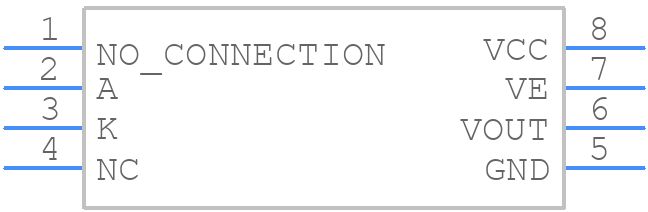

Part Symbol
-

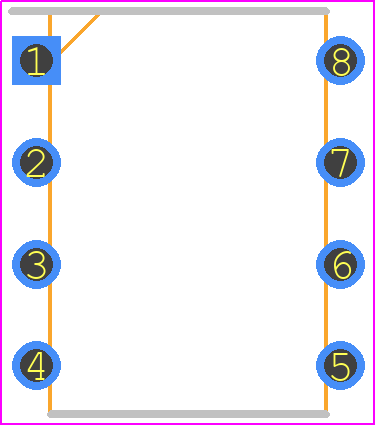

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
6N137 Part Data Attributes
|
|
6N137
Everlight Electronics Co Ltd
Buy Now
Datasheet
|
Compare Parts:
6N137
Everlight Electronics Co Ltd
Logic IC Output Optocoupler, 1-Element, 5000V Isolation, 10MBps, ROHS COMPLIANT, DIP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dip-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.49.80.00 | |
| Factory Lead Time | 14 Weeks | |
| Additional Feature | Cmos Compatible, Ul Approved | |
| Configuration | Single | |
| Data Rate-Nom | 10 Mbps | |
| Forward Current-Max | 0.05 A | |
| Isolation Voltage-Max | 5000 V | |
| Mounting Feature | Through Hole Mount | |
| Number of Elements | 1 | |
| Number of Functions | 1 | |
| On-State Current-Max | 0.05 A | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | Logic Ic Output Optocoupler | |
| Response Time-Nom | 4e-8 Ns | |
| Shape | Rectangular | |
| Surface Mount | No |
Alternate Parts for 6N137
This table gives cross-reference parts and alternative options found for 6N137. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 6N137, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLP552 | Toshiba America Electronic Components | Check for Price | Optocoupler - IC Output, 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER, DIP-8 | 6N137 vs TLP552 |
| 6N137 | Texas Instruments | Check for Price | 8 Pin 2-Channel Optocoupler 8-PDIP | 6N137 vs 6N137 |
| 6N137 | Quality Technologies Corp | Check for Price | Logic IC Output Optocoupler, | 6N137 vs 6N137 |
| 6N137-X006 | Vishay Semiconductors | Check for Price | 6N137, VO2601, VO2611, VO2630, VO2631, VO4661 - High Speed Optocoupler, Single and Dual, 10 MBd | 6N137 vs 6N137-X006 |
| 6N137 | Isocom Components | Check for Price | Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 10MBps | 6N137 vs 6N137 |
| 6N137 | Sharp Corp | Check for Price | Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 10MBps, DIP-8 | 6N137 vs 6N137 |
| 6N137 | Renesas Electronics Corporation | Check for Price | 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER, PLASTIC, DIP-8 | 6N137 vs 6N137 |
| PS2007B | NEC Electronics America Inc | Check for Price | Logic IC Output Optocoupler, 1-Element, 3000V Isolation, PLASTIC, DIP-8 | 6N137 vs PS2007B |
| 6N137 | Hewlett Packard Co | Check for Price | Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 10MBps, 0.300 INCH, DIP-8 | 6N137 vs 6N137 |
6N137 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 6N137 is -40°C to 100°C.
-
To ensure proper biasing, the 6N137 requires a minimum of 1.4V forward voltage on the LED and a minimum of 5V on the output transistor collector.
-
The maximum allowable current through the LED is 50mA. Exceeding this current may reduce the lifespan of the device.
-
While the 6N137 can be used for high-frequency applications, its bandwidth is limited to around 10kHz. For higher frequencies, consider using a faster optocoupler like the 6N138.
-
