Part Details for 74HCT393D,653 by Nexperia
Results Overview of 74HCT393D,653 by Nexperia
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (7 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Space Technology
Aerospace and Defense
Automotive
74HCT393D,653 Information
74HCT393D,653 by Nexperia is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74HCT393D,653
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-74HCT393D,653TR-ND
|
DigiKey | IC BINARY COUNTER DL 4BIT 14SO Min Qty: 2500 Container: Tape & Reel |
2557 Tape & Reel |
|
$0.2088 / $0.2260 | Buy Now |
|
DISTI #
85961142
|
Verical | Counter/Divider Dual 4-Bit Binary UP 14-Pin SO T/R RoHS: Compliant Min Qty: 769 Package Multiple: 1 Date Code: 1801 | Americas - 2500 |
|
$0.3364 / $0.4883 | Buy Now |
|
DISTI #
771-74HCT393D-T
|
Mouser Electronics | Counter ICs 74HCT393D/SOT108/SO14 RoHS: Compliant | 2565 |
|
$0.2040 / $0.5100 | Buy Now |
|
|
Rochester Electronics | Counters and Frequency Divider Binary Counter 2 Element 4 Bits 5V 14-SOIC T/R RoHS: Compliant Status: Active Min Qty: 1 | 2500 |
|
$0.2691 / $0.4340 | Buy Now |
|
DISTI #
85961142
|
Verical | Counter/Divider Dual 4-Bit Binary UP 14-Pin SO T/R RoHS: Compliant Min Qty: 769 Package Multiple: 1 Date Code: 1801 | Americas - 2500 |
|
$0.3364 / $0.4883 | Buy Now |
|
DISTI #
85961142
|
Verical | Counter/Divider Dual 4-Bit Binary UP 14-Pin SO T/R RoHS: Compliant Min Qty: 769 Package Multiple: 1 Date Code: 1801 | Americas - 2500 |
|
$0.3364 / $0.4883 | Buy Now |
|
DISTI #
74HCT393D.653
|
TME | IC: digital, 4bit,binary counter, CMOS,TTL, SMD, SO14, HCT Min Qty: 1 | 466 |
|
$0.4090 / $0.6000 | Buy Now |
|
|
Chip Stock | Counter, Binary Ripple, 74HCT, 53 MHz, Max Count 15, 4.5 V to 5.5 V, 14 Pins, SOIC | 82000 |
|
RFQ | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 2500 | 5000 |
|
$0.5727 / $0.6300 | Buy Now |
|
|
Unikey Electronic Pte Ltd | 4.5V 5.5V SO-14 SMD, Adhesive Mount, 1.45mm H Min Qty: 2500 Container: Cut Tape | 5000 |
|
$0.2085 / $0.2406 | Buy Now |
US Tariff Estimator: 74HCT393D,653 by Nexperia
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
74HCT393D,653 CAD Models
-
Part Symbol
-
Footprint
-

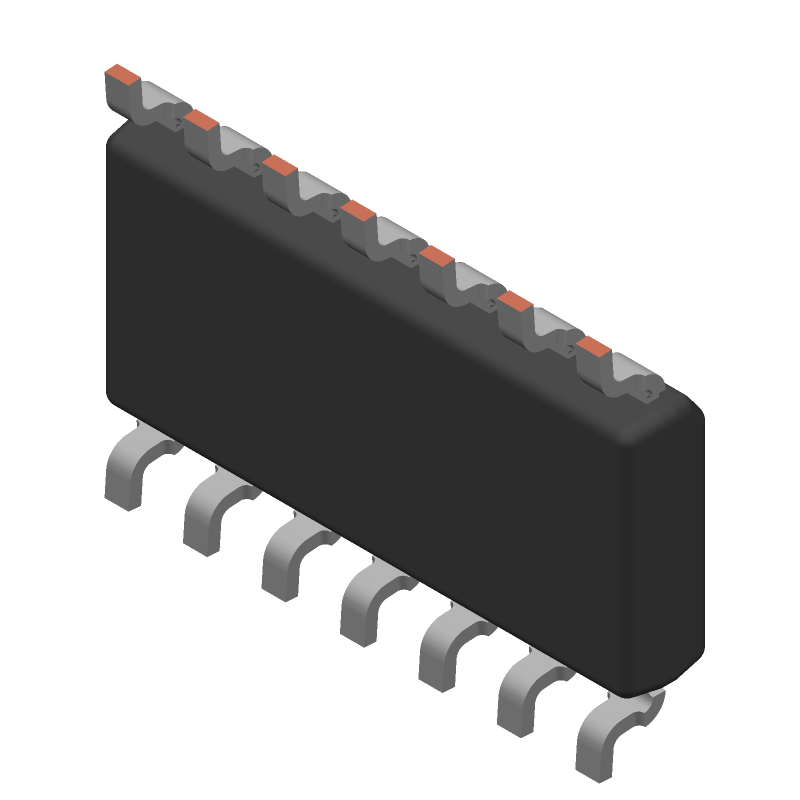

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
74HCT393D,653 Part Data Attributes
|
|
74HCT393D,653
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74HCT393D,653
Nexperia
Binary Counter, HCT Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO14
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | 3.90 Mm, Plastic, Ms-012, Sot-108-1, Sop-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | SOT108-1 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1993-01-01 | |
| Count Direction | Up | |
| Family | Hct | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Load/Preset Input | Yes | |
| Logic IC Type | Binary Counter | |
| Max Frequency@Nom-Sup | 18000000 Hz | |
| Max I(ol) | 0.0052 A | |
| Mode of Operation | Asynchronous | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr, 13 Inch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 50 Ma | |
| Prop. Delay@Nom-Sup | 38 Ns | |
| Propagation Delay (tpd) | 38 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | Negative Edge | |
| Width | 3.9 Mm | |
| fmax-Min | 18 Mhz |
